  3. Bending die for FLEX 22/FLEX 22V

Bending die for FLEX 22/FLEX 22V

https://tinseltools.com/web/image/product.template/298/image_1920?unique=ad6d548

0.00 € 0.0 EUR 0.00 € VAT Included

Price on request

  • Former material
  • Diameter
  • Bending radius

This combination does not exist.

Contact Us


Tooling for FLEX 22 and FLEX 22V

Bending Formers

CBC logo

3D – 4D – Parallel Bends – Gas Pipes



Bending formers for the FLEX 22 and FLEX 22VAll CBC formers for the FLEX 22Matching counterformers, machines and accessoriesManufacturer information

Bending formers for the FLEX 22 and FLEX 22V

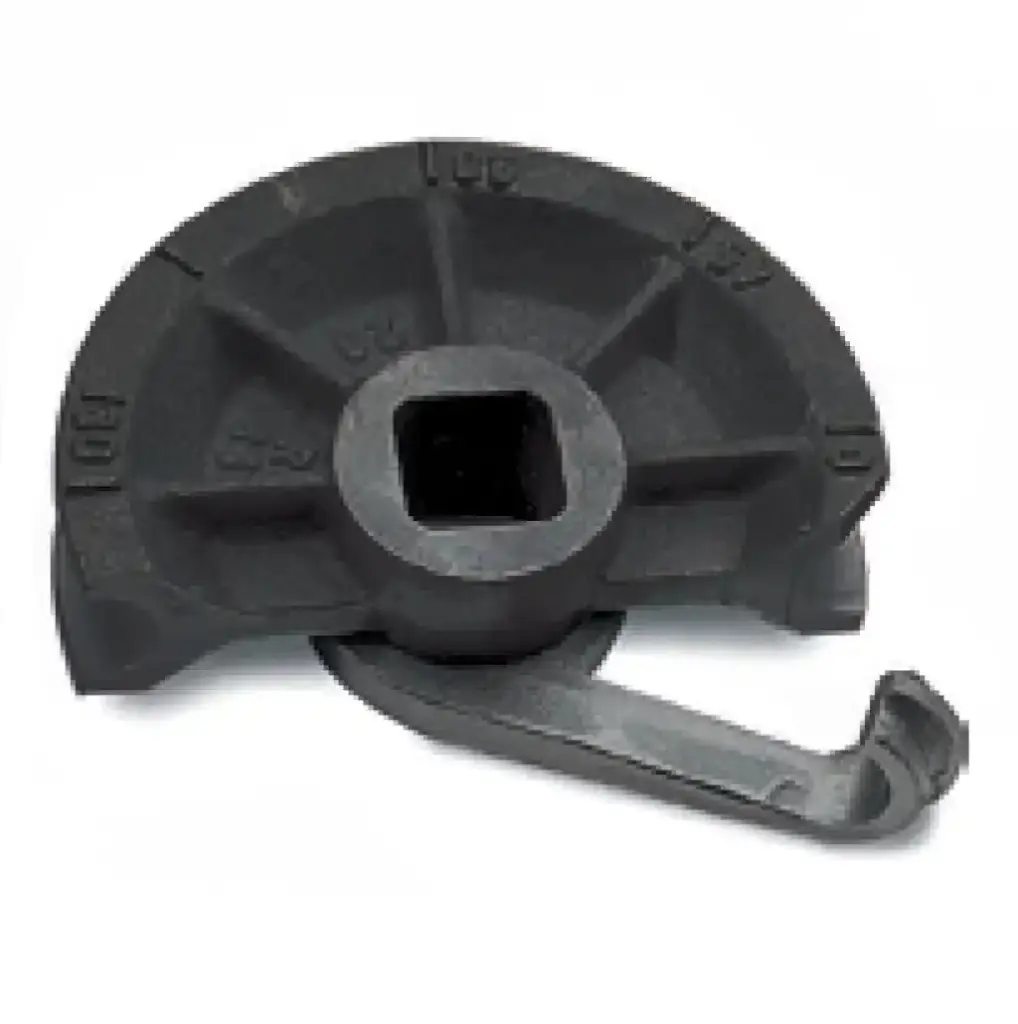

The standard FLEX 22 formers are made of a durable aluminum alloy and come with a steel hook. According to CBC, their bending radius is approximately three times the pipe diameter, which is ideal. They are available in sizes ranging from Ø 6 to 30 mm, as well as in real inches from 1/4″ to 1 1/8″.

For larger radii, there are 4D formers from Ø 12 to 32 mm, including Ø 32 mm for multilayer pipes, as well as special formers for parallel bends from Ø 10 to 22 mm with radii of 58 to 108 mm. Gas pipes from 1/4 to 3/4" are bent with cast iron formers.

The UNI 22 manual uses the same formers. Select the material, diameter, and radius. The table shows the code and the exact radius of each former.

Technical Data

Standard formersaluminium with steel hook, about 3 x D
DiametersØ 6–32 mm, 1/4″–1 1/8″, 1/4–3/4 GAS
Suitable forFLEX 22, FLEX 22V, UNI 22

All CBC formers for the FLEX 22

VersionArticle no.RadiusType
Ø 6 mm 3D140116.130 mm / 1.18 inaluminium, 3D
Ø 8 mm 3D140117.130 mm / 1.18 inaluminium, 3D
Ø 10 mm 3D140091.130 mm / 1.18 inaluminium, 3D
Ø 12 mm 3D140092.136 mm / 1.42 inaluminium, 3D
Ø 14 mm 3D140093.142 mm / 1.65 inaluminium, 3D
Ø 15 mm 3D140094.145 mm / 1.77 inaluminium, 3D
Ø 16 mm 3D140095.148 mm / 1.89 inaluminium, 3D
Ø 17 mm 3D140096.151 mm / 2.01 inaluminium, 3D
Ø 18 mm 3D140097.154 mm / 2.13 inaluminium, 3D
Ø 20 mm 3D140098.160 mm / 2.36 inaluminium, 3D
Ø 22 mm 3D140099.166 mm / 2.6 inaluminium, 3D
Ø 24 mm 3D140106.172 mm / 2.83 inaluminium, 3D
Ø 25 mm 3D140107.171 mm / 2.8 inaluminium, 3D
Ø 28 mm 3D140109.184 mm / 3.31 inaluminium, 3D
Ø 30 mm 3D140110.184 mm / 3.31 inaluminium, 3D
1/4″ 3D140128.130 mm / 1.18 inaluminium, 3D
5/16″ 3D140129.130 mm / 1.18 inaluminium, 3D
3/8″ 3D140121.130 mm / 1.18 inaluminium, 3D
1/2″ 3D140122.136 mm / 1.42 inaluminium, 3D
5/8″ 3D140123.148 mm / 1.89 inaluminium, 3D
3/4″ 3D140124.154 mm / 2.13 inaluminium, 3D
7/8″ 3D140125.166 mm / 2.6 inaluminium, 3D
1″ 3D140126.171 mm / 2.8 inaluminium, 3D
1″1/8 3D140127.184 mm / 3.31 inaluminium, 3D
Ø 12 mm 4D140151.148 mm / 1.89 inaluminium, 4D
Ø 14 mm 4D140150.156 mm / 2.2 inaluminium, 4D
Ø 15 mm 4D140149.160 mm / 2.36 inaluminium, 4D
Ø 16 mm 4D140148.164 mm / 2.52 inaluminium, 4D
Ø 18 mm 4D140147.172 mm / 2.83 inaluminium, 4D
Ø 22 mm 4D140146.188 mm / 3.46 inaluminium, 4D
Ø 26 mm 4D140152.1112 mm / 4.41 inaluminium, 4D
Ø 28 mm 4D140145.1112 mm / 4.41 inaluminium, 4D
Ø 32 mm 4D multilayer0009874Daluminium, 4D, multilayer pipe
Ø 10 mm parallel140135.158 mm / 2.28 inaluminium, parallel bends
Ø 12 mm parallel140130.165 mm / 2.56 inaluminium, parallel bends
Ø 14 mm parallel140131.173 mm / 2.87 inaluminium, parallel bends
Ø 16 mm parallel140132.182 mm / 3.23 inaluminium, parallel bends
Ø 18 mm parallel140133.190 mm / 3.54 inaluminium, parallel bends
Ø 22 mm parallel140134.1108 mm / 4.25 inaluminium, parallel bends
1/4 GAS22035048 mm / 1.89 incast iron, gas pipes
3/8 GAS22035153.5 mm / 2.11 incast iron, gas pipes
1/2 GAS22035255.5 mm / 2.19 incast iron, gas pipes
3/4 GAS22035371 mm / 2.8 incast iron, gas pipes
