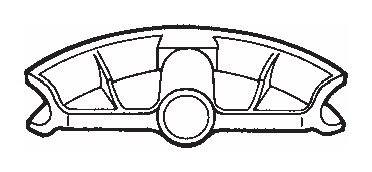

Forms and pressure pads for the N. 78 to GME 600
These bending forms and pressure pads belong to the hydraulic pipe benders with hand pump N. 78 to GM 600 and to the electro-hydraulic models M116 to GME 600. The machines are supplied with the forms for their range; here you can order single forms and pads as replacements or additions.
Forms cover gas pipes from 3/8″ to 3″, pressure pads the sizes from 2″1/2 to 6″. The model determines which sizes a machine bends: the N. 78 and M116 work up to 1″1/2, the GM 600 and GME 600 up to 6″ with pressure pads.
Technical Data
| Pipe type | gas pipes |
|---|---|
| Bending forms | 3/8″–3″ |
| Pressure pads | 2″1/2–6″ |
| Suitable for | N. 78, N. 30, N. 32, GM 300, GM 400, GM 500, GM 600, M116, M116B, M60, M60B, M64, GME 300, GME 400, GME 500, GME 600 |
Bending forms 3/8″ to 3″ for gas pipes
| Version | Article no. | Pipe Ø inside × outside (mm) | Bending radius | Weight |
|---|---|---|---|---|
| Bending form 3/8″ | CMR 35 | 12 × 17 | 45 mm / 1.77 in | 0.7 kg / 1.5 lb |
| Bending form 1/2″ | CMR 36 | 15 × 21 | 55 mm / 2.17 in | 1 kg / 2.2 lb |
| Bending form 3/4″ | CMR 37 | 20 × 27 | 70 mm / 2.76 in | 1.4 kg / 3.1 lb |
| Bending form 1″ | CMR 38 | 26 × 34 | 95 mm / 3.74 in | 1.8 kg / 4 lb |
| Bending form 1″1/4 | CMR 39 | 33 × 42 | 137 mm / 5.39 in | 3.2 kg / 7.1 lb |
| Bending form 1″1/2 | CMR 40 | 40 × 49 | 150 mm / 5.91 in | 3.5 kg / 7.7 lb |
| Bending form 2″ | CMR 41 | 50 × 60 | 220 mm / 8.66 in | 6.4 kg / 14.1 lb |
| Bending form 2″1/2 | CMR 42 | 66 × 76 | 340 mm / 13.39 in | 16.1 kg / 35.5 lb |
| Bending form 3″ | CMR 43 | 80 × 90 | 530 mm / 20.87 in | 29.7 kg / 65.5 lb |
Pressure pads 2″1/2 to 6″
| Version | Article no. | Pipe Ø inside × outside (mm) | Bending radius | Weight |
|---|---|---|---|---|
| Pressure pad 2″1/2 | CMR 44 | 66 × 76 | – | – |
| Pressure pad 3″ | CMR 45 | 80 × 90 | – | – |
| Pressure pad 3″1/2 | CMR 46 | 90 × 102 | Ø E × 18 | 21.2 kg / 46.7 lb |
| Pressure pad 4″ | CMR 47 | 102 × 114 | Ø E × 18 | 22.4 kg / 49.4 lb |
| Pressure pad 5″ | CMR 48 | 128 × 141 | Ø E × 18 | 23.8 kg / 52.5 lb |
| Pressure pad 6″ | CMR 49 | 154 × 168 | Ø E × 18 | 24.1 kg / 53.1 lb |
The GM 400 to GM 600 and GME 400 to GME 600 are supplied with the pressure pads from 3″1/2. Radius as stated by the manufacturer; for the 2″1/2 and 3″ pads, the price list gives no radius or weight.
Matching pipe benders
The forms and pressure pads fit:
