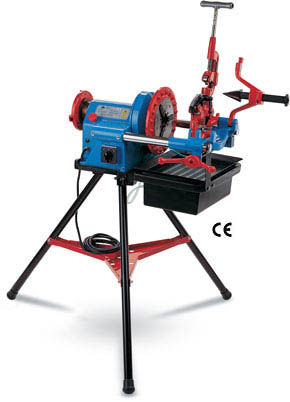

The CBC 220 at a glance
The CBC 220 threads, cuts, and deburrs metal pipes ranging from 1/4″ to 2″ in diameter. It stands on a folding stand, and an oil tray collects the lubricant. With the Mod. 97 adapter, it can also cut threads up to 4".
A 1.5 kW single-phase induction motor (230 V, 50 Hz, 11 A, 2,800 RPM) drives the self-opening die head at 38 RPM. A built-in gear pump supplies oil to the chasers, the tool carriage is fed by a handwheel, and an emergency stop button with a manual reset stops the machine.
CBC delivers the 220 with a die head for 1/8" to 2", a pipe cutter for 1/8" to 2", a deburrer for 3/8" to 2", the folding stand, an oil tray, two one-liter cans of threading oil, and BSPT chasers for 1/2"–3/4" and 1"–2". The machine measures 1100 × 1100 × 1200 mm and weighs 55 kg with the stand.
Technical Data
| Pipe range | 1/4″ to 2″; up to 4″ with adapter Mod. 97 |
|---|---|
| Motor | single-phase induction motor 230 V / 50 Hz / 1.5 kW / 11 A, 2800 rpm |
| Die head speed | 38 rpm |
| Chaser lubrication | built-in gear pump |
| Dimensions with stand (L × W × H) | 1,100 × 1,100 × 1,200 mm / 43.31 × 43.31 × 47.24 in |
| Weight | 55 kg / 121.3 lb |
| Included | self-opening die head 1/8″–2″, pipe cutter, deburrer, folding stand, oil tray, 2 × 1 l threading oil, BSPT dies 1/2″–2″ |
| Optional | dies BSPP, NPT, BSW, MA, HSS and left-hand; manual opening left-hand die head |
Threading capacity of the CBC 220
| Thread | Min. Ø | Max. Ø |
|---|---|---|
| Gas tapered (BSPT) | 1/4″ | 2″ |
| Gas cylindrical (BSPP) | 1/4″ | 2″ |
| American tapered (NPT) | 1/4″ | 2″ |
| Whitworth (BSW) | 5/16″ | 2″ |
| Metric (MA) | 6 mm | 45 mm |
Standard version of the CBC 220
| Version | Article no. |
|---|---|
| 220, 230 V | 9350255 |
Accessories for the CBC 220
Matching accessories:
Manufacturer information
Manufacturer details in accordance with the EU General Product Safety Regulation (EU) 2023/988:
| Manufacturer | C.B.C. S.r.l. |
|---|---|
| Postal address | Via L. Einaudi, 3, 42016 Guastalla (RE), Italy |
