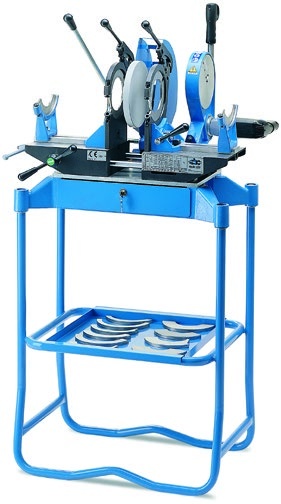

The CBC BABY 160 at a glance
The BABY 160 butt welds pipes and fittings made of PB, PE, PP, and PVDF for drainage and sewer lines. The maximum pipe size depends on the pressure rating: up to PN 6, the machine welds pipes from 40 to 160 mm in diameter; up to PN 10, it welds pipes up to 125 mm in diameter; and up to PN 16, it welds pipes up to 110 mm in diameter.
A PS 200 TR heating plate with 800 W and double insulation provides the heat, adjustable up to 300 °C. Before welding, a mill faces the pipe ends. Its 400-watt motor runs at variable speeds from 0 to 300 rpm. The plate and mill travel on the same chrome-plated steel guide with ball bushings.
Quick-closing steel clamps with centrally snapping, interchangeable segments hold pipes, sockets, and branches. Their support swivels in 15° increments for angled joints of up to 30°. A rack with a handwheel moves the carriage and loads the pressure spring. CBC delivers the machine on a tubular frame with an accessory drawer. It also includes segments for pipes ranging from 40 to 160 mm in diameter, as well as a metal case for storing them.
Technical Data
| Pipe materials | PB, PE, PP, PVDF |
|---|---|
| Welding range | Ø 40–160 mm (up to PN 6) |
| Heating plate | PS 200 TR, 800 W, adjustable up to 300 °C |
| Facing mill | 400 W, 0–300 rpm |
| Clamps | steel, quick-closing, swivelling in 15° steps (max. 30°) |
| Power supply | 230 V / 50 Hz |
| Dimensions | 700 × 600 × 1,200 mm / 27.56 × 23.62 × 47.24 in |
| Weight | 60 kg / 132.3 lb |
| Included | tubular frame with accessory drawer, segments Ø 40–160 mm in a metal case |
Welding capacity of the BABY 160 by pressure rating
| Pressure rating | Min. Ø | Max. Ø |
|---|---|---|
| PN 2.5–6 | 40 mm / 1.57 in | 160 mm / 6.3 in |
| PN 10 | 40 mm / 1.57 in | 125 mm / 4.92 in |
| PN 16 | 40 mm / 1.57 in | 110 mm / 4.33 in |
PN = nominal operating pressure at 20 °C for fluids.
Standard version of the CBC BABY 160
| Version | Article no. |
|---|---|
| BABY 160, 230 V | 9750030 |
Accessories for the BABY 160
Matching accessories:
