  2. CBC P/22A - Portable mechanical pipe bender

CBC P/22A - Portable mechanical pipe bender

https://tinseltools.com/web/image/product.template/255/image_1920?unique=43181fc

Delivery Time: 5 -15 working days
 The delivery time may vary outside the EU.
For orders of more than 10 items, delivery times may be extended.

287.50 € 287.5 EUR 287.50 € VAT Included

230.00 € VAT Included

Price on request

  • Bending forms incl.

This combination does not exist.

Contact Us


Mechanical

Pipe Bender

P22/A

CBC Logo

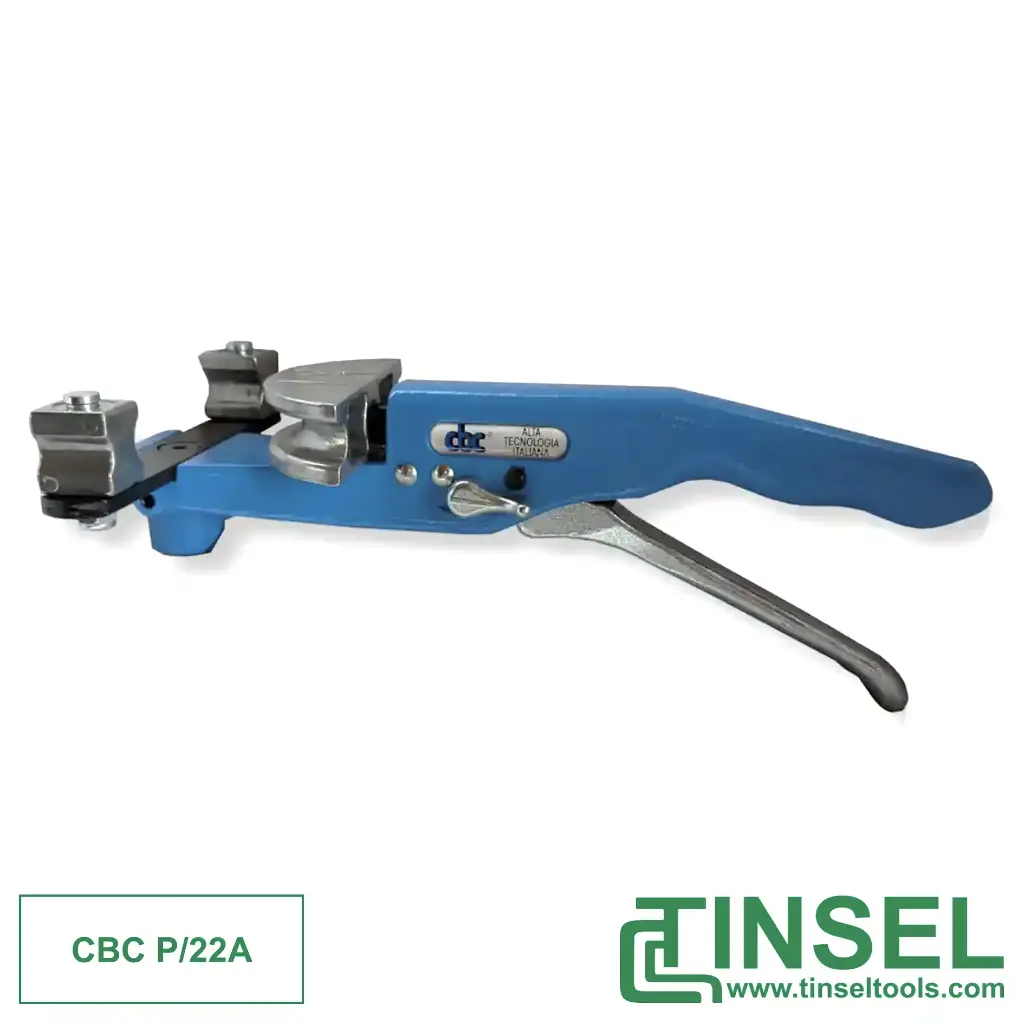

Hand-operated - Mechanical - Versatile


Robust


Light metal housing,
high-strength die-cast block (1,15 kg / 2,6 lb)

High quality


Die-cast brass operating lever
and die-cast aluminum formers

Efficient


Steel counterformers with

die-cast aluminum side parts

for quick coupling

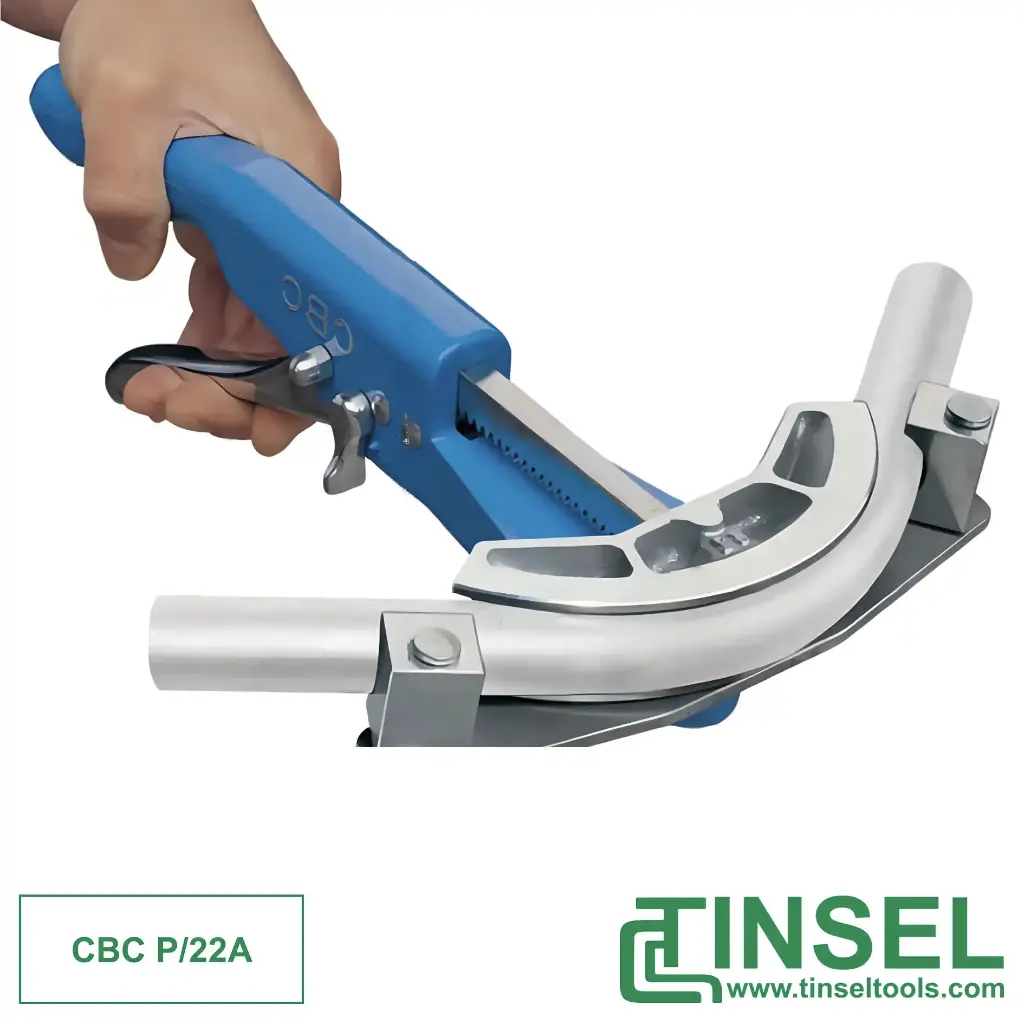

CBC P/22A is a compact, hand-operated hydraulic pipe bender for mobile use: Its corrosion-resistant housing made of die-cast aluminum and stainless steel houses a double hydraulic circuit, so that the pump weighs only 1.15 kg despite its high performance. The extra-long piston stroke enables effortless bending of soft-annealed copper pipes up to Ø 22 mm (1.5 mm wall thickness) and double-coated aluminum multilayer pipes up to Ø 32 mm (3 mm wall thickness), while the continuously adjustable lever allows ergonomic working tailored to the size of the user's hand.

High-precision bending dies made of die-cast aluminum and robust steel counter dies with lateral quick couplings ensure backlash-free radius changes without time-consuming screwing. The bender comes as a fully equipped case set with several molds and counter molds – and is therefore immediately ready for use on construction sites, in air conditioning and plumbing installations, or in industrial maintenance.

Mobility, precision, and durability come together in the P/22A to create a powerful tool that masters any bending task in no time at all.


Technical Specifications

Bending capacitiesBending radiiScope of deliveryTotal weightAccessoriesVariants

Bending capacities

Double-coated aluminum pipe (type Mepla, Alupex and similar)

Diameter up to 32 mm

Wall thickness up to 3 mm


Annealed copper tubes

Diameter up to 22 mm

Wall thickness up to 1,5 mm​


Bending radii

Scroll to the right to view more bending radii.

Ø = mm 5 6 1/4"
(6,35)		 5/16"
(7,94)		 8 3/8"
(9,52)		 10 12 1/2"
(12,70)		 14 15 5/8"
(15,88)		 16 17 17 18 3/4"
(19,05)		 20 22 7/8"
(22,22)		 24 26* 32*
R = mm 31 31 31 31 31 31 31 34 34 41 48 49 49 51 64 72 80 80 88 88 90 95 114

* Double-coated aluminum pipe (type Mepla, Alupex and similar)

Scope of delivery

Bending form

The scope of delivery includes several precisely manufactured bending dies made from high-quality die-cast aluminum. These different bending dies enable flexible and precise bending of pipes in different diameters, so that you always have the right tool for every application to hand. The fittings are particularly durable and ensure burr-free, repeatable bending results for both soft-annealed copper pipes and multi-layer aluminum composite pipes. This means you are optimally equipped for versatile use on construction sites and in the workshop.


Counter support

The set also includes several robust hardened steel counter holders, which ensure reliable guidance and fixing of the pipes during the bending process. The selection of different counter holders allows the bending device to be flexibly adapted to different pipe diameters and materials. The solid construction ensures consistently high bending quality, and thanks to the quick-release coupling with aluminum side parts, quick changes are possible without time-consuming assembly - for maximum efficiency and convenience in every application.

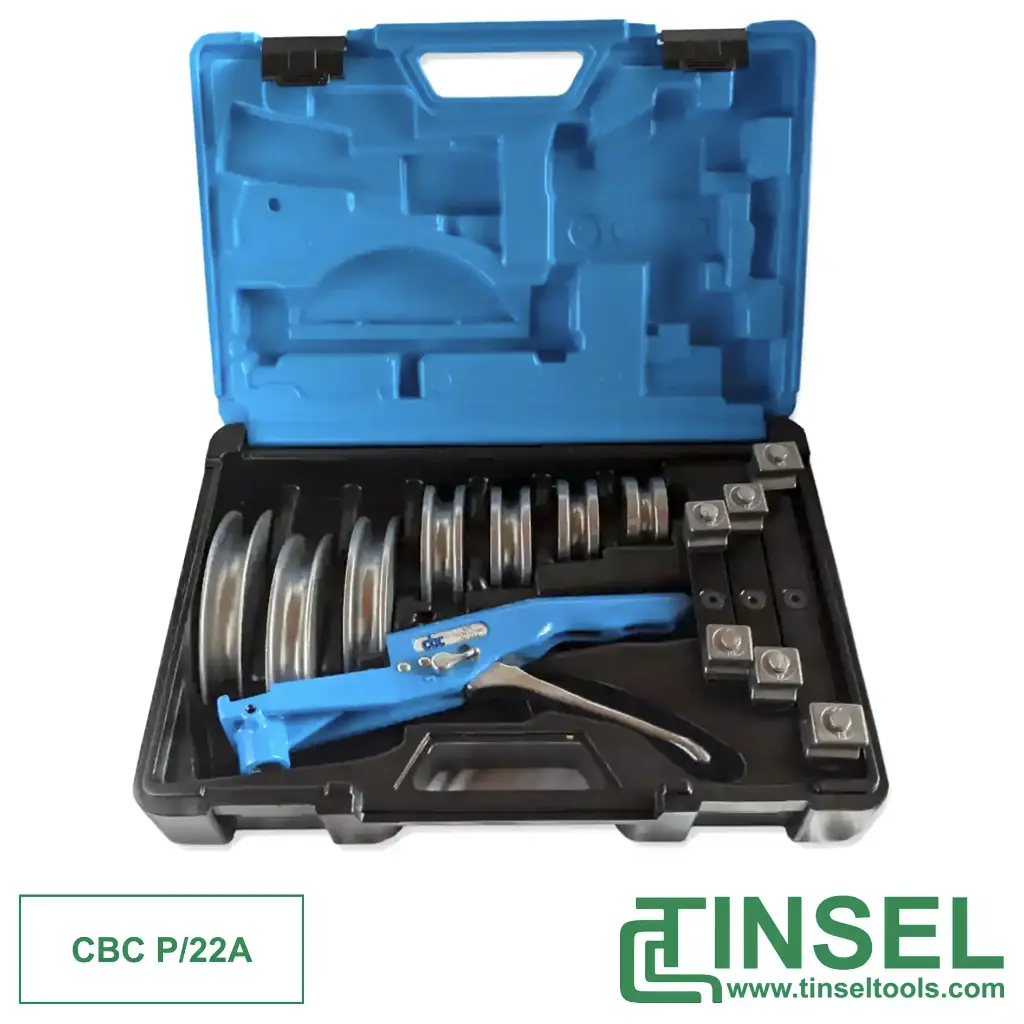

Carry case

The high-quality transport case ensures safe and orderly transportation of the bending machine and all accessories, including all bending moulds and counter holders. Thanks to the sturdy and precisely fitting inserts in the case, every part stays in place and is reliably protected from knocks, dirt and moisture. The ergonomic handle and compact design make it easy to transport to different locations so that you always have all your equipment to hand and are perfectly prepared for any task.


Total weight

  • Set with 3/8”, 1/2”, 5/8”, 3/4”, 7/8": 4,5 kg (10 lb)
  • Set with 14, 16, 18, 20, 22 mm: 4,9 kg (10,9 lb)
  • Set with 1/4”, 5/16”, 3/8", 1/2", 3/8”, 1/2”, 5/8”, 3/4”, 7/8": 4,9 kg (10,9 lb)
  • Set with 10, 12, 14, 16, 18, 20, 22 mm: 5 kg (11,1 lb)
  • Set with 10, 12, 14, 16, 18, 20, 22, 26 mm: 5,7 kg (12,7 lb)
  • Set with 10, 12, 14, 16, 18, 20, 22, 32 mm: 6,4 kg (14,2 lb)
