The UNI 63 with mandrel at a glance

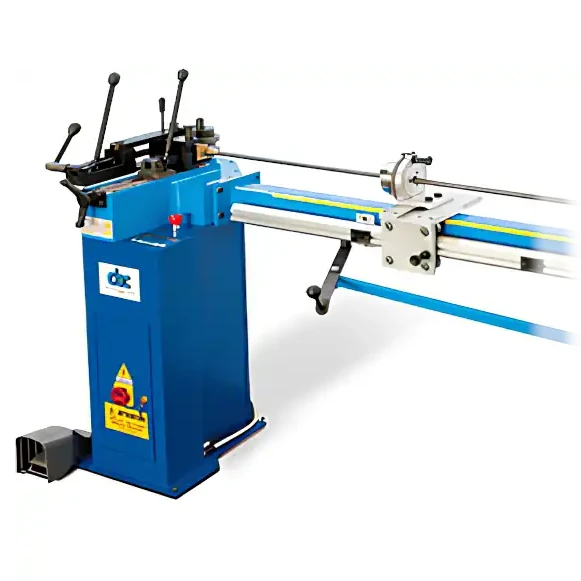

The CBC UNI 63 with mandrel kit is a three-phase, digitally controlled machine for delicate and thin-walled pipes: optimum, constant radii keep the bent pipes free of deformation, down to a minimum radius of twice the outside diameter. It corresponds to the earlier CBC UNI 30 SPEED for bending with mandrel.
A 1.50 HP motor (400 V) drives the spheroidal cast iron machine on its steel base frame, and the multilingual touchscreen control stores 50 programs with up to 9 bending angles each. The mandrel kit comes with the machine: pipe clamping device, mandrel extraction device, plane regulator, stops, base for the sliding counterformer with anti-wrinkle support and a mandrel rod of Ø 20 mm. Its length of 1 to 6 m defines the usable length of 0.55 to 5.55 m.
Technical Data
| Drive | asynchronous motor 1.50 HP, three-phase |
|---|---|
| Power supply | 400 V / 50 Hz |
| Control | touchscreen, multilingual; control board 24 V |
| Program memory | 50 programs with up to 9 bending angles each |
| Brake | electric brake |
| Max. bending angle | 180° |
| Minimum bending radius | 2 × pipe outside diameter |
| Mandrel rod | 20 mm / 0.79 in |
| Output shafts | Ø 32 mm square shaft included (544455); reduced shaft optional (544454) |
| Body | spheroidal cast iron on steel base frame |
| Dimensions (machine only) L × W × H | 740 × 900 × 1,000 mm / 29.13 × 35.43 × 39.37 in |
| Weight (machine only) | 120 kg / 264.6 lb |
| Standard version | 400 V / 50 Hz, quick guide positioning device, foot pedal, base, mandrel kit |
For standard radii without mandrel, CBC builds the UNI 63 as a separate machine type (9200563) – available on request.
Mandrel kit lengths of the UNI 63
Every version of the UNI 63 includes the complete mandrel kit; only the kit length differs. The longer the kit, the further from the pipe end a bend can be made.
| Version | Article no. | Usable length |
|---|---|---|
| Mandrel kit 1 m | 9210341 | 0.55 m |
| Mandrel kit 2 m | 9210342 | 1.55 m |
| Mandrel kit 3 m | 9210343 | 2.55 m |
| Mandrel kit 4 m | 9210344 | 3.55 m |
| Mandrel kit 5 m | 9210345 | 4.55 m |
| Mandrel kit 6 m | 9210346 | 5.55 m |
Bending capacity of the UNI 63 with mandrel
With mandrel, the UNI 63 bends hard and soft copper as well as annealed brass up to 35 × 3 mm, stainless steel AISI 304/316 up to 30 × 2 mm and furniture tubes up to 35 × 2 mm; gas pipes are possible up to 1".
Minimum bending radius: 2 × pipe outside diameter.
Bending capacity by pipe material
| Pipe material | Max. outside diameter | Max. wall thickness |
|---|---|---|
| Hard and Soft Copper Pipes, Annealed Brass Pipes | 35 mm / 1.38 in | 3 mm / 0.12 in |
| Stainless Steel AISI 304/316 Pipes | 30 mm / 1.18 in | 2 mm / 0.08 in |
| Furniture Tubes | 35 mm / 1.38 in | 2 mm / 0.08 in |
| Gas Pipes UNI 5745 | 1" | standard |
Special diameters and bending radii on request.
