SSVH EKPI.A at a glance

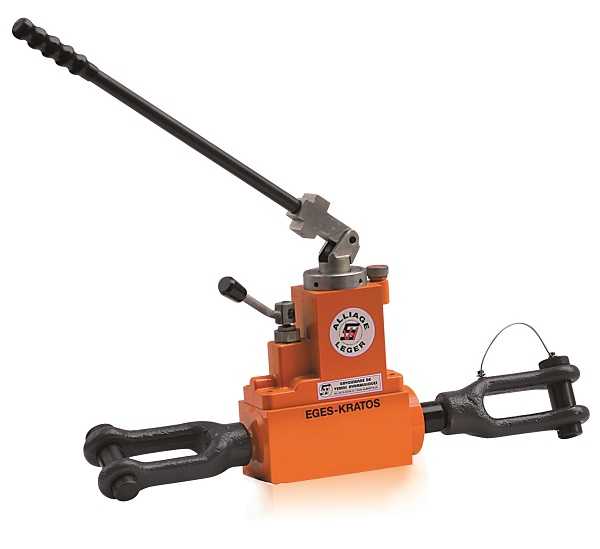

The EKPI.A is a self-contained cylinder: the hand pump is built into the cylinder, so neither a hose nor a separate pump is needed. It pushes and pulls with equivalent force – 10, 25 or 50 tonnes at 850 bar – with a stroke of 120 or 150 mm, and the light-alloy body keeps the weight between 12 and 36 kg. SSVH names shipyards, civil engineering, boilermaking and industry in general as users, for welding and assembling heavy parts and for straightening work.
The patented two-speed pump switches automatically from fast approach to working speed, and a pressure limiter protects the cylinder. A quarter-turn valve reverses the direction, the pump lever can be removed and turned through 360°, and there is a port for a pressure gauge. The cylinder works in any position from horizontal to vertical, with the breather pointing upwards. A flat push head, a pulling ring or a female clevis can be fitted and removed. SSVH delivers the cylinders ready for use and filled with oil.
Technical Data
| Maximum pressure | 850 bar |
|---|---|
| Force (push and pull) | 10, 25 or 50 t (98, 245 or 490 kN) |
| Stroke | 120 mm (10 t), 150 mm (25 and 50 t) |
| Pump | built-in two-speed hand pump with pressure limiter |
| Direction | quarter-turn reversing valve |
| Body | light alloy |
| Weight | 12 to 36 kg |
| On request | special attachments, pins for the female clevis |
Further information in our guides:
The three SSVH EKPI.A sizes
The advance per lever stroke shows how far the piston moves with one pump stroke.
| Version | Article no. | Force (kN) | Push: area (cm²) | Pull: area (cm²) | Stroke (mm) | Oil volume (cm³) | Closed height (mm) | Weight | Advance per lever stroke, no load (mm) | … under load (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 t | EKPI.A.10 | 98 | 12.57 | 11.2 | 120 | 150 | 288 | 12 kg / 26.5 lb | 8 | 0.9 |
| 25 t | EKPI.A.25 | 245 | 23.76 | 26.5 | 150 | 400 | 371 | 17 kg / 37.5 lb | 3.8 | 0.4 |
| 50 t | EKPI.A.50 | 490 | 50.26 | 53.64 | 150 | 800 | 385 | 36 kg / 79.4 lb | 2 | 0.25 |
Data sheet SSVH EKPI.A; cylinders are supplied ready for use and filled with oil.
Dimensions of the SSVH EKPI.A (letters as in the SSVH dimension drawing, mm)
| Size | A | B | C – piston Ø | D – thread | E – thread | N | O | P | Q |
|---|---|---|---|---|---|---|---|---|---|
| 10 t | 55 | 90 | 40 | M35 × 2 | M35 × 2 | 30 | 39 | 78 | 336 |
| 25 t | 80 | 120 | 55 | M55 × 3 | M55 × 3 | 40 | 60 | 120 | 368 |
| 50 t | 115 | 180 | 80 | M75 × 3 | M75 × 3 | 40 | 90 | 180 | 428 |
SSVH EKPS for a separate pump
The same forces with remote operation:
Manufacturer information
Manufacturer details in accordance with the EU General Product Safety Regulation (EU) 2023/988:
| Manufacturer | Société Savoisienne de Vérins Hydrauliques (SSVH) |
|---|---|
| Postal address | ZA de Terre Neuve, 1030 rue Gustave Eiffel, 73200 Gilly-sur-Isère, France |
| contact@ssvh.fr |
