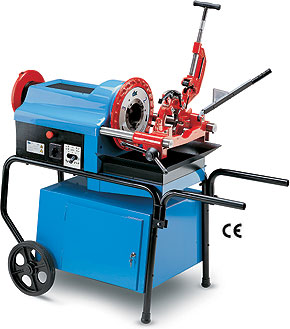

The CBC 440 at a glance
CBC describes the 440 as a construction site machine that threads, cuts, and deburrs metal pipes ranging from 1/4″ to 4″ GAS. It stands on a trolley with a tool cabinet, weighs 250 kg, and, with the trolley, measures 1,050 mm long by 800 mm wide by 1,220 mm high.
Two die heads cover the range: a self-opening head for pipes from 1/4″ to 2″ and a manually operated head for pipes from 2 1/2″ to 4″. The die heads run at two speeds, which are changed by a mechanical gearbox. A built-in gear pump lubricates the chasers and an oil tray collects the lubricant.
The 440 is available with either a 230 V single-phase or a 400 V three-phase motor, both of which have two speeds. A pipe cutter and deburrer for 1/4″ to 4″, as well as BSPT chasers for 1/2″–3/4″, 1″–2″, and 2 1/2″–4″, are included.
Technical Data
| Pipe range | 1/4″ to 4″ GAS |
|---|---|
| Three-phase motor (400 V version) | 400 V / 50 Hz, 2/4 poles, 1.3/1.7 kW, 4/5 A, 1450/2900 rpm |
| Single-phase motor (230 V version) | 230 V / 50 Hz, 1.25 kW / 10 A, 1400 rpm |
| Die head speed | 9/29 rpm; mechanical gearbox 11/35 rpm |
| Die heads | self-opening 1/4″–2″ GAS, manual opening 2″1/2–4″ GAS |
| Chaser lubrication | built-in gear pump |
| Dimensions with trolley (L × W × H) | 1,050 × 800 × 1,220 mm / 41.34 × 31.5 × 48.03 in |
| Weight | 250 kg / 551.2 lb |
| Included | trolley with tool cabinet, 2 die heads, pipe cutter and deburrer 1/4″–4″, oil tray, BSPT dies 1/2″–4″ |
| Optional | left-hand die heads; dies BSPP, NPT, BSW, MA, HSS and left-hand |
Threading capacity of the CBC 440
| Thread | Min. Ø | Max. Ø |
|---|---|---|
| Gas tapered (BSPT) | 1/4″ | 4″ |
| Gas cylindrical (BSPP) | 1/4″ | 4″ |
| American tapered (NPT) | 1/4″ | 4″ |
| Whitworth (BSW) | 5/16″ | 2″ |
| Metric (MA) | 6 mm | 45 mm |
Versions of the CBC 440
| Version | Article no. |
|---|---|
| 230 V, single-phase | 9350445 |
| 400 V, three-phase | 9350475 |
Accessories for the CBC 440
Matching accessories:
