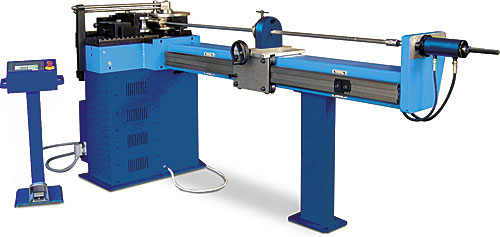

The UNI 90 at a glance
The CBC UNI 90 can bend mandrels up to 90 mm for copper, steel conduit, hydraulic, furniture, boiler, and aluminum pipes; stainless steel pipes up to 80 mm; 3" gas pipes; and square tubes up to 70 x 70 mm. All of these can be bent with radii down to twice the diameter. Its constant radii leave thin and delicate pipes undamaged, a feature that is highly valued in plumbing, shipbuilding, oil hydraulics, industry, and ornamental metalwork.
Weighing 970 kg and measuring 1,100 x 700 x 1,310 mm (machine only), the UNI 90 is built on a spheroidal cast iron body with a steel base. Its self-braking, two-speed, three-phase motor provides 4 kW via an inverter (380 V/50 Hz). Clamping and bending tools open and close under computerized hydraulic control. Mandrel extraction is programmable, and the machine automatically returns once the bend is complete. Up to 50 programs of nine angles each can be stored.
The standard version of the mandrel kit includes a hydraulic mandrel extraction system, a plane regulator, stops, and a 20 mm mandrel rod. It is also available in 4-, 5-, and 6-meter versions. The machine includes two interchangeable output shafts and a mechanical positioning spindle for the bending plane.
Technical Data
| Drive | self-braking asynchronous three-phase motor, 2 speeds, 4 kW with inverter |
|---|---|
| Power supply | 380 V / 50 Hz (other voltages on request) |
| Control | digital control with microprocessor and display; control panel 24 V |
| Program memory | up to 50 programs with up to 9 bending angles each |
| Hydraulics | computerized closing and opening of the clamping and bending tools |
| Mandrel extraction | hydraulic, programmable |
| Return | automatic at end of stroke |
| Max. bending angle | 180° |
| Minimum bending radius | 2 × pipe outside diameter |
| Body | spheroidal cast iron on steel base frame |
| Dimensions (machine only) L × W × H | 1,100 × 700 × 1,310 mm / 43.31 × 27.56 × 51.57 in |
| Weight | 970 kg / 2,138.5 lb |
| Standard version | 380 V / 50 Hz, automated hydraulic clamping and bending, mandrel kit 3 m with hydraulic mandrel extraction, plane regulator, stops, mandrel rod Ø 20 mm, 2 interchangeable output shafts |
Choosing the mandrel for the UNI 90
The CBC mandrel that fits depends on the radius and wall. Each one is made for a single pipe size.
| Mandrel | Use |
|---|---|
| Fixed (steel) | radius ≥ 2.5 × D, wall over 2 mm; groove for the weld seam |
| Articulated (bronze/aluminium) | radius < 2.5 × D, wall under 2 mm |
| Ball mandrel (bronze/aluminium) | radius < 2.5 × D, wall under 2 mm; very thin pipes, radius 2 × D |
Tooling for the UNI 90
| Tool | Purpose |
|---|---|
| Steel former | one per diameter and radius |
| Clamping jaw | holds the pipe, one per size |
| Pair of rollers | walls over 2.5 mm without special finish requirements |
| Fixed sliding counterformer | thin pipes, prevents marks on the outside |
| Mobile sliding counterformer | very thin pipes; support with automatic return |
| Anti-wrinkle die | prevents wrinkles on the inside of the bend |
We quote the tooling for your pipe on request.
Mandrel kit lengths of the UNI 90
There are four kit lengths available for the UNI 90. With a 3-meter kit, the usable length is 2.55 meters. With a 6-meter kit, the usable length is 5.55 meters.
| Version | Article no. | Usable length |
|---|---|---|
| Mandrel kit 3 m | 9210503 | 2.55 m |
| Mandrel kit 4 m | 9210504 | 3.55 m |
| Mandrel kit 5 m | 9210505 | 4.55 m |
| Mandrel kit 6 m | 9210506 | 5.55 m |
Bending capacity of the UNI 90 with mandrel
Using a mandrel, the UNI 90 can bend copper, steel conduit, hydraulic, furniture, boiler, and aluminum pipes up to 90 mm, as well as stainless steel pipes up to 80 x 3 mm. It can bend gas pipes up to 3″ with a 3 mm wall and square tubes up to 70 x 70 x 3 mm. The wall thickness is 4 mm for aluminum and 3 mm for copper and hydraulic pipes.
Minimum bending radius: 2 x pipe outside diameter.
Bending capacity by pipe material
| Pipe material | Max. outside diameter | Max. wall thickness |
|---|---|---|
| Hard and Soft Copper Pipes, Annealed Brass Pipes | 90 mm / 3.54 in | 3 mm / 0.12 in |
| Steel Pipes for Electrical Installations | 90 mm / 3.54 in | 2 mm / 0.08 in |
| Stainless Steel AISI 304/316 Pipes | 80 mm / 3.15 in | 3 mm / 0.12 in |
| Hydraulic Steel Pipes St 35.4 | 90 mm / 3.54 in | 3 mm / 0.12 in |
| Furniture Tubes | 90 mm / 3.54 in | 2 mm / 0.08 in |
| FE Boiler Pipes | 90 mm / 3.54 in | 2 mm / 0.08 in |
| Aluminium Pipes | 90 mm / 3.54 in | 4 mm / 0.16 in |
| Gas Pipes UNI 5745 | 3" | 3 mm / 0.12 in |
| Square Tubes | 70 × 70 mm / 2.76 × 2.76 in | 3 mm / 0.12 in |
Special diameters and bending radii on request.
