Bending multilayer pipes Ø 40 and 50 mm
These formers and counterformers allow the hydraulic hand pipe benders (OB/85S and OB/85SB) and the electro-hydraulic benders (OB 2003 E and MC 2005) to bend multilayer pipes with a diameter of 40 mm and a radius of 151 mm, as well as pipes with a diameter of 50 mm and a radius of 199 mm. CBC supplies both sizes as complete kits in cases. The formers, counterformers, and former extensions are also available individually.
Technical Data
| Pipes | multilayer pipes Ø 40 and 50 mm |
|---|---|
| Bending radius | Ø 40: 151 mm; Ø 50: 199 mm |
| Suitable for | OB/85S (also OB/KIT), OB/85SB, OB 2003 E, MC 2005 |
Kit and single parts Ø 40/50 mm
| Version | Article no. | Part | Radius |
|---|---|---|---|

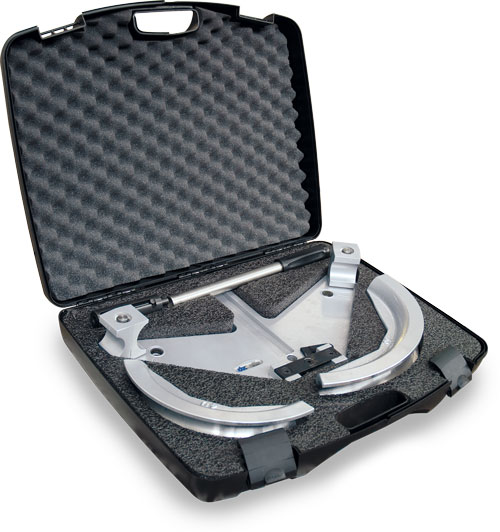

| Kit Ø 40 and 50 mm | 0001045 | formers and counterformers Ø 40 and 50 mm in a case | R 151 / R 199 mm |
| Former Ø 40 mm | 140209 | former | 151 mm / 5.94 in |
| Former Ø 50 mm | 140210 | former | 199 mm / 7.83 in |
| Counterformer Ø 40 mm | 0001010 | counterformer | – |
| Counterformer Ø 50 mm | 0001011 | counterformer | – |
| Extension for former Ø 40 mm | 595359 | extension | – |
| Extension for former Ø 50 mm | 595360 | extension | – |
