The Hydroil BM 20-350 at a glance

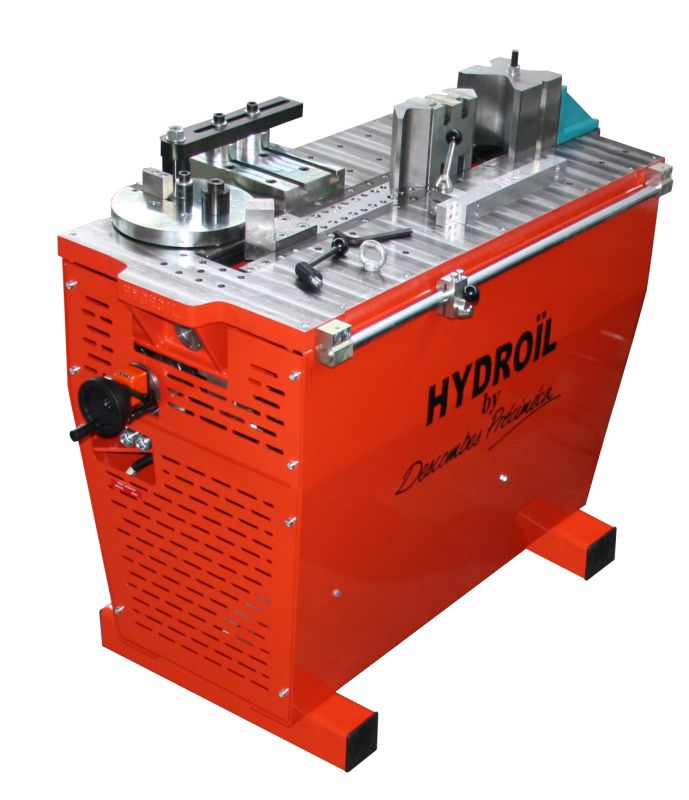

Since 1997, the BM 20-350 has been built as a horizontal press for many forming jobs on one machine. A 350-mm-stroke slide pushes and pulls with 20-ton force, and two rotary tables add a turning movement. With four workstations and two control stations, the BM 20-350 bends, shears, punches, notches, flares, reduces, rolls, and twists sections of bar, tube, and wire. It also forms brackets, clamps, and tube ends.
The press stroke and rotary tables complement each other. The press can bend a 70 x 10 mm flat bar on edge or flat to radii starting at 400 mm in sectors against a hydraulic end stop. Meanwhile, the rotary tables can create short radii and closed angles. The table and slide are part of the tooling, so users can often make forming tools from flame-cut plate themselves, which is economical even for single parts and prototypes. Quick-release hydraulic couplings drive additional movements, such as clamping or a second operation.
The Model 2003 has the same performance data as the previous model and adds a choice of two speeds for the slide and rotary tables, as well as three control modes: sensitive lever, three-hand control, and foot pedal.
Technical Data
| Force | 20 t, pushing and pulling |
|---|---|
| Slide stroke | 350 mm / 13.78 in |
| Rotary tables | 2, travel 1¼ turns |
| Work stations | 4 work stations, 2 control stations |
| Machine length | 1,200 mm / 47.24 in |
| Speeds (Model 2003) | slide 10 or 30 mm/s; table 1: 11 or 33°/s; table 2: 7 or 21°/s |
Bending examples from the manufacturer
| Workpiece | Method | Radius |
|---|---|---|
| Flat bar 70 × 10 mm | press, on edge or flat, in sectors | 400 mm to 1,000 mm and more |
| Tube Ø 80 mm, wall 3–4 mm | press with push-bending tooling | 2,000 mm / 78.74 in |
| Square 20 mm | rotary table, cold, 180° and more | 25 mm / 15 mm |
Examples as described by the manufacturer; the achievable result depends on material and tooling.
Tooling for the BM 20-350
| Tooling | Use |
|---|---|
| Basic press tooling H 125 | folding flat, round and square bar; female die with openings 110/90/70/50 mm, double punch holder |
| Tooling height 160 or 200 | instead of H 125; other dies on request |
| Universal tooling 1 | on the rotary table |
| Tube push-bending tooling | bending tubes by pushing |
| Wire bending tooling | bending wire between two rollers |
| Square tube bending tooling | 'coude américain' bends in square tube |
| Bending tooling with hydraulic hold-back | thin-walled tube without mandrel |
| Positioning stop | 385 mm long, 2 or up to 4 positions, several per machine |
Special tooling is designed for your parts on request.
Versions of the BM 20-350
| Version | Article no. | Features |
|---|---|---|
| BM 20-350 | BM 20-350 | basic version |
| BM 20-350 Model 2003 | BM 20-350 MODELE 2003 | two speeds, three control modes |
Tooling is selected for the application; please describe your parts with the enquiry.
The smaller Hydroil horizontal press
Without rotary table, 200 mm stroke, tooling included:
