The Amica 3 at a glance

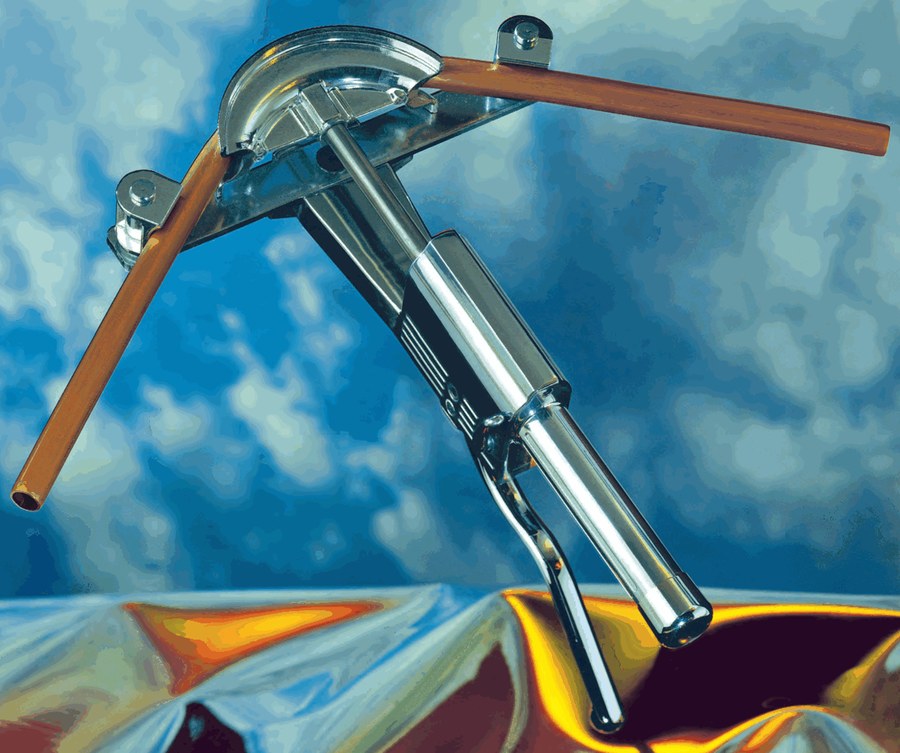

The Amica 3 is a lever-operated pipe bender designed for pipes taken from coils, including bare annealed copper, copper with PVC sheathing or another soft coating, and multilayer pipes with special forms. It operates without oil or gears. Unlike older benders with rack and pinion, the piston advances continuously, as on hydraulic benders, rather than in fixed steps.
If the bender loses force, the manufacturer recommends one adjustment: remove the stop screw and turn the adjusting screw in by about one turn. The three versions differ in their forms. The Amica 3 BIG can bend multilayer pipes with diameters of 26 and 32 mm and comes with an additional counterform plate.
Technical Data
| Operation | hand lever, continuous piston feed |
|---|---|
| Drive | mechanical, without oil and gears |
| Pipes | annealed copper bare or coated Ø 10–22 mm and 3/8″–7/8″; multilayer Ø 26 and 32 mm |
| Bending radius | R 42 to 96 mm depending on the form (see table) |
The three versions of the Amica 3
| Version | Article no. | Forms supplied | Counterform plates | For |
|---|---|---|---|---|
| Amica 3 · Ø 10–22 mm | CM00 260 | 8 forms: Ø 10–22 mm and 22 mm coated | 2 | annealed copper bare or with soft coating |
| Amica 3 · Ø 16–32 mm | CM00 260/2 | 4 forms: Ø 16, 20, 26, 32 mm | 2 | pipes from coils |
| Amica 3 BIG · Ø 10–32 mm | CM00 260/32 | 10 forms: Ø 10–22 mm and Ø 26–32 mm multilayer | 3 | copper and PVC-coated multilayer pipes |
Bending radii of the Amica 3 forms
| Form | Bending radius |
|---|---|
| Ø 10 mm, 3/8″ | 42 mm / 1.65 in |
| Ø 12 mm, 1/2″ | 43 mm / 1.69 in |
| Ø 14 mm | 46 mm / 1.81 in |
| Ø 16 mm, 5/8″ | 55 mm / 2.17 in |
| Ø 18 mm | 66 mm / 2.6 in |
| Ø 20 mm, 3/4″ | 73 mm / 2.87 in |
| Ø 22 mm, 7/8″ | 78 mm / 3.07 in |
| Ø 22 mm coated | 79 mm / 3.11 in |
| Ø 26 mm multilayer | 68 mm / 2.68 in |
| Ø 32 mm multilayer | 96 mm / 3.78 in |
The multilayer forms Ø 26 and 32 mm work with a special counterform plate.
