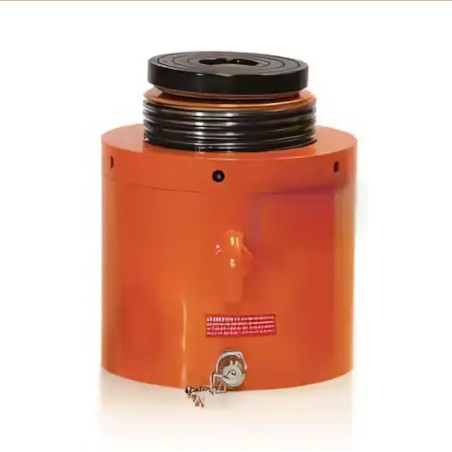

SSVH TB at a glance
Like the UB, the TB cylinders are built for lifting heavy components, but with a longer stroke of 40 to 70 mm. A built-in spring returns the piston, so the cylinder also retracts without load. SSVH recommends them for heavy-duty work in places that are hard to reach; the closed height starts at 88 mm for the 5-tonne model.
Every size comes in two versions: L with a smooth piston and S with a threaded piston and safety nut, which holds a load mechanically over longer periods. The piston runs in a guide and stop ring; the cylinders are treated against seizing and corrosion and have a 3/8 NPT port with a 3050.3 half coupler. The 140 and 220 t models have an oscillating piston head as standard; for 5 to 105 t it is available on request, as are threaded fixing holes in the base.
Technical Data
| Operating pressure | 700 bar |
|---|---|
| Force | 5 to 220 t (57 to 2,200 kN) |
| Stroke | L: 40 to 70 mm; S: 40 to 60 mm |
| Piston return | built-in spring |
| Versions | L: smooth piston; S: threaded piston with safety nut |
| Oil port | 3/8 NPT, 3050.3 half coupler with dust cap |
| Weight | 1.4 to 97.5 kg |
| On request | oscillating head (5 to 105 t), threaded fixing holes in the base |
Further information in our guides:
SSVH TB with smooth piston (L)
140 and 220 t: oscillating head as standard, height and weight including the head.
| Version | Article no. | Force (kN) | Piston area (cm²) | Stroke (mm) | Oil volume (cm³) | Closed height (mm) | … with oscillating head (mm) | Weight | Weight with oscillating head (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5 t | TB.5.40.L.Ri | 57 | 8.04 | 40 | 30 | 88 | 95 | 1.4 kg / 3.1 lb | 1.45 |
| 9 t | TB.9.40.L.Ri | 88 | 12.56 | 40 | 50 | 90 | 99 | 2 kg / 4.4 lb | 2.05 |
| 14 t | TB.14.50.L.Ri | 137 | 19.63 | 50 | 100 | 106 | 115 | 3.1 kg / 6.8 lb | 3.2 |
| 22 t | TB.22.50.L.Ri | 218 | 31.17 | 50 | 160 | 108 | 118 | 4.5 kg / 9.9 lb | 4.65 |
| 35 t | TB.35.50.L.Ri | 352 | 50.26 | 50 | 250 | 122 | 137 | 8.1 kg / 17.9 lb | 8.7 |
| 55 t | TB.55.50.L.Ri | 550 | 78.54 | 50 | 390 | 126 | 145 | 12.7 kg / 28 lb | 13.6 |
| 85 t | TB.85.60.L.Ri | 859 | 122.7 | 60 | 740 | 154 | 173 | 24.7 kg / 54.5 lb | 26 |
| 105 t | TB.105.60.L.Ri | 1,077 | 153.9 | 60 | 920 | 162 | 189 | 33.5 kg / 73.9 lb | 36 |
| 140 t | TB.140.70.L.Ri.TO | 1,407 | 201.1 | 70 | 1,400 | 192 | standard | 47.5 kg / 104.7 lb | standard |
| 220 t | TB.220.70.L.Ri.TO | 2,200 | 314.1 | 70 | 2,200 | 210 | standard | 80 kg / 176.4 lb | standard |
Source: SSVH TB data sheet. Other forces and strokes are produced on request.
SSVH TB with safety nut (S)
Threaded piston with safety nut; heights including the nut.
| Version | Article no. | Force (kN) | Piston area (cm²) | Stroke (mm) | Oil volume (cm³) | Closed height (mm) | … with oscillating head (mm) | Weight | Weight with oscillating head (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5 t | TB.5.40.S.Ri | 57 | 8.04 | 40 | 30 | 98 | 105 | 1.6 kg / 3.5 lb | 1.65 |
| 9 t | TB.9.40.S.Ri | 88 | 12.56 | 40 | 50 | 102 | 113 | 2.3 kg / 5.1 lb | 2.35 |
| 14 t | TB.14.40.S.Ri | 137 | 19.63 | 40 | 80 | 121 | 130 | 3.8 kg / 8.4 lb | 3.9 |
| 22 t | TB.22.40.S.Ri | 218 | 31.17 | 40 | 130 | 123 | 133 | 5.4 kg / 11.9 lb | 5.55 |
| 35 t | TB.35.50.S.Ri | 352 | 50.26 | 50 | 250 | 139 | 154 | 9.7 kg / 21.4 lb | 10.3 |
| 55 t | TB.55.50.S.Ri | 550 | 78.54 | 50 | 390 | 146 | 165 | 15.5 kg / 34.2 lb | 16.4 |
| 85 t | TB.85.60.S.Ri | 859 | 122.7 | 60 | 740 | 177 | 196 | 29.7 kg / 65.5 lb | 31 |
| 105 t | TB.105.60.S.Ri | 1,077 | 153.9 | 60 | 920 | 187 | 214 | 37.7 kg / 83.1 lb | 40.2 |
| 140 t | TB.140.60.S.Ri.To | 1,407 | 201.1 | 60 | 1,210 | 220 | standard | 57.1 kg / 125.9 lb | standard |
| 220 t | TB.220.60.S.Ri.To | 2,200 | 314.1 | 60 | 1,890 | 245 | standard | 97.5 kg / 215 lb | standard |
Dimensions of the SSVH TB (letters as in the SSVH dimension drawing, mm)
| Size | A – piston Ø | B | C | D | E – fixing holes in base (on request) | I |
|---|---|---|---|---|---|---|
| 5 t | 32 | 53 | 28 | 28 | 4 × M6, 7 deep, on Ø 42 | 16 |
| 9 t | 40 | 63 | 35 | 35 | 4 × M6, 7 deep, on Ø 52 | 16 |
| 14 t | 50 | 73 | 43 | 43 | 4 × M6, 7 deep, on Ø 62 | 16 |
| 22 t | 63 | 87 | 53 | 53 | 4 × M8, 9 deep, on Ø 72 | 18 |
| 35 t | 80 | 108 | 73 | 75 | 4 × M10, 8 deep, on Ø 90 | 18 |
| 55 t | 100 | 133 | 90 | 93 | 4 × M10, 10 deep, on Ø 115 | 18 |
| 85 t | 125 | 168 | 112 | 107 | 4 × M10, 12 deep, on Ø 150 | 22 |
| 105 t | 140 | 189 | 127 | 135 | 4 × M14, 15 deep, on Ø 160 | 28 |
| 140 t | 160 | 216 | 146 | 135 | 4 × M14, 15 deep, on Ø 190 | 28 |
| 220 t | 200 | 267 | 178 | 165 | 4 × M16, 19 deep, on Ø 235 | 34 |
Other low-height SSVH cylinders
With 15 mm stroke or up to 1000 t:
