Crossover bends in multilayer pipes
When one multilayer pipe crosses over another, a crossover bend (offset) is required. CBC makes a special former and counterformer for this purpose that fit the OB/85S and OB/85SB hydraulic benders, as well as the OB 2003 E and MC 2005 electro-hydraulic benders. The former is available for multilayer pipes with diameters of 16, 18, 20, and 26 mm.
Each of the three kits combines three sizes in a 6 kg case, and formers and counterformers can be ordered individually. The formers are made of aluminum.
Technical Data
| Pipes | multilayer pipes Ø 16, 18, 20, 26 mm |
|---|---|
| Suitable for | OB/85S, OB/85SB, OB 2003 E, MC 2005 |
| Kit case | 010120 |
Offset kits A, B and C
| Version | Article no. | Contents | Weight |
|---|---|---|---|
| Kit A | 0001046 | formers and counterformers Ø 16, 18, 26 mm, case | 6 kg / 13.2 lb |
| Kit B | 0001047 | formers and counterformers Ø 16, 20, 26 mm, case | 6 kg / 13.2 lb |
| Kit C | 0001048 | formers and counterformers Ø 18, 20, 26 mm, case | 6 kg / 13.2 lb |
Single formers and counterformers for offsets
| Version | Article no. | Part |
|---|---|---|
| Former Ø 16 mm | 140203 | former, aluminium |
| Former Ø 18 mm | 140202 | former, aluminium |
| Former Ø 20 mm | 140200 | former, aluminium |
| Former Ø 26 mm | 140201 | former, aluminium |
| Counterformer Ø 16 mm | 0001012 | counterformer |
| Counterformer Ø 18 mm | 0001016 | counterformer |
| Counterformer Ø 20 mm | 0001013 | counterformer |
| Counterformer Ø 26 mm | 0001014 | counterformer |
Matching pipe benders
The offset kit fits:
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

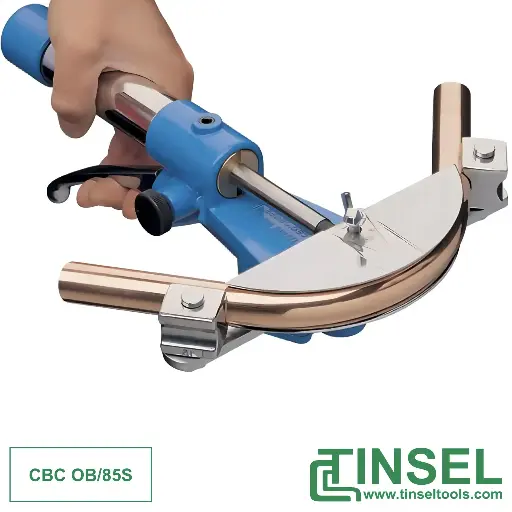

Portable hydraulic pipe bender CBC OB/85S (10, 12, 14, 16, 18, 20, 22 mm, 3 counterformers)
