The CBC CS pipe shears at a glance
The CS shears cut pipes made of PB, PE, PP, PVC, and PVDF with diameters up to 63 mm. CBC offers ten models, ranging from the compact CS 10, which can cut pipes up to 12.7 mm in diameter and weighs 0.05 kg, to the CS 63 and CS 63-N, which can cut pipes up to 63 mm in diameter.
Three models have a specified minimum diameter: the CS 35/50 cuts pipes from 6 to 50 mm, the CS 6/35 RV cuts pipes from 6 to 35 mm, and the CS 6/42 RV cuts pipes from 6 to 42 mm.
Technical Data
| Pipe materials | PB, PE, PP, PVC, PVDF |
|---|---|
| Pipe range | up to Ø 63 mm (depending on model) |

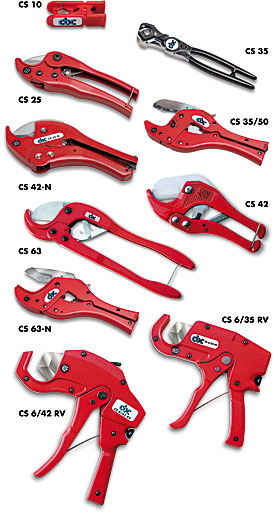

CS pipe shears compared
| Version | Article no. | For pipes Ø | Weight |
|---|---|---|---|
| CS 10 | 9730710 | up to Ø 12.7 mm | 0.05 kg / 0.1 lb |
| CS 25 | 9730725 | up to Ø 25 mm | 0.3 kg / 0.7 lb |
| CS 35 | 9730735 | up to Ø 35 mm | 0.45 kg / 1 lb |
| CS 35/50 | 9730755 | Ø 6–50 mm | 0.6 kg / 1.3 lb |
| CS 42-N | 9730745 | up to Ø 42 mm | 0.5 kg / 1.1 lb |
| CS 42 | 9730750 | up to Ø 42 mm | 0.4 kg / 0.9 lb |
| CS 63 | 9730780 | up to Ø 63 mm | 1.1 kg / 2.4 lb |
| CS 63-N | 9730785 | up to Ø 63 mm | 0.7 kg / 1.5 lb |
| CS 6/35 RV | 9730730 | Ø 6–35 mm | 0.7 kg / 1.5 lb |
| CS 6/42 RV | 9730770 | Ø 6–42 mm | 0.9 kg / 2 lb |
Manufacturer information
Manufacturer details in accordance with the EU General Product Safety Regulation (EU) 2023/988:
| Manufacturer | C.B.C. S.r.l. |
|---|---|
| Postal address | Via L. Einaudi, 3, 42016 Guastalla (RE), Italy |
