The CBC F2-E at a glance

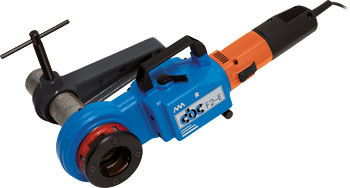

With the F2-E, CBC offers a portable threading machine for right-hand pipe threads up to 2″. It cuts from 1/4″ to 2″ with ECO threading heads; the Mod. 97 adapter extends the range to 2″1/2–4″. Like the smaller 114 MINI, it has a mechanical drive without worm gears and a mechanical reversing gear.
The aluminium body houses gears of hardened steel and a double-insulated motor for 230 V, 50–60 Hz, with an output of 1000 W. The F2-E threads at 25 rpm and returns at 59 rpm; the machine alone weighs 6 kg.
In the standard set 9320020 (22 kg), CBC supplies the machine in plastic case 010095 with six BSPT right-hand ECO heads from 1/2″ to 2″, a pipe clamp with swivel support, an octagonal reduction and a 600 ml spray can of threading oil. The machine is also available on its own.
Technical Data
| Threading range | 1/4″ to 2″, right-hand |
|---|---|
| With adapter Mod. 97 | 2″1/2 – 4″ |
| Motor | 230 V / 1000 W / 50–60 Hz, double insulated |
| Threading speed | 25 rpm |
| Return speed | 59 rpm |
| Body | aluminium; gears of hardened steel |
| Weight (machine only) | 6 kg / 13.2 lb |
| Optional | ECO heads 1/4″ and 3/8″ GAS, ECO heads NPT, adapter Mod. 97, threading oil |
Versions of the F2-E
| Version | Article no. | Scope of delivery | Weight |
|---|---|---|---|
| Standard set 1/2″–2″ | 9320020 | machine, ECO heads 1/2″–2″ (6), pipe clamp, swivel support, octagonal reduction, spray can 600 ml, plastic case 010095 | 22 kg / 48.5 lb |
| Machine only | 9320001 | machine | 6 kg / 13.2 lb |
Accessories for the F2-E
Matching accessories and related CBC machines:
