The OB/85S+ at a glance

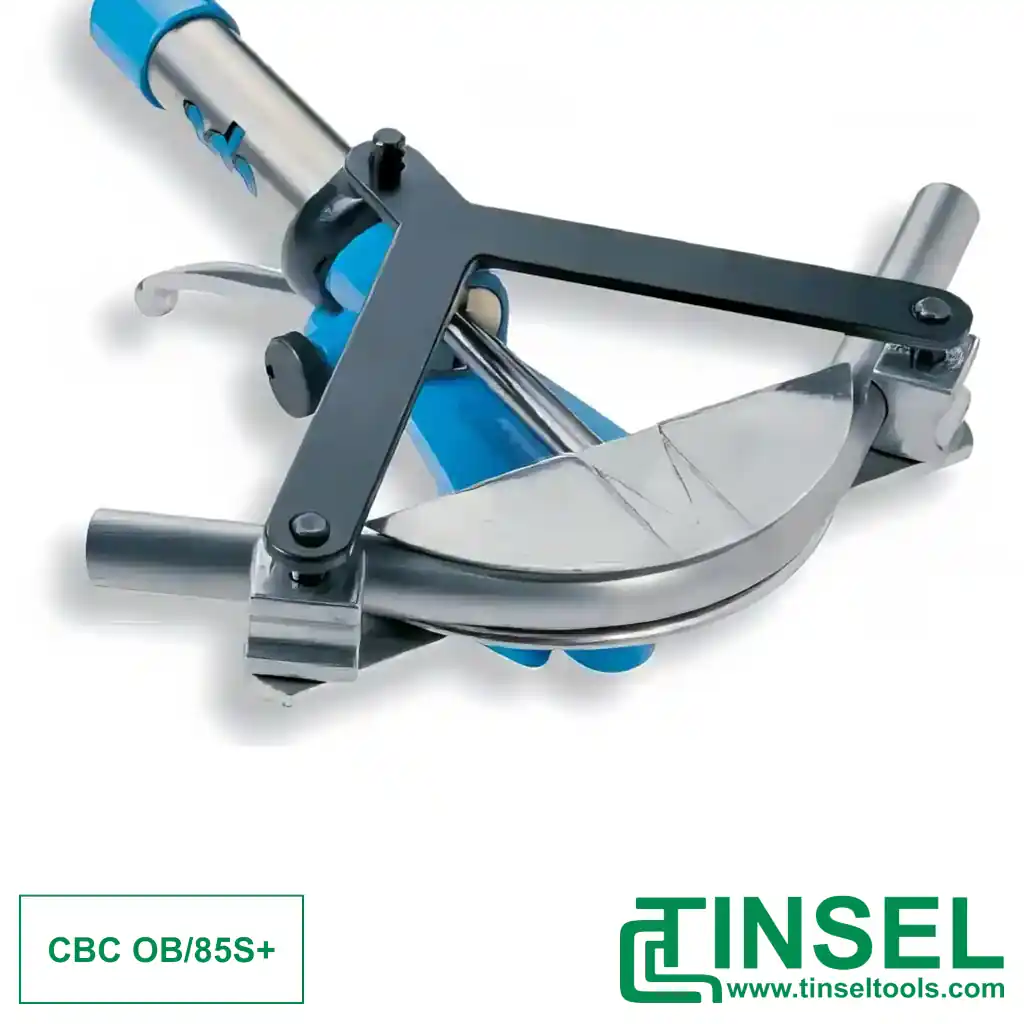

The CBC OB/85S+ is a hand pipe bender equipped by CBC for oil-hydraulic systems (CBC designation: OB/85S Oleodinamica). It can bend stainless steel and bonderized steel pipes from 6 to 18 mm, as well as annealed and semi-hard copper pipes up to 22 mm.
The set includes up to ten die-cast aluminum formers ranging from 6 to 22 mm, or seven inch-size formers, depending on the version. It also includes three quick-coupling counterformers made of galvanized steel; two of these are reinforced (14–17 and 18–22). The die-cast aluminum and stainless steel hand-operated pump body has a double hydraulic circuit, and a plastic carrying case is included.
Technical Data
| Operation | hand-operated hydraulic pump |
|---|---|
| Pump body | die-cast aluminium and stainless steel, double hydraulic circuit |
| Formers | die-cast aluminium |
| Counterformers | 10–12, 14–17 (reinforced), 18–22 (reinforced) |
| Counterformer design | galvanized steel with die-cast aluminium sides, quick coupling |
| Carrying case | PVC case, included |
Standard versions of the OB/85S+
The three versions are identical in terms of the pump body, the three counterformers, and the case. The only difference is in the formers. Version A also covers small diameters of 6 and 8 mm.
| Version | Article no. | Formers | Total weight |
|---|---|---|---|
| A · 6–22 mm | 9050050 | 6, 8, 10, 12, 14, 15, 16, 18, 20, 22 mm | 7.7 kg / 17 lb |
| B · 10–22 mm | 9050055 | 10, 12, 14, 15, 16, 18, 20, 22 mm | 7.5 kg / 16.5 lb |
| C · 1/4"–7/8" | 9050060 | 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8" | 7.5 kg / 16.5 lb |
Bending radii of the OB/85S+ formers
| Former (pipe outside Ø) | Bending radius |
|---|---|
| Ø 6 mm | 31 mm / 1.22 in |
| Ø 8 mm | 31 mm / 1.22 in |
| Ø 10 mm | 31 mm / 1.22 in |
| Ø 12 mm | 34 mm / 1.34 in |
| Ø 14 mm | 41 mm / 1.61 in |
| Ø 15 mm | 48 mm / 1.89 in |
| Ø 16 mm | 63 mm / 2.48 in |
| Ø 18 mm | 72 mm / 2.83 in |
| Ø 20 mm | 80 mm / 3.15 in |
| Ø 22 mm | 88 mm / 3.46 in |
| 1/4", 5/16", 3/8" | 31 mm / 1.22 in |
| 1/2" | 34 mm / 1.34 in |
| 5/8" | 49 mm / 1.93 in |
| 3/4" | 80 mm / 3.15 in |
| 7/8" | 88 mm / 3.46 in |
The 16 mm former of the OB/85S+ has a radius of 63 mm; the standard OB/85S former for 16 mm has 49 mm.
Bending capacity of the OB/85S+
The OB/85S+ is designed for use with the pipe materials found in oil-hydraulic systems, including annealed stainless steel up to 18 x 1.2 mm and bonderized steel up to 18 x 2 mm. It can bend annealed and semi-hard copper pipes up to 22 x 1 mm.
Bending capacity by pipe material
| Pipe material | Max. outside diameter | Max. wall thickness |
|---|---|---|
| Annealed Stainless Steel Pipes | 18 mm / 0.71 in | 1.2 mm / 0.05 in |
| Bonderized Steel Pipes | 18 mm / 0.71 in | 2 mm / 0.08 in |
| Annealed and Semi-Hard Copper Pipes | 22 mm / 0.87 in | 1 mm / 0.04 in |
