The P/22A at a glance

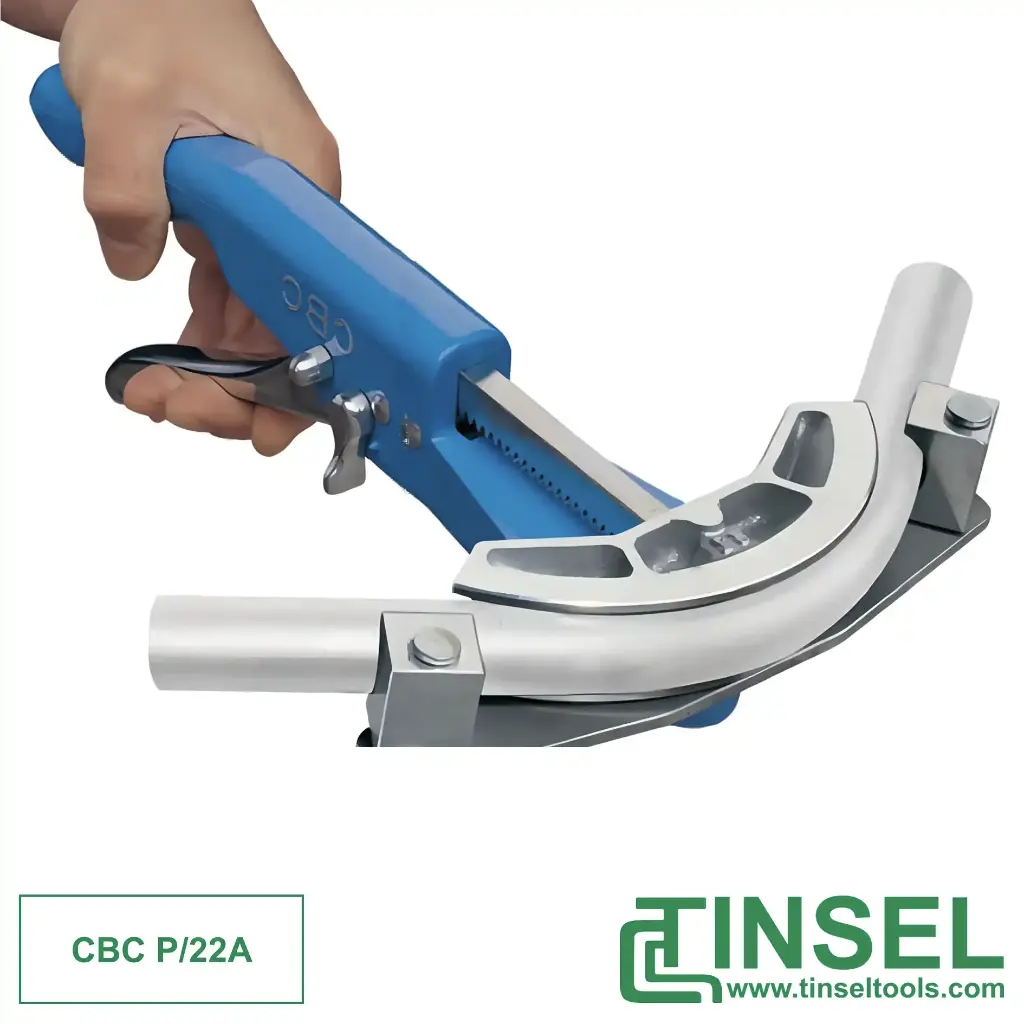

The CBC P/22A is a mechanical portable pipe bender that operates entirely without hydraulics. CBC describes it as the lightest and fastest tool of its kind. The high-strength, light alloy die-cast block weighs only 1.15 kg, and the operating lever is made of die-cast brass.
The P/22A uses the same die-cast aluminum formers and quick-coupling steel counterformers as the hydraulic OB/85S. Therefore, it can bend annealed copper pipes up to 22 mm and multilayer pipes up to 32 mm. Six standard versions (A–F) come in a practical carrying case.
Technical Data
| Operation | mechanical, hand lever of die-cast brass |
|---|---|
| Body | high-strength light-alloy die-cast block |
| Weight of body | 1.15 kg / 2.5 lb |
| Formers | die-cast aluminium |
| Counterformers | steel with die-cast aluminium sides, quick coupling without screws |
Standard versions of the P/22A
Versions P/22A carry the same letters and former sets as versions A–F of the OB/85S. Versions A–E are packed in cases for 10–26 mm and version F is packed in cases for 10–32 mm.
| Version | Article no. | Formers | Counterformers | Total weight |
|---|---|---|---|---|
| A · 10–22 mm | 9010001 | 10, 12, 14, 16, 18, 20, 22 mm | 10–12, 14–17, 18–22 | 5 kg / 11 lb |
| B · 10–22 mm | 9010005 | 10, 12, 14, 16, 18, 20, 22 mm | 14–17, 18–22 | 4.9 kg / 10.8 lb |
| C · 1/4"–7/8" | 9010045 | 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8" | 10–12, 14–17, 18–22 | 4.9 kg / 10.8 lb |
| D · 3/8"–7/8" | 9010040 | 3/8", 1/2", 5/8", 3/4", 7/8" | 14–17, 18–22 | 4.5 kg / 9.9 lb |
| E · 10–26 mm | 9010026 | 10, 12, 14, 16, 18, 20, 22, 26 mm | 10–12, 14–17, 18–22, 26 | 5.7 kg / 12.6 lb |
| F · 10–32 mm | 9010029 | 10, 12, 14, 16, 18, 20, 22, 26, 32 mm | 10–12, 14–17, 18–22, 26, 32 | 6.4 kg / 14.1 lb |
Bending radii of the P/22A formers
| Former (pipe outside Ø) | Bending radius |
|---|---|
| Ø 10 mm | 31 mm / 1.22 in |
| Ø 12 mm | 34 mm / 1.34 in |
| Ø 14 mm | 41 mm / 1.61 in |
| Ø 16 mm | 49 mm / 1.93 in |
| Ø 18 mm | 72 mm / 2.83 in |
| Ø 20 mm | 80 mm / 3.15 in |
| Ø 22 mm | 88 mm / 3.46 in |
| Ø 26 mm (multilayer) | 95 mm / 3.74 in |
| Ø 32 mm (multilayer) | 114 mm / 4.49 in |
| 1/4", 5/16", 3/8" | 31 mm / 1.22 in |
| 1/2" | 34 mm / 1.34 in |
| 5/8" | 49 mm / 1.93 in |
| 3/4" | 80 mm / 3.15 in |
| 7/8" | 88 mm / 3.46 in |
Bending capacity of the P/22A
The P/22A bends annealed copper pipes up to 22 x 1 mm and multilayer pipes up to 32 x 3 mm. The hydraulic OB/85S is the right choice for copper pipes with walls up to 1.5 mm.
Bending capacity by pipe material
| Pipe material | Max. outside diameter | Max. wall thickness |
|---|---|---|
| Annealed Copper Pipes | 22 mm / 0.87 in | 1 mm / 0.04 in |
| Multilayer Pipes (Double-Coated Aluminium) | 32 mm / 1.26 in | 3 mm / 0.12 in |
Further information in our guides:
- Pipe materials for tube bending – an overview
- The bending radius in tube bending – the ultimate guide
Accessories for the P/22A
Matching accessories:
