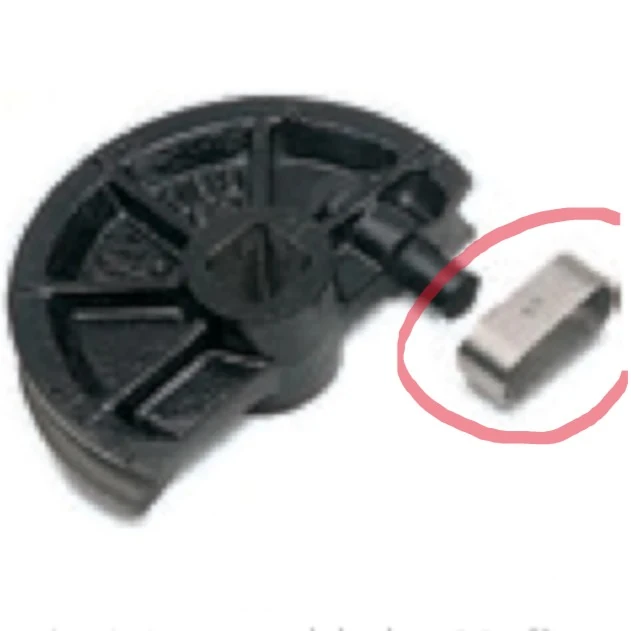

Retaining rings for CBC bending formers
CBC supplies the formers of its UNI pipe benders complete with ring; the rings are also available as spare parts. Each ring belongs to the size of its former – for some sizes, CBC makes separate rings for 3D and 4D formers or for aluminium formers.
Several rings fit a metric and an inch former at the same time, for example Ø 16 mm and 5/8″. Three further rings belong to the formers of the FLEX 22, which the manual UNI 22 uses as well.
Technical Data
| For formers | UNI 42, 60, 63, 70/C, 76, 89 (aluminium and ductile iron); FLEX 22, UNI 22 |
|---|
| Sizes | Ø 6–60 mm, 1/4″–2″3/8, 1/4–2″ GAS |
|---|
Rings for formers in mm
| Version | Article no. |
|---|
| Ø 6 mm / 5/16″ | 519072 |
|---|
| Ø 8 mm | 519091 |
|---|
| Ø 10 mm 3D / 3/8″ R 30 | 519073 |
|---|
| Ø 10 mm 4D | 519030 |
|---|
| Ø 12 mm | 519031 |
|---|
| Ø 12 mm 4D | 519103 |
|---|
| Ø 14 mm | 519032 |
|---|
| Ø 15 mm / 9/16″ | 519033 |
|---|
| Ø 16 mm / 5/8″ | 519034 |
|---|
| Ø 17 mm | 519035 |
|---|
| Ø 18 mm | 519036 |
|---|
| Ø 19 mm 3D / 3/4″ | 519038 |
|---|
| Ø 19 mm 4D | 519098 |
|---|
| Ø 20 mm | 519037 |
|---|
| Ø 22 mm / 7/8″ | 519039 |
|---|
| Ø 24 mm | 519040 |
|---|
| Ø 25 mm / 1″ | 519041 |
|---|
| Ø 26 mm | 519042 |
|---|
| Ø 28 mm / 1″1/8 | 519043 |
|---|
| Ø 30 mm | 519044 |
|---|
| Ø 32 mm / 1″1/4 | 519045 |
|---|
| Ø 34 mm | 519046 |
|---|
| Ø 35 mm / 1″3/8 | 519047 |
|---|
| Ø 37 mm | 519048 |
|---|
| Ø 38 mm / 1″1/2 (aluminium former) | 519114 |
|---|
| Ø 38 mm / 1″1/2 | 500295 |
|---|
| Ø 40 mm (aluminium former) | 519115 |
|---|
| Ø 40 mm | 500296 |
|---|
| Ø 42 mm / 1″5/8 | 500113 |
|---|
| Ø 45 mm | 500297 |
|---|
| Ø 50 mm 3D/4D / 1″1/2 GAS 4D | 500114 |
|---|
| Ø 50 mm | 500317 |
|---|
| Ø 52 mm | 500298 |
|---|
| Ø 54 mm | 500299 |
|---|
| Ø 60 mm / 2″ GAS 4D | 500115 |
|---|
Rings for formers in inch sizes (WHT)
| Version | Article no. |
|---|
| 1/4″ | 519092 |
|---|
| 1/2″ 3D | 519093 |
|---|
| 1/2″ 4D | 519094 |
|---|
| 1″3/4 3D | 500316 |
|---|
| 1″3/4 | 500300 |
|---|
| 2″ 3D | 500314 |
|---|
| 2″ 4D | 500315 |
|---|
| 2″1/8 | 500301 |
|---|
| 2″1/4 | 500302 |
|---|
| 2″3/8 | 500303 |
|---|
Rings for formers for gas pipes
| Version | Article no. |
|---|
| 1/4 GAS R 30 | 519095 |
|---|
| 3/8 GAS | 519096 |
|---|
| 1/2 GAS | 519022 |
|---|
| 3/4 GAS | 519097 |
|---|
| 1″ GAS | 500304 |
|---|
| 1″1/4 GAS R 127.2 | 500340 |
|---|
| 1″1/4 GAS R 150 | 500305 |
|---|
| 1″1/2 GAS 3D | 500306 |
|---|
| 2″ GAS 3D | 500307 |
|---|
Rings for FLEX 22 formers
| Version | Article no. |
|---|
| Ø 16 mm / 3/8 GAS / 5/8″ | 519021 |
|---|
| 1/2 GAS | 519117 |
|---|
| 3/4 GAS | 519116 |
|---|
Matching formers
The rings belong to:
