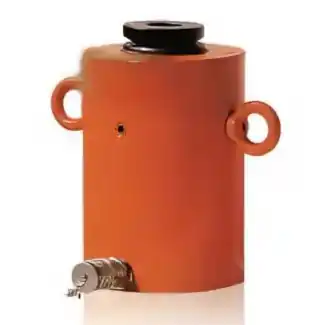

  3. SSVH SR.A light-alloy hydraulic cylinder with spring return, 9 to 160 t

SSVH SR.A light-alloy hydraulic cylinder with spring return, 9 to 160 t

https://tinseltools.com/web/image/product.template/194/image_1920?unique=c25bbcd

0.00 € 0.0 EUR 0.00 € VAT Included

Price on request

  • Cylinder model

This combination does not exist.

Contact Us


Light-alloy single-acting cylinder – 700 bar

SSVH SR.A


9 to 160 t – 40 to 220 mm stroke – from 1.4 kg



SSVH SR.A at a glanceSSVH SR.A without safety nut (L)SSVH SR.A with safety nut (S)Related SSVH cylindersManufacturer information

SSVH SR.A at a glance

The SR.A is the light-alloy version of the SR range. With the same forces and strokes it weighs considerably less: the 60-tonne cylinder with 100 mm stroke, for example, weighs 18.9 kg instead of 24 kg for the steel SR. According to SSVH, this makes the cylinders much easier to handle.

A built-in spring returns the piston, which runs in a guide ring with full-load stop and wiper seal. The flat piston head is threaded and removable; the L version has a smooth piston, the S version a threaded piston with safety nut. Threaded fixing holes in the cylinder base and a screw-on 3050.3 half coupler with dust cap are standard. On request SSVH supplies an oscillating piston head, a threaded cylinder collar, a stabilising or load-spreading base plate and other forces and strokes.

Technical Data

Operating pressure700 bar
Force9 to 160 t (88 to 1,589 kN)
Stroke40 to 220 mm
Bodylight alloy
Piston returnbuilt-in spring
VersionsL: smooth piston; S: threaded piston with safety nut
Oil port1/4 BSP, 3050.3 half coupler with dust cap
Weight1.4 to 86.8 kg
On requestoscillating piston head, threaded cylinder collar, base plate, other forces and strokes

Further information in our guides:

SSVH SR.A without safety nut (L)

Smooth piston; closed height with the piston fully retracted.

VersionArticle no.Force (kN)Piston area (cm²)Stroke (mm)Oil volume (cm³)Closed height (mm)Weight
9 t, 40 mmSR.A.9.40.L8812.5740591271.4 kg / 3.1 lb
9 t, 100 mmSR.A.9.100.L8812.571001402052.4 kg / 5.3 lb
9 t, 160 mmSR.A.9.160.L8812.57160229–3.1 kg / 6.8 lb
14 t, 40 mmSR.A.14.40.L13719.6340931382.2 kg / 4.9 lb
14 t, 100 mmSR.A.14.100.L13719.631002242033.2 kg / 7.1 lb
14 t, 160 mmSR.A.14.160.L13719.631603552684.1 kg / 9 lb
14 t, 200 mmSR.A.14.200.L13719.632004423134.9 kg / 10.8 lb
20 t, 40 mmSR.A.20.40.L19828.27401501483.8 kg / 8.4 lb
20 t, 100 mmSR.A.20.100.L19828.27100344–5.3 kg / 11.7 lb
20 t, 160 mmSR.A.20.160.L19828.271605382726.8 kg / 15 lb
20 t, 220 mmSR.A.20.220.L19828.272207333328.3 kg / 18.3 lb
40 t, 40 mmSR.A.40.40.L39756.74402931547.8 kg / 17.2 lb
40 t, 100 mmSR.A.40.100.L39756.7410068422110.8 kg / 23.8 lb
40 t, 160 mmSR.A.40.160.L39756.741601,07028113.6 kg / 30 lb
40 t, 220 mmSR.A.40.220.L39756.742201,45534116.2 kg / 35.7 lb
60 t, 40 mmSR.A.60.40.L60686.594047616113.4 kg / 29.5 lb
60 t, 100 mmSR.A.60.100.L60686.591001,09022818.9 kg / 41.7 lb
60 t, 160 mmSR.A.60.160.L60686.591601,69328823.6 kg / 52 lb
60 t, 220 mmSR.A.60.220.L60686.592202,29534827.9 kg / 61.5 lb
80 t, 40 mmSR.A.80.40.L792113.14062316918.4 kg / 40.6 lb
80 t, 100 mmSR.A.80.100.L792113.11001,41323424.6 kg / 54.2 lb
80 t, 160 mmSR.A.80.160.L792113.11602,18029430.7 kg / 67.7 lb
80 t, 220 mmSR.A.80.220.L792113.12202,96635937.2 kg / 82 lb
100 t, 40 mmSR.A.100.40.L1,077153.94089018222.2 kg / 48.9 lb
100 t, 100 mmSR.A.100.100.L1,077153.91002,00024228.7 kg / 63.3 lb
100 t, 160 mmSR.A.100.160.L1,077153.91603,03030235.4 kg / 78 lb
100 t, 220 mmSR.A.100.220.L1,077153.92204,15037243.5 kg / 95.9 lb
125 t, 40 mmSR.A.125.40.L1,237176.74097918527.1 kg / 59.7 lb
125 t, 100 mmSR.A.125.100.L1,237176.71002,19324534.6 kg / 76.3 lb
125 t, 160 mmSR.A.125.160.L1,237176.71603,40630544.4 kg / 97.9 lb
125 t, 220 mmSR.A.125.220.L1,237176.72204,64537554.2 kg / 119.5 lb
160 t, 40 mmSR.A.160.40.L1,589227401,36921737 kg / 81.6 lb
160 t, 100 mmSR.A.160.100.L1,5892271002,93627747.6 kg / 104.9 lb
160 t, 160 mmSR.A.160.160.L1,5892271604,50433758.4 kg / 128.7 lb
160 t, 220 mmSR.A.160.220.L1,5892272206,10540770.8 kg / 156.1 lb

Data from the SSVH data sheet SR.A; “–”: value being clarified with the manufacturer.

SSVH SR.A with safety nut (S)

Threaded piston with safety nut; closed height including the nut.

VersionArticle no.Force (kN)Piston area (cm²)Stroke (mm)Oil volume (cm³)Closed height (mm)Weight
9 t, 40 mmSR.A.9.40.S8812.5740591431.7 kg / 3.7 lb
9 t, 100 mmSR.A.9.100.S8812.571001402212.7 kg / 6 lb
9 t, 160 mmSR.A.9.160.S8812.571602292863.4 kg / 7.5 lb
14 t, 40 mmSR.A.14.40.S13719.6340931582.8 kg / 6.2 lb
14 t, 100 mmSR.A.14.100.S13719.631002242233.8 kg / 8.4 lb
14 t, 160 mmSR.A.14.160.S13719.631603552884.7 kg / 10.4 lb
14 t, 200 mmSR.A.14.200.S13719.632004423335.5 kg / 12.1 lb
20 t, 40 mmSR.A.20.40.S19828.27401501764.9 kg / 10.8 lb
20 t, 100 mmSR.A.20.100.S19828.271003442406.4 kg / 14.1 lb
20 t, 160 mmSR.A.20.160.S19828.271605383007.9 kg / 17.4 lb
20 t, 220 mmSR.A.20.220.S19828.272207333609.4 kg / 20.7 lb
40 t, 40 mmSR.A.40.40.S39756.74402931899.8 kg / 21.6 lb
40 t, 100 mmSR.A.40.100.S39756.7410068425612.8 kg / 28.2 lb
40 t, 160 mmSR.A.40.160.S39756.741601,07031615.6 kg / 34.4 lb
40 t, 220 mmSR.A.40.220.S39756.742201,45537618.2 kg / 40.1 lb
60 t, 40 mmSR.A.60.40.S60686.594047620417.1 kg / 37.7 lb
60 t, 100 mmSR.A.60.100.S60686.591001,09027122.6 kg / 49.8 lb
60 t, 160 mmSR.A.60.160.S60686.591601,69333127.3 kg / 60.2 lb
60 t, 220 mmSR.A.60.220.S60686.592202,29539131.6 kg / 69.7 lb
80 t, 40 mmSR.A.80.40.S792113.14062321723.8 kg / 52.5 lb
80 t, 100 mmSR.A.80.100.S792113.11001,41328230 kg / 66.1 lb
80 t, 160 mmSR.A.80.160.S792113.11602,18034236.1 kg / 79.6 lb
80 t, 220 mmSR.A.80.220.S792113.12202,96640742.6 kg / 93.9 lb
100 t, 40 mmSR.A.100.40.S1,077153.94089022431.4 kg / 69.2 lb
100 t, 100 mmSR.A.100.100.S1,077153.91002,00028438 kg / 83.8 lb
100 t, 160 mmSR.A.100.160.S1,077153.91603,03034444.7 kg / 98.5 lb
100 t, 220 mmSR.A.100.220.S1,077153.92204,15041452.7 kg / 116.2 lb
125 t, 40 mmSR.A.125.40.S1,237176.74097923338.4 kg / 84.7 lb
125 t, 100 mmSR.A.125.100.S1,237176.71002,19329345.9 kg / 101.2 lb
125 t, 160 mmSR.A.125.160.S1,237176.71603,40635355.8 kg / 123 lb
125 t, 220 mmSR.A.125.220.S1,237176.72204,64542365.8 kg / 145.1 lb
160 t, 40 mmSR.A.160.40.S1,589227401,36926058 kg / 127.9 lb
160 t, 100 mmSR.A.160.100.S1,5892271002,93632063.6 kg / 140.2 lb
160 t, 160 mmSR.A.160.160.S1,5892271604,50438074.4 kg / 164 lb
160 t, 220 mmSR.A.160.220.S1,5892272206,10545086.8 kg / 191.4 lb

Data from the SSVH data sheet SR.A; “–”: value being clarified with the manufacturer.

Dimensions of the SSVH SR.A (letters as in the SSVH dimension drawing, mm)

SizeA – piston ØBCD – piston threadF – collar thread (on request)G – oil portIKMN
9 t406035M20 × 2M60 × 21/4 BSP222558
14 t507043M20 × 2M70 × 21/4 BSP222888
20 t609053M34 × 2M90 × 21/4 BSP22351010
40 t8512075M44 × 2M120 × 21/4 BSP22401010
60 t10516095M50 × 2M160 × 21/4 BSP22451010
80 t120180110M55 × 2M180 × 31/4 BSP24551210
100 t140190127M64 × 2M190 × 31/4 BSP24601210
125 t150210140M74 × 2M210 × 31/4 BSP24601412
160 t170240155M84 × 2M240 × 31/4 BSP24701515
