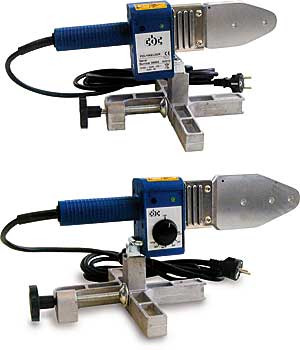

The CBC PL 3 and PL 3-S at a glance
CBC designed the PL 3 and PL 3-S exclusively for socket fusion welding pipes and fittings made of polypropylene (PP) and polyvinylidene fluoride (PVDF). The PL 3 can weld up to 50 mm, and the PL 3-S can weld up to 63 mm. Their bushes are coated with PTFE (Teflon).
Both models have a thermostat that can be set to a fixed temperature (TF, 260–285 °C) or an adjustable temperature (TR, 50–300 °C). The PL 3 draws 550 W at 230 V / 50 Hz and weighs 5.5 kg; the PL 3-S draws 1000 W and weighs 6.5 kg.
CBC supplies the welders in a metal case with a stand for benchtop or floor use, as well as wrenches for fixing the bushes. The PL 3 comes with bushes for 20-, 25-, and 32-mm pipes, and the PL 3-S comes with bushes for pipes ranging from 20 to 63 mm.
Technical Data
| Welding method | socket fusion |
|---|---|
| Pipe materials | PP, PVDF |
| Bushes | PTFE-coated (Teflon) |
| Power supply | 230 V / 50 Hz |
| Included | metal case, stand for bench/floor, spanners, bushes (see table) |
Versions of the PL 3 and PL 3-S
| Version | Article no. | Bushes included | Welding capacity | Power | Temperature | Weight |
|---|---|---|---|---|---|---|
| PL 3 TF 32 | 9710332 | Ø 20, 25, 32 mm | up to Ø 50 mm | 550 W | 260–285 °C | 5.5 kg / 12.1 lb |
| PL 3 TR 32 | 9710333 | Ø 20, 25, 32 mm | up to Ø 50 mm | 550 W | 50–300 °C | 5.5 kg / 12.1 lb |
| PL 3-S TF 63 | 9710363 | Ø 20–63 mm (6 sizes) | up to Ø 63 mm | 1000 W | 260–285 °C | 6.5 kg / 14.3 lb |
| PL 3-S TR 63 | 9710364 | Ø 20–63 mm (6 sizes) | up to Ø 63 mm | 1000 W | 50–300 °C | 6.5 kg / 14.3 lb |
Accessories for the PL 3 and PL 3-S
Matching accessories:
