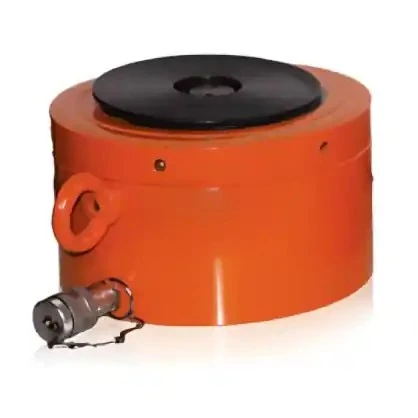

SSVH UB.S.To at a glance
The UB.S.To range covers the high tonnages from 60 to 1000 tonnes. The steel cylinders are fully treated against seizing and corrosion, and despite the low closed height of 125 to 295 mm the piston keeps a long guide. The threaded piston carries a safety nut: once the load is in position, it is secured mechanically and no longer depends on the oil pressure.
SSVH names civil engineering, building construction and heavy industry as typical fields: positioning, shimming and lifting components that need very high forces. A relief hole limits the stroke, the oscillating piston head (±3°, with stop) compensates for slight misalignment, and the load returns the piston. Each cylinder has a 3/8 NPT female port with a 3050.3 half coupler and dust cap.
Technical Data
| Operating pressure | 700 bar |
|---|---|
| Force | 60 to 1000 t (606 to 10,164 kN) |
| Stroke | 50 mm (60 and 100 t), 45 mm (160 to 1000 t) |
| Closed height with oscillating head | 125 to 295 mm |
| Piston | threaded, with safety nut and oscillating head ±3° |
| Piston return | by the load |
| Oil port | 3/8 NPT female, 3050.3 half coupler with dust cap |
| Weight | 12.5 to 478 kg |
Further information in our guides:
The ten SSVH UB.S.To models
Closed height including safety nut and oscillating head.
| Version | Article no. | Force (kN) | Piston area (cm²) | Stroke (mm) | Oil volume (cm³) | Closed height (mm) | Weight |
|---|---|---|---|---|---|---|---|
| 60 t | UB.60.50.S.To | 606 | 86.6 | 50 | 430 | 125 | 12.5 kg / 27.6 lb |
| 100 t | UB.100.50.S.To | 1,001 | 143.1 | 50 | 720 | 135 | 23 kg / 50.7 lb |
| 160 t | UB.160.45.S.To | 1,589 | 227 | 45 | 1,020 | 148 | 38 kg / 83.8 lb |
| 200 t | UB.200.45.S.To | 1,984 | 283.5 | 45 | 1,280 | 155 | 47.5 kg / 104.7 lb |
| 260 t | UB.260.45.S.To | 2,661 | 380.1 | 45 | 1,900 | 159 | 65 kg / 143.3 lb |
| 400 t | UB.400.45.S.To | 4,008 | 572.6 | 45 | 2,580 | 178 | 109 kg / 240.3 lb |
| 500 t | UB.500.45.S.To | 4,945 | 706.9 | 45 | 3,180 | 195 | 152 kg / 335.1 lb |
| 600 t | UB.600.45.S.To | 5,987 | 855.3 | 45 | 3,850 | 230 | 216 kg / 476.2 lb |
| 800 t | UB.800.45.S.To | 7,938 | 1,134.2 | 45 | 5,100 | 265 | 330 kg / 727.5 lb |
| 1000 t | UB.1000.45.S.To | 10,164 | 1,452 | 45 | 6,500 | 295 | 478 kg / 1,053.8 lb |
As stated in the SSVH UB.S.To data sheet; different forces or strokes can be ordered.
Dimensions of the SSVH UB.S.To (letters as in the SSVH dimension drawing, mm)
| Size | A – piston Ø | B | C | D | I |
|---|---|---|---|---|---|
| 60 t | 105 | 130 | 94 | 118 | 20 |
| 100 t | 135 | 170 | 127 | 127 | 20 |
| 160 t | 170 | 208 | 154 | 138 | 22 |
| 200 t | 190 | 228 | 188 | 145 | 25 |
| 260 t | 220 | 264 | 188 | 149 | 25 |
| 400 t | 270 | 320 | 254 | 166 | 33 |
| 500 t | 300 | 360 | 286 | 183 | 40 |
| 600 t | 330 | 395 | 322 | 216 | 45 |
| 800 t | 380 | 455 | 364 | 249 | 50 |
| 1000 t | 430 | 520 | 390 | 277 | 60 |
Smaller low-height SSVH cylinders
From 5 tonnes:
