Bending formers for OB/85S, OB/85SB and P/22A

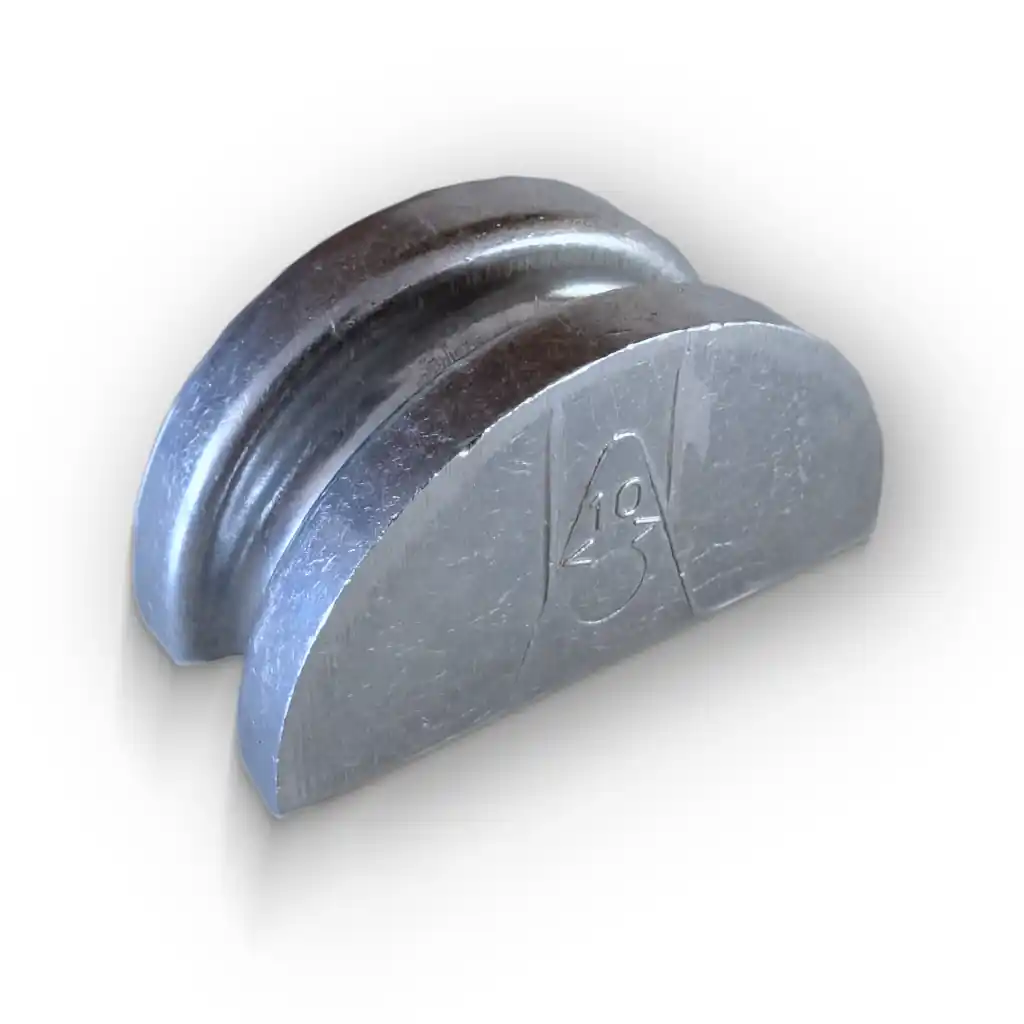

CBC manufactures these formers from die-cast aluminum. They fit the hand-operated OB/85S, the battery-powered OB/85SB, and the mechanical P/22A. According to CBC, the electro-hydraulic OB 2003 E and MC 2005 also use all OB/85S accessories.
Each former has a fixed bending radius corresponding to its diameter, ranging from R 31 mm for Ø 5 to 10 mm to R 114 mm for the Ø 32 mm multilayer former. Select the desired diameter and version; the table lists the code and radius of each former.
In addition to standard formers for annealed copper, CBC supplies formers for multilayer pipes (Ø 26 and 32 mm), coated pipes (Ø 28 mm), hydraulic pipes (Ø 16 and 17 mm), and coated copper pipes, such as Stargas and Stargas Extra. CBC also lists a special former (000640) for rigid coated pipes, available upon request.
Technical Data
| Material | die-cast aluminium |
|---|---|
| Diameters | Ø 5–32 mm, 1/4″–7/8″ |
| Bending radius | fixed per former (see table) |
| Suitable for | OB/85S (also OB/KIT), OB/85SB, P/22A, OB 2003 E, MC 2005 |
All CBC formers for OB/85S, OB/85SB and P/22A
| Version | Article no. | Radius | For |
|---|---|---|---|
| Ø 5 mm | 134001.1 | 31 mm / 1.22 in | annealed copper |
| Ø 6 mm | 134005.1 | 31 mm / 1.22 in | annealed copper |
| Ø 8 mm | 134006.1 | 31 mm / 1.22 in | annealed copper |
| Ø 10 mm | 112035.1 | 31 mm / 1.22 in | annealed copper |
| Ø 12 mm | 112036.1 | 34 mm / 1.34 in | annealed copper |
| Ø 14 mm | 112037.1 | 41 mm / 1.61 in | annealed copper |
| Ø 15 mm | 112038.1 | 48 mm / 1.89 in | annealed copper |
| Ø 16 mm | 112039.1 | 49 mm / 1.93 in | annealed copper |
| Ø 17 mm | 112040.1 | 51 mm / 2.01 in | annealed copper |
| Ø 18 mm | 112041.1 | 72 mm / 2.83 in | annealed copper |
| Ø 20 mm | 112042.1 | 80 mm / 3.15 in | annealed copper |
| Ø 22 mm | 112043.1 | 88 mm / 3.46 in | annealed copper |
| Ø 24 mm | 112044.1 | 90 mm / 3.54 in | annealed copper |
| Ø 26 mm | 112045.1 | 95 mm / 3.74 in | multilayer pipe |
| Ø 28 mm | 112046.1 | 100 mm / 3.94 in | coated pipe |
| Ø 32 mm | 134013.1 | 114 mm / 4.49 in | multilayer pipe |
| 1/4″ | 112086.1 | 31 mm / 1.22 in | annealed copper |
| 5/16″ | 112087.1 | 31 mm / 1.22 in | annealed copper |
| 3/8″ | 112088.1 | 31 mm / 1.22 in | annealed copper |
| 1/2″ | 112089.1 | 34 mm / 1.34 in | annealed copper |
| 5/8″ | 112090.1 | 49 mm / 1.93 in | annealed copper |
| 3/4″ | 112091.1 | 80 mm / 3.15 in | annealed copper |
| 7/8″ | 112092.1 | 88 mm / 3.46 in | annealed copper |
| Ø 16 mm hydraulic | 112065.1 | 63 mm / 2.48 in | hydraulic pipe |
| Ø 17 mm hydraulic | 112066.1 | 64 mm / 2.52 in | hydraulic pipe |
| Ø 12 mm Stargas | 112120 | not stated | Stargas pipe |
| Ø 14-15 mm Stargas | 112121 | not stated | Stargas pipe |
| Ø 16-18 mm Stargas | 112123 | not stated | Stargas pipe |
| Ø 22 mm Stargas | 112124 | not stated | Stargas pipe |
| Ø 12 mm Stargas-Extra | 112140 | not stated | Stargas-Extra pipe |
| Ø 14 mm Stargas-Extra | 112141 | not stated | Stargas-Extra pipe |
| Ø 16-18 mm Stargas-Extra | 112120.1 | not stated | Stargas-Extra pipe |
| Ø 22 mm Stargas-Extra | 112144 | not stated | Stargas-Extra pipe |
The formers for hydraulic pipes belong to the OB/85S+ and OB/85SB+.
Matching counterformers and machines
The formers work with:
- CBC counterformers for OB/85S, OB/85SB and P/22A
- CBC OB/85S hydraulic hand pipe bender
- CBC OB/85SB battery-powered hydraulic pipe bender
- CBC P/22A mechanical hand pipe bender
- CBC OB/85S+ for hydraulic pipes
- CBC MC 2005 electro-hydraulic pipe bender with separate pump
- CBC OB 2003 E electro-hydraulic pipe bender
- CBC OB/KIT hydraulic pipe bender with flaring and expanding kit
