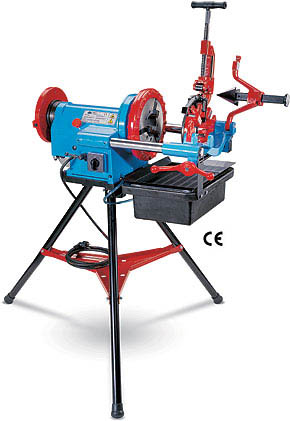

The CBC 230 at a glance
The CBC 230 extends the range of the CBC 220 to 3". It threads, cuts, and deburrs metal pipes from 1/4" to 3" and can reach up to 4" with the Mod. 97 adapter. It comes with two self-opening die heads: one for pipes from 1/8" to 2" and one for pipes from 2 1/2" to 3".
The 1.5 kW single-phase induction motor (230 V, 50 Hz, 11 A) turns the die heads at 15 or 30 RPM. CBC lists the machine as having two speeds. A built-in gear pump lubricates the chasers, and handwheel feed for the tool carriage and an emergency stop button with manual reset are included.
A pipe cutter (1/8″–3″), a deburrer (3/8″–3″), a folding stand, and BSPT chasers (1/2″–3/4″, 1″–2″, and 2 1/2″–3″) are included. The CBC 230 measures 1200 x 1100 x 1200 mm with the stand and weighs 60 kg.
Technical Data
| Pipe range | 1/4″ to 3″; up to 4″ with adapter Mod. 97 |
|---|---|
| Motor | single-phase induction motor 230 V / 50 Hz / 1.5 kW / 11 A, 2800 rpm |
| Die head speed | 15–30 rpm (2 speeds) |
| Die heads | 2, self-opening: 1/8″–2″ and 2″1/2–3″ |
| Chaser lubrication | built-in gear pump |
| Dimensions with stand (L × W × H) | 1,200 × 1,100 × 1,200 mm / 47.24 × 43.31 × 47.24 in |
| Weight | 60 kg / 132.3 lb |
| Included | 2 die heads, pipe cutter 1/8″–3″, deburrer 3/8″–3″, folding stand, BSPT dies 1/2″–3″ |
| Optional | dies BSPP, NPT, BSW, MA, HSS; left-hand dies up to 2″ |
Threading capacity of the CBC 230
| Thread | Min. Ø | Max. Ø |
|---|---|---|
| Gas tapered (BSPT) | 1/4″ | 3″ |
| Gas cylindrical (BSPP) | 1/4″ | 2″ |
| American tapered (NPT) | 1/2″ | 2″ |
| Whitworth (BSW) | 5/16″ | 2″ |
| Metric (MA) | 6 mm | 45 mm |
Standard version of the CBC 230
| Version | Article no. |
|---|---|
| 230, 230 V | 9350330 |
