Counterformers for OB/85S, OB/85SB and P/22A

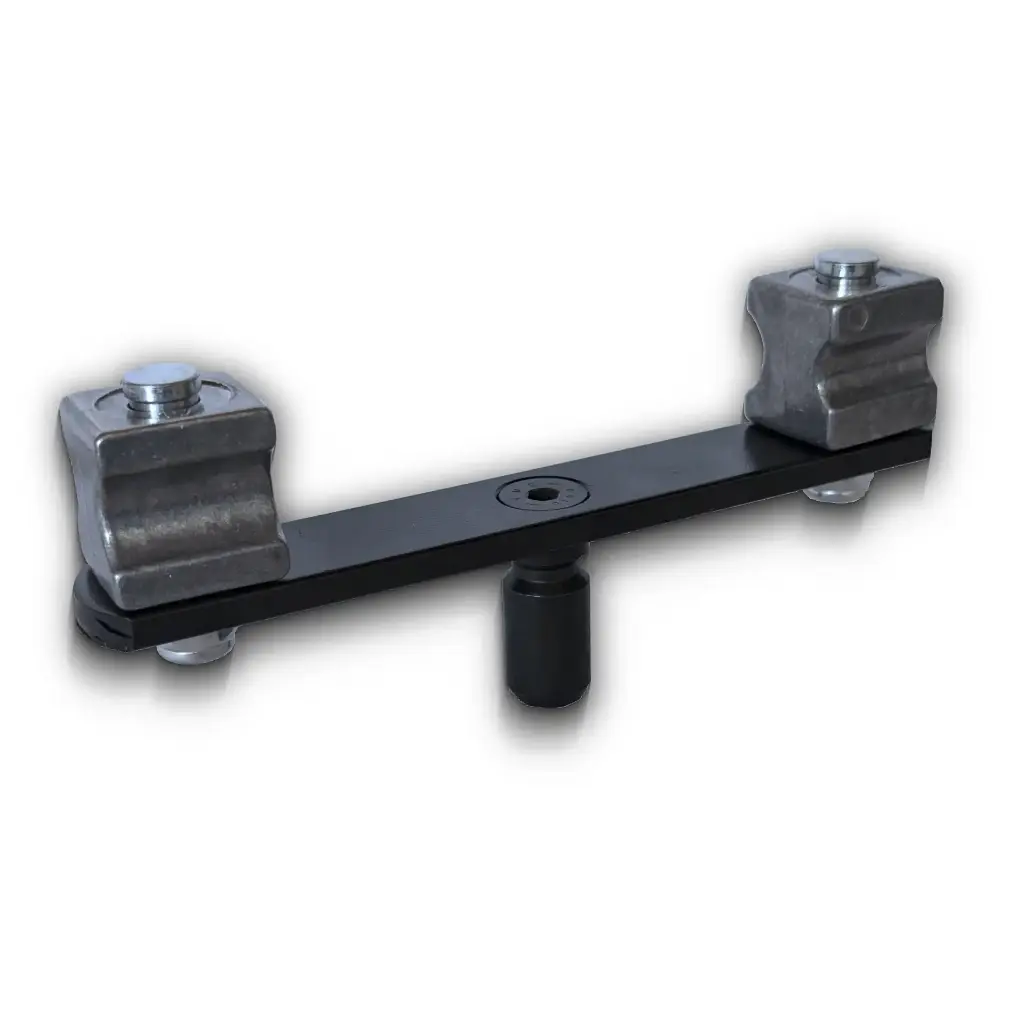

CBC counterformers are made of steel with die-cast aluminum sides. They snap onto the machine with a simple press, eliminating the need for screws or bolts. One counterformer can serve several formers. For example, the 10–12 mm counterformer can be used for 10 and 12 mm pipes, the 14–17 mm counterformer can be used for 14 to 17 mm pipes as well as 10 and 12 mm pipes, and the 18–22 mm counterformer can be used for 18 to 22 mm pipes.
There are also counterformers for multilayer pipes in the following sizes: Ø 16, 20, 26, and 32 mm. The Ø 32 mm counterformer is designed specifically for the P/22A. For coated pipes, there is a counterformer for Ø 28 mm. Reinforced counterformers for hydraulic pipes, the 14–17 and 18–22, belong to the OB/85S+ and OB/85SB+ and each has its own tie rod. Counterformers for Stargas and Stargas Extra pipes complete the range. CBC also offers a special counterformer (000641) for rigid coated pipes, available upon request.
Technical Data
| Design | steel with die-cast aluminium sides |
|---|---|
| Mounting | quick coupling without screws or bolts |
| Suitable for | OB/85S (also OB/KIT), OB/85SB, P/22A, OB 2003 E, MC 2005 |
All CBC counterformers for OB/85S, OB/85SB and P/22A
| Version | Article no. | For | Machines |
|---|---|---|---|
| Ø 10-12 mm | 000003 | annealed copper | OB/85S, OB/85SB, P/22A |
| Ø 14-17 mm | 000014 | annealed copper | OB/85S, OB/85SB, P/22A |
| Ø 18-22 mm | 000012 | annealed copper | OB/85S, OB/85SB, P/22A |
| Ø 16 mm | 000113 | multilayer pipe | OB/85S, OB/85SB |
| Ø 20 mm | 000114 | multilayer pipe | OB/85S, OB/85SB |
| Ø 26 mm | 000008 | multilayer pipe | OB/85S, OB/85SB, P/22A |
| Ø 28 mm | 000009 | coated pipe | OB/85S, OB/85SB, P/22A |
| Ø 32 mm | 000461 | multilayer pipe | OB/85S, OB/85SB |
| Ø 32 mm P/22A | 000493 | multilayer pipe | P/22A |
| Ø 14-17 mm hydraulic | 000059 | hydraulic pipe | OB/85S+, OB/85SB+ |
| Ø 18-22 mm hydraulic | 000042 | hydraulic pipe | OB/85S+, OB/85SB+ |
| Ø 12-14-15 mm Stargas | 0001095 | Stargas pipe | OB/85S |
| Ø 16-18-22 mm Stargas | 0001096 | Stargas pipe | OB/85S |
| Ø 12 mm Stargas-Extra | 0001190 | Stargas-Extra pipe | OB/85S |
| Ø 14-16-18 mm Stargas-Extra | 0001191 | Stargas-Extra pipe | OB/85S |
| Ø 22 mm Stargas-Extra | 0001192 | Stargas-Extra pipe | OB/85S |
Matching formers and machines
The counterformers work with:
- CBC bending formers for OB/85S, OB/85SB and P/22A
- CBC OB/85S hydraulic hand pipe bender
- CBC P/22A mechanical hand pipe bender
- CBC OB/85SB+ battery pipe bender for hydraulic pipes
- CBC MC 2005 electro-hydraulic pipe bender with separate pump
- CBC OB 2003 E electro-hydraulic pipe bender
- CBC OB/KIT hydraulic pipe bender with flaring and expanding kit
Manufacturer information
Manufacturer details in accordance with the EU General Product Safety Regulation (EU) 2023/988:
| Manufacturer | C.B.C. S.r.l. |
|---|---|
| Postal address | Via L. Einaudi, 3, 42016 Guastalla (RE), Italy |
