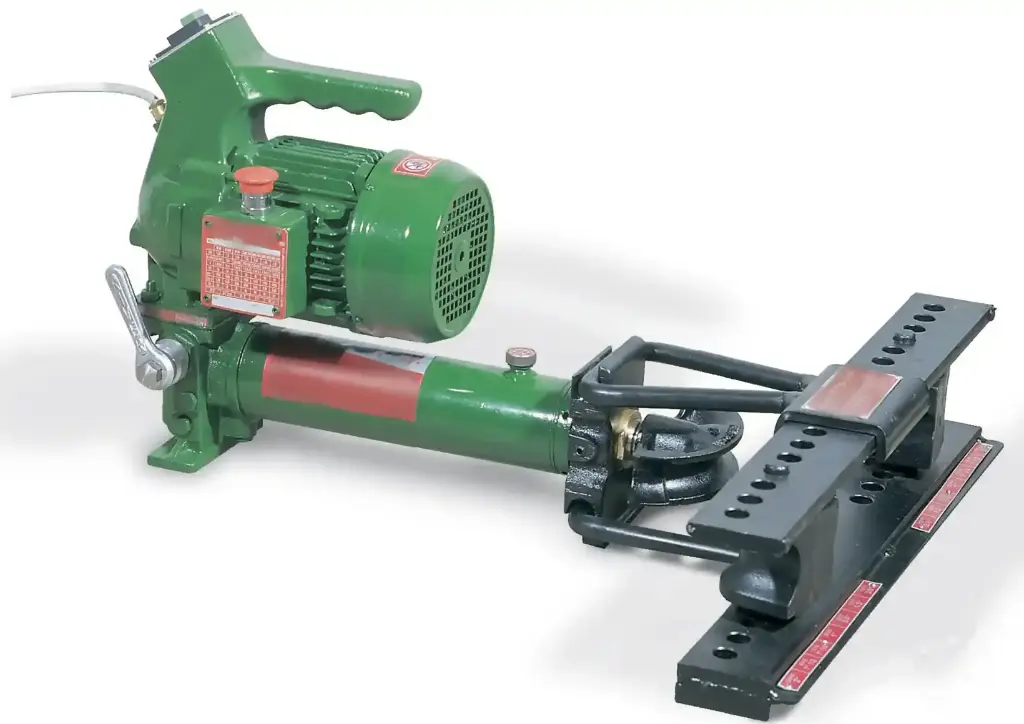

The electric pipe benders M116 to GME 600 at a glance
On the M116 to GME 600, an electric motor drives the hydraulic pump, so bends from 3/8″ up to 6″ are made without pumping by hand. The bending unit matches the hand-pump model of the same size: according to the spare parts list, cylinder, piston, plates and side pins are identical – the M60, for example, uses the parts of the N. 30 and the GME 400 those of the GM 400.
The M116 and the M60 are also available as B versions for 230 V single-phase current, while all other models run on 400 V three-phase current. For series work, the M60 can be fitted with an automatic limit switch device with motor protection. For high-pressure pipes, please send us an enquiry with the pipe specification.
Technical Data
| Drive | electric motor with hydraulic pump |
|---|---|
| Power supply | 400 V three-phase; M116B and M60B 230 V single-phase |
| Pipe sizes | gas pipes 3/8″ to 6″ (depending on the model) |
| Series work | M60: limit switch device with motor protection (option) |
| Hydraulic oil | special oil for electric pipe benders, 2 kg can |
Models M116 to GME 600 with power supply and forms
Bending forms and pressure pads for gas pipes are part of the delivery; the GME 400, GME 500 and GME 600 bend the sizes from 3″1/2 with pressure pads.
| Version | Article no. | Power supply | Bending forms | Pressure pads |
|---|---|---|---|---|
| M116 · 400 V · 3/8″–1″1/2 | CM00 120 | 400 V three-phase | 3/8″–1″1/2 | – |
| M116B · 230 V · 3/8″–1″1/2 | CM00 122 | 230 V single-phase | 3/8″–1″1/2 | – |
| M60 · 400 V · 3/8″–2″ | CM00 124 | 400 V three-phase | 3/8″–2″ | – |
| M60B · 230 V · 3/8″–2″ | CM00 126 | 230 V single-phase | 3/8″–2″ | – |
| M64 · 400 V · 3/8″–2″1/2 | CM00 128 | 400 V three-phase | 3/8″–2″1/2 | – |
| GME 300 · 400 V · 3/8″–3″ | CM00 130 | 400 V three-phase | 3/8″–3″ | – |
| GME 400 · 400 V · 1″–4″ | CM00 132 | 400 V three-phase | 1″–3″ | 3″1/2, 4″ |
| GME 500 · 400 V · 1″1/2–5″ | CM00 134 | 400 V three-phase | 1″1/2–3″ | 3″1/2, 4″, 5″ |
| GME 600 · 400 V · 1″1/2–6″ | CM00 136 | 400 V three-phase | 1″1/2–3″ | 3″1/2, 4″, 5″, 6″ |
According to the manufacturer, models up to 3″ can also be supplied with a single-phase motor on request.
Forms and pressure pads of the M116 to GME 600
| Size | Pipe Ø inside × outside (mm) | Bending radius | Weight |
|---|---|---|---|
| 3/8″ | 12 × 17 | 45 mm / 1.77 in | 0.7 kg / 1.5 lb |
| 1/2″ | 15 × 21 | 55 mm / 2.17 in | 1 kg / 2.2 lb |
| 3/4″ | 20 × 27 | 70 mm / 2.76 in | 1.4 kg / 3.1 lb |
| 1″ | 26 × 34 | 95 mm / 3.74 in | 1.8 kg / 4 lb |
| 1″1/4 | 33 × 42 | 137 mm / 5.39 in | 3.2 kg / 7.1 lb |
| 1″1/2 | 40 × 49 | 150 mm / 5.91 in | 3.5 kg / 7.7 lb |
| 2″ | 50 × 60 | 220 mm / 8.66 in | 6.4 kg / 14.1 lb |
| 2″1/2 | 66 × 76 | 340 mm / 13.39 in | 16.1 kg / 35.5 lb |
| 3″ | 80 × 90 | 530 mm / 20.87 in | 29.7 kg / 65.5 lb |
| 3″1/2 (pressure pad) | 90 × 102 | Ø E × 18 | 21.2 kg / 46.7 lb |
| 4″ (pressure pad) | 102 × 114 | Ø E × 18 | 22.4 kg / 49.4 lb |
| 5″ (pressure pad) | 128 × 141 | Ø E × 18 | 23.8 kg / 52.5 lb |
| 6″ (pressure pad) | 154 × 168 | Ø E × 18 | 24.1 kg / 53.1 lb |
The same forms and pressure pads are used on the hand-pump models; radius of the pads as stated by the manufacturer.
Hand-pump versions and accessories for the M116 to GME 600
Without electric motor, the same pipe sizes are covered by the hand-pump models. Bending forms, special oil, the limit switch device for the M60 and spare parts:
Manufacturer information
Manufacturer details in accordance with the EU General Product Safety Regulation (EU) 2023/988:
| Manufacturer | RIVER S.p.A. |
|---|---|
| Postal address | Strada della Cisa 51/53, 42041 Brescello (RE), Italy |
