The UNI 70/C at a glance

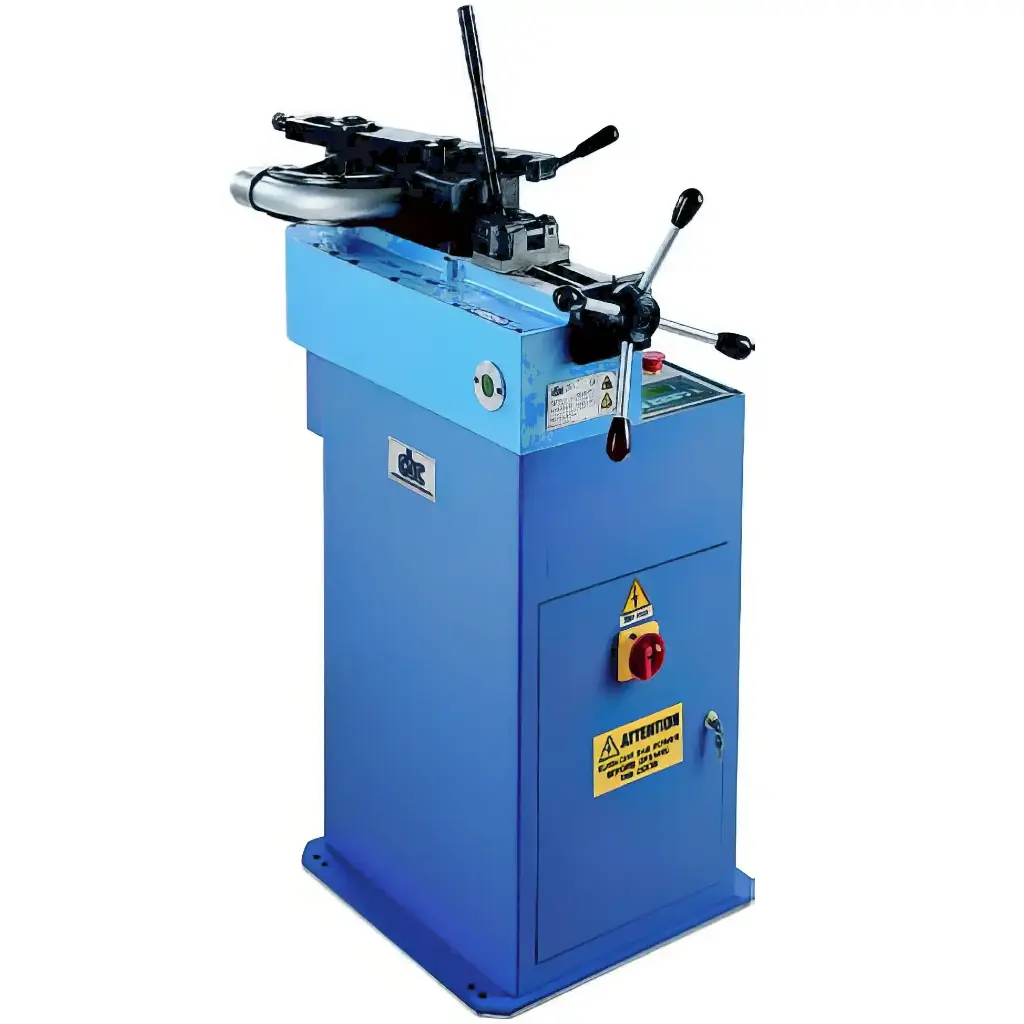

The CBC UNI 70/C is a three-phase, digitally controlled pipe bending machine designed for large diameters. It bends copper, steel, stainless steel, and aluminum pipes with an outside diameter of up to 60 mm and square tubes with dimensions of up to 50 x 50 mm. The machine produces optimum and constant radii that keep the pipe cross-section intact.
A self-braking, two-speed motor (2.3/3.1 kW, 380 V) powers the machine. The touchscreen control stores up to 50 programs, each with up to nine bending angles. Its robust design, featuring a spheroidal cast iron body on a steel base frame, a quick guide positioning device for the counterformers, and two interchangeable output shafts, makes the UNI 70/C ideal for plumbing, boat building, hydraulics, and plant construction.
Technical Data
| Article no. | 9200600.2 |
|---|---|
| Drive | self-braking asynchronous three-phase motor, 2 speeds, 2.3/3.1 kW |
| Power supply | 380 V / 50 Hz (other voltages on request) |
| Control | touchscreen control with display, multilingual; control panel 24 V |
| Program memory | up to 50 programs with up to 9 bending angles each |
| Return | automatic at end of stroke |
| Max. bending angle | 180° |
| Standard bending radii | 3D and 4D |
| Body | spheroidal cast iron on steel base frame |
| Dimensions L × W × H | 810 × 400 × 1,100 mm / 31.89 × 15.75 × 43.31 in |
| Weight | 210 kg / 463 lb |
| Standard version | 380 V / 50 Hz, quick guide positioning device for counterformers, 2 interchangeable output shafts |
Bending capacity of the UNI 70/C
The UNI 70/C bends all metal pipes listed up to a 60 mm outside diameter without a mandrel. The maximum wall thickness ranges from 2 mm for electrical installation pipes to 8 mm for aluminum pipes. It can also bend square tubes up to 50 x 50 mm with a 4 mm wall thickness.
Maximum bending angle: 180°.
Bending capacity by pipe material
| Pipe material | Max. outside diameter | Max. wall thickness |
|---|---|---|
| Hard and Soft Copper Pipes, Annealed Brass Pipes | 60 mm / 2.36 in | 4 mm / 0.16 in |
| Steel Pipes for Electrical Installations | 60 mm / 2.36 in | 2 mm / 0.08 in |
| Stainless Steel AISI 304/316 Pipes | 60 mm / 2.36 in | 3 mm / 0.12 in |
| Hydraulic Steel Pipes St 35.4 | 60 mm / 2.36 in | 4 mm / 0.16 in |
| Furniture Tubes | 60 mm / 2.36 in | 3 mm / 0.12 in |
| FE Boiler Pipes | 60 mm / 2.36 in | 4 mm / 0.16 in |
| Aluminium Pipes | 60 mm / 2.36 in | 8 mm / 0.31 in |
| Gas Pipes UNI 5745 | 2" | standard |
| Square Tubes | 50 × 50 mm / 1.97 × 1.97 in | 4 mm / 0.16 in |
Special diameters and bending radii on request.
Further information in our guides:
- Pipe materials for tube bending – an overview
- The bending radius in tube bending – the ultimate guide
Accessories for the UNI 70/C
Matching accessories:
