The UNI 76 at a glance

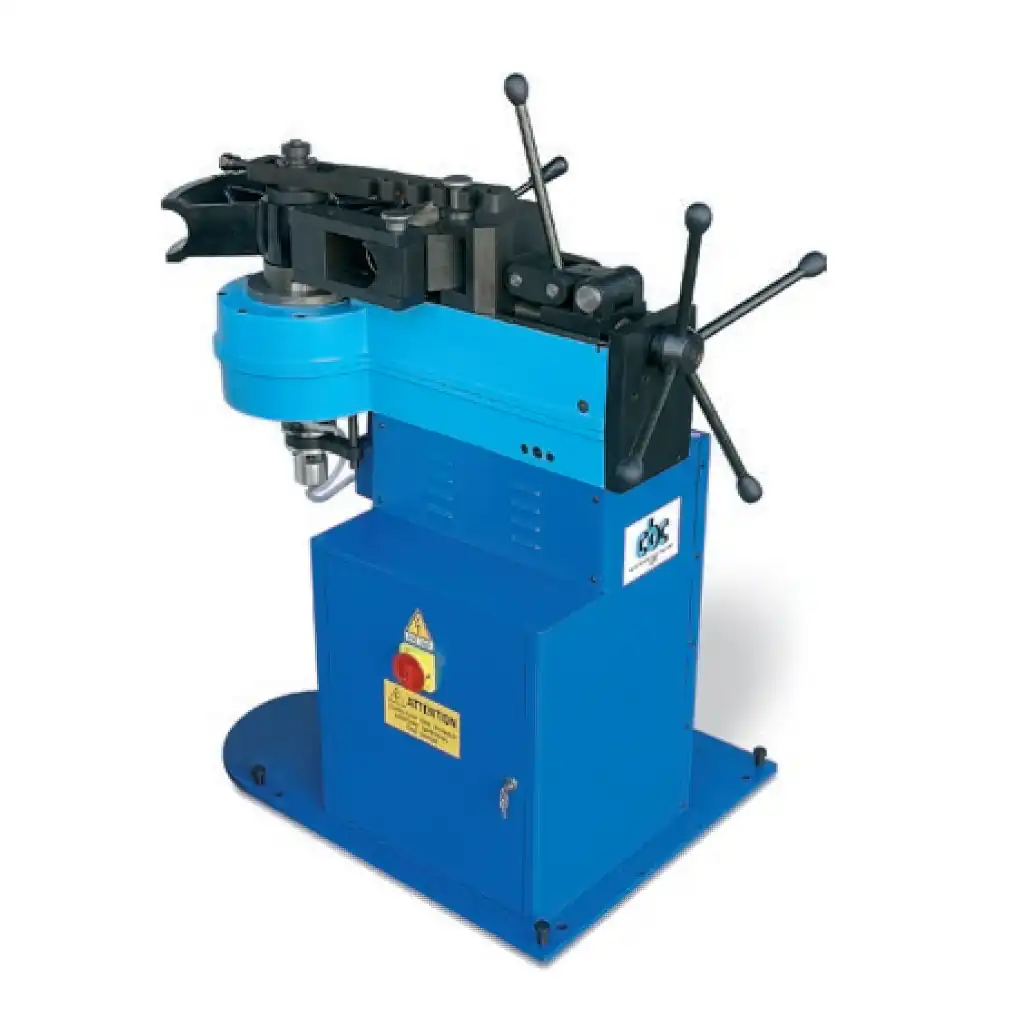

The CBC UNI 76 is the universal machine in the UNI series for large pipe diameters. It bends copper, steel, stainless steel, and aluminum pipes with an outside diameter of up to 76 mm, gas pipes with an outside diameter of up to 2 1/2", and square tubes with dimensions of up to 60 x 60 mm. In addition to plumbing, hydraulics, and industrial applications, it is particularly well-suited for ornamental metalwork.
Its stability on 430 kg comes from a self-braking, two-speed, three-phase motor (3/4 kW, 380 V) and a spheroidal cast iron body on a steel base frame. The touchscreen control stores up to 50 programs, each with up to nine bending angles. It includes three interchangeable output shafts, a quick guide positioning device, a tie rod, and a counterformer support reduction.
Technical Data
| Article no. | 9200676.2 |
|---|---|
| Drive | self-braking asynchronous three-phase motor, 2 speeds, 3/4 kW |
| Power supply | 380 V / 50 Hz (other voltages on request) |
| Control | touchscreen control with display, multilingual; control panel 24 V |
| Program memory | up to 50 programs with up to 9 bending angles each |
| Return | automatic at end of stroke |
| Max. bending angle | 180° |
| Standard bending radii | 3D and 4D |
| Body | spheroidal cast iron on steel base frame |
| Dimensions L × W × H | 1,000 × 710 × 1,100 mm / 39.37 × 27.95 × 43.31 in |
| Weight | 430 kg / 948 lb |
| Standard version | 380 V / 50 Hz, quick guide positioning device, 3 interchangeable output shafts, tie rod, counterformer support reduction |
Bending capacity of the UNI 76
All of the listed metal pipes can be bent to a maximum outside diameter of 76 mm. Wall thicknesses are 8 mm for copper and aluminum, 6 mm for steel, hydraulic, furniture, and boiler pipes, and 4 mm for stainless steel AISI 304/316. Square tubes are possible up to 60 x 60 x 3 mm.
Maximum bending angle: 180°, without mandrel.
Bending capacity by pipe material
| Pipe material | Max. outside diameter | Max. wall thickness |
|---|---|---|
| Hard and Soft Copper Pipes, Annealed Brass Pipes | 76 mm / 2.99 in | 8 mm / 0.31 in |
| Steel Pipes for Electrical Installations | 76 mm / 2.99 in | 6 mm / 0.24 in |
| Stainless Steel AISI 304/316 Pipes | 76 mm / 2.99 in | 4 mm / 0.16 in |
| Hydraulic Steel Pipes St 35.4 | 76 mm / 2.99 in | 6 mm / 0.24 in |
| Furniture Tubes | 76 mm / 2.99 in | 6 mm / 0.24 in |
| FE Boiler Pipes | 76 mm / 2.99 in | 6 mm / 0.24 in |
| Aluminium Pipes | 76 mm / 2.99 in | 8 mm / 0.31 in |
| Gas Pipes UNI 5745 | 2"1/2 | standard |
| Square Tubes | 60 × 60 mm / 2.36 × 2.36 in | 3 mm / 0.12 in |
Special diameters and bending radii are available on request.
