The UNI 70/HC at a glance

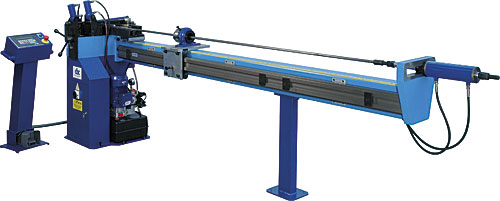

The CBC UNI 70/HC is designed for mandrel bending. Large diameters and thin, delicate pipes maintain their cross-section because the mandrel supports the wall from the inside, ensuring optimum, constant bending radii down to twice the pipe diameter. It is ideal for plumbing, shipbuilding, oil hydraulics, industrial applications, and ornamental work.
The hydraulic system is at the core of the machine. A computerized hydraulic unit opens and closes the clamping and bending tools. The mandrel extraction is programmable for precise bending. A self-braking, two-speed, three-phase motor (2.3/3.1 kW, 380 V) drives the machine, which is made of spheroidal cast iron and sits on a steel base. The digital control panel has a display and can store up to 50 programs, each with up to nine sequential bending angles. The bending plane is set with a mechanical positioning spindle.
Each version includes a hydraulic mandrel extraction device, a plane regulator, stops, a base for a sliding counterformer with an anti-wrinkle support, and a 20 mm mandrel rod. The usable length is determined by the length of the mandrel kit (2 to 6 m). Tooling is made for each pipe size, including steel formers from 10 to 50.8 mm and corresponding inch sizes. Other tooling includes clamping jaws, counter rollers, sliding counterformers, anti-wrinkle dies, and fixed, articulated, and ball mandrels. We can provide tooling for your pipe.
Technical Data
| Drive | self-braking asynchronous three-phase motor, 2 speeds, 2.3/3.1 kW |
|---|---|
| Power supply | 380 V / 50 Hz (other voltages on request) |
| Control | digital control with microprocessor and display |
| Program memory | up to 50 programs with up to 9 bending angles each |
| Hydraulics | computerized closing and opening of the clamping and bending tools |
| Mandrel extraction | hydraulic, programmable |
| Minimum bending radius | 2 × pipe outside diameter |
| Mandrel rod | 20 mm / 0.79 in |
| Body | spheroidal cast iron on steel base frame |
| Dimensions (machine only) L × W × H | 830 × 630 × 1,270 mm / 32.68 × 24.8 × 50 in |
| Weight | 400 kg / 881.8 lb |
| Standard version | 380 V / 50 Hz, hydraulic clamping, mandrel kit with hydraulic mandrel extraction, plane regulator, stops, sliding counterformer base with anti-wrinkle support, mandrel rod Ø 20 mm |
Mandrel kit lengths of the UNI 70/HC
The five versions only differ in the length of the mandrel kit. The 2 m kit allows for bends up to 1.55 m from the pipe end, while the 6 m kit allows for bends up to 5.55 m.
| Version | Article no. | Usable length |
|---|---|---|
| Mandrel kit 2 m | 9210102 | 1.55 m |
| Mandrel kit 3 m | 9210103 | 2.55 m |
| Mandrel kit 4 m | 9210104 | 3.55 m |
| Mandrel kit 5 m | 9210105 | 4.55 m |
| Mandrel kit 6 m | 9210106 | 5.55 m |
Bending capacity of the UNI 70/HC with mandrel
The UNI 70/HC can process metal pipes up to 50 mm in diameter with a mandrel. It can process stainless steel pipes up to 50.8 mm and gas pipes up to 48 mm. The maximum wall thickness is 4 mm for aluminum, 3 mm for copper and hydraulic pipes, and 1.5 mm for stainless steel. Square tubes can be bent up to 40 x 40 x 3 mm.
Minimum bending radius: 2 × pipe outside diameter.
Bending capacity by pipe material
| Pipe material | Max. outside diameter | Max. wall thickness |
|---|---|---|
| Hard and Soft Copper Pipes, Annealed Brass Pipes | 50 mm / 1.97 in | 3 mm / 0.12 in |
| Steel Pipes for Electrical Installations | 50 mm / 1.97 in | 2 mm / 0.08 in |
| Stainless Steel AISI 304/316 Pipes | 50.8 mm / 2 in | 1.5 mm / 0.06 in |
| Hydraulic Steel Pipes St 35.4 | 50 mm / 1.97 in | 3 mm / 0.12 in |
| Furniture Tubes | 50 mm / 1.97 in | 2 mm / 0.08 in |
| FE Boiler Pipes | 50 mm / 1.97 in | 2 mm / 0.08 in |
| Aluminium Pipes | 50 mm / 1.97 in | 4 mm / 0.16 in |
| Gas Pipes UNI 5745 | 48 mm / 1.89 in | 3 mm / 0.12 in |
| Square Tubes | 40 × 40 mm / 1.57 × 1.57 in | 3 mm / 0.12 in |
Special diameters and bending radii on request.
