The UNI 70/C-OS at a glance

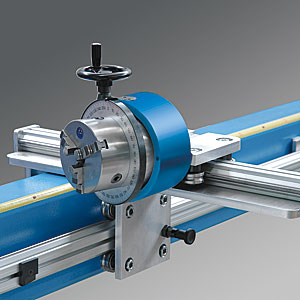

CBC built the UNI 70/C-OS, an electro-hydraulic, digitally controlled pipe bender that can work with or without a mandrel. The clamping devices operate hydraulically, the bending is computer-controlled, and a swivel kit adjusts the machine for either method of bending.
The standard version (380 V/50 Hz) comes with a swivel kit that includes a hydraulic mandrel extractor, a plane regulator, stops, a base for the sliding counterformer with anti-wrinkle support, and a 20 mm mandrel rod. The UNI 70/C-OS is available in five lengths ranging from 2 to 6 meters, providing a usable length ranging from 1.55 to 5.55 meters.
Formers, clamping jaws, sliding counterformers, anti-wrinkle dies, and mandrels are matched to each pipe size. Please contact us for a quote.
CBC does not publish separate figures for the UNI 70/C-OS. Since it is a version of the UNI 70/C, we provide the capacity, dimensions, and weight of the UNI 70/C without a mandrel and of the UNI 70/C with a mandrel kit.
Technical Data
| Type | electro-hydraulic, digital |
|---|---|
| Power supply | 380 V / 50 Hz |
| Clamping | hydraulic clamping devices |
| Bending control | computerized |
| Mandrel extraction | hydraulic |
| Mandrel rod | 20 mm / 0.79 in |
| Dimensions L × W × H (as UNI 70/C) | 810 × 400 × 1,100 mm / 31.89 × 15.75 × 43.31 in |
| Weight (as UNI 70/C) | 210 kg / 463 lb |
| Standard version | 380 V / 50 Hz, swivel kit for bending with and without mandrel with hydraulic mandrel extraction, plane regulator, stops, sliding counterformer base with anti-wrinkle support, mandrel rod Ø 20 mm |
Bending capacity of the UNI 70/C-OS without mandrel
Without a mandrel, the UNI 70/C figures apply to the UNI 70/C-OS. These include metal pipes with an outside diameter of up to 60 mm and walls of up to 2 mm for electrical installation, pipes of up to 8 mm for aluminum, gas pipes of up to 2″, and square tubes of up to 50 x 50 x 4 mm.
Maximum bending angle: 180°.
Bending capacity by pipe material
| Pipe material | Max. outside diameter | Max. wall thickness |
|---|---|---|
| Hard and Soft Copper Pipes, Annealed Brass Pipes | 60 mm / 2.36 in | 4 mm / 0.16 in |
| Steel Pipes for Electrical Installations | 60 mm / 2.36 in | 2 mm / 0.08 in |
| Stainless Steel AISI 304/316 Pipes | 60 mm / 2.36 in | 3 mm / 0.12 in |
| Hydraulic Steel Pipes St 35.4 | 60 mm / 2.36 in | 4 mm / 0.16 in |
| Furniture Tubes | 60 mm / 2.36 in | 3 mm / 0.12 in |
| FE Boiler Pipes | 60 mm / 2.36 in | 4 mm / 0.16 in |
| Aluminium Pipes | 60 mm / 2.36 in | 8 mm / 0.31 in |
| Gas Pipes UNI 5745 | 2" | standard |
| Square Tubes | 50 × 50 mm / 1.97 × 1.97 in | 4 mm / 0.16 in |
Figures as for the UNI 70/C; special diameters and bending radii on request.
Further information in our guides:
- Pipe materials for tube bending – an overview
- The bending radius in tube bending – the ultimate guide
Bending capacity of the UNI 70/C-OS with mandrel
The UNI 70/C with mandrel kit can be used on copper, furniture, boiler, and aluminum pipes up to 50 mm; stainless steel pipes up to 50.8 x 3 mm; and square tubes up to 40 x 40 mm.
Minimum bending radius with mandrel: 2 × pipe outside diameter.
Bending capacity by pipe material
| Pipe material | Max. outside diameter | Max. wall thickness |
|---|---|---|
| Hard and Soft Copper Pipes, Annealed Brass Pipes | 50 mm / 1.97 in | 4 mm / 0.16 in |
| Stainless Steel AISI 304/316 Pipes | 50.8 mm / 2 in | 3 mm / 0.12 in |
| Furniture Tubes | 50 mm / 1.97 in | 3 mm / 0.12 in |
| FE Boiler Pipes | 50 mm / 1.97 in | 4 mm / 0.16 in |
| Aluminium Pipes | 50 mm / 1.97 in | 8 mm / 0.31 in |
| Square Tubes | 40 × 40 mm / 1.57 × 1.57 in | 4 mm / 0.16 in |
Further information in our guides:
- The bending radius in tube bending – the ultimate guide
- Pipe materials for tube bending – an overview
Swivel kit lengths of the UNI 70/C-OS
The only difference between the five versions of the UNI 70/C-OS is the kit length. The usable length shows how far from the pipe end the machine can bend.
| Version | Article no. | Usable length |
|---|---|---|
| Swivel kit 2 m | 9210062 | 1.55 m |
| Swivel kit 3 m | 9210063 | 2.55 m |
| Swivel kit 4 m | 9210064 | 3.55 m |
| Swivel kit 5 m | 9210065 | 4.55 m |
| Swivel kit 6 m | 9210066 | 5.55 m |
