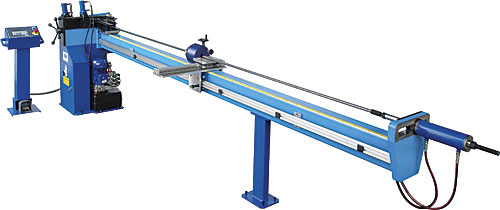

The UNI 70/HC-OS at a glance
The CBC UNI 70/HC-OS is a UNI 70/HC equipped with a swivel kit, offering the ability to bend with or without a mandrel. With the mandrel, thin-walled and delicate pipes up to 50 mm in diameter can be bent down to a radius of twice their diameter. Without the mandrel, pipes up to 60 mm in diameter and square tubes up to 50 x 50 mm can be bent with standard radii of three to four times their diameter.
The machine comes with two additional interchangeable output shafts, which are needed for bending without a mandrel. When working with the mandrel, a computerized hydraulic system opens and closes the clamping and bending tools, and the mandrel is extracted under program control. The self-braking, two-speed, three-phase motor is 2.3/3.1 kW (380 V). The digital control stores up to 50 programs, each with up to nine angles. The spheroidal cast iron machine weighs 400 kg.
The 2- to 6-meter swivel kit includes a hydraulic mandrel extraction device, a plane regulator, stops, a base for the sliding counterformer with anti-wrinkle support, and a 20-millimeter mandrel rod. CBC refers to UNI 70/HC for tooling used with a mandrel and UNI 70/C for tooling without one. Tooling for your pipe size is available upon request.
Technical Data
| Drive | self-braking asynchronous three-phase motor, 2 speeds, 2.3/3.1 kW |
|---|---|
| Power supply | 380 V / 50 Hz (other voltages on request) |
| Control | digital control with microprocessor and display |
| Program memory | up to 50 programs with up to 9 bending angles each |
| Hydraulics | computerized closing and opening of the clamping and bending tools |
| Mandrel extraction | hydraulic, programmable |
| Bending radius | with mandrel from 2 × D; without mandrel 3D/4D |
| Output shafts | 2 additional interchangeable shafts for bending without mandrel |
| Body | spheroidal cast iron on steel base frame |
| Dimensions (machine only) L × W × H | 830 × 630 × 1,270 mm / 32.68 × 24.8 × 50 in |
| Weight | 400 kg / 881.8 lb |
| Standard version | 380 V / 50 Hz, hydraulic clamping, swivel kit for bending with and without mandrel with hydraulic mandrel extraction, plane regulator, stops, sliding counterformer base with anti-wrinkle support, mandrel rod Ø 20 mm |
Swivel kit lengths of the UNI 70/HC-OS
Choose the version based on the length of the swivel kit. The longer the kit, the farther from the pipe end you can bend it. With the 2 m kit, you can bend up to 1.55 m from the pipe end. With the 4 m kit, you can bend up to 3.55 m from the pipe end.
| Version | Article no. | Usable length |
|---|---|---|
| Swivel kit 2 m | 9210202 | 1.55 m |
| Swivel kit 3 m | 9210203 | 2.55 m |
| Swivel kit 4 m | 9210204 | 3.55 m |
| Swivel kit 5 m | 9210205 | – |
| Swivel kit 6 m | 9210206 | – |
Capacity of the UNI 70/HC-OS with mandrel
Using a mandrel, metal pipes up to 50 mm in diameter can be bent. Stainless steel pipes can be up to 50.8 x 1.5 mm, gas pipes up to 48 mm, aluminum pipes up to 4 mm, and copper and hydraulic pipes up to 3 mm. Square tubes are 40 x 40 x 3 mm.
Minimum bending radius with mandrel: 2 x pipe outside diameter.
Bending capacity by pipe material
| Pipe material | Max. outside diameter | Max. wall thickness |
|---|---|---|
| Hard and Soft Copper Pipes, Annealed Brass Pipes | 50 mm / 1.97 in | 3 mm / 0.12 in |
| Steel Pipes for Electrical Installations | 50 mm / 1.97 in | 2 mm / 0.08 in |
| Stainless Steel AISI 304/316 Pipes | 50.8 mm / 2 in | 1.5 mm / 0.06 in |
| Hydraulic Steel Pipes St 35.4 | 50 mm / 1.97 in | 3 mm / 0.12 in |
| Furniture Tubes | 50 mm / 1.97 in | 2 mm / 0.08 in |
| FE Boiler Pipes | 50 mm / 1.97 in | 2 mm / 0.08 in |
| Aluminium Pipes | 50 mm / 1.97 in | 4 mm / 0.16 in |
| Gas Pipes UNI 5745 | 48 mm / 1.89 in | 3 mm / 0.12 in |
| Square Tubes | 40 × 40 mm / 1.57 × 1.57 in | 3 mm / 0.12 in |
Further information in our guides:
Capacity of the UNI 70/HC-OS without mandrel
All listed metal pipes can be bent up to 60 mm without a mandrel. The wall thickness is 8 mm for aluminum, 4 mm for copper, hydraulic, and boiler pipes, and 3 mm for stainless steel and furniture tubes. Gas pipes can be bent up to 60 mm with a standard wall. Square tubes can be bent up to 50 x 50 x 4 mm.
Standard bending radii without mandrel: 3D and 4D.
Bending capacity by pipe material
| Pipe material | Max. outside diameter | Max. wall thickness |
|---|---|---|
| Hard and Soft Copper Pipes, Annealed Brass Pipes | 60 mm / 2.36 in | 4 mm / 0.16 in |
| Steel Pipes for Electrical Installations | 60 mm / 2.36 in | 2 mm / 0.08 in |
| Stainless Steel AISI 304/316 Pipes | 60 mm / 2.36 in | 3 mm / 0.12 in |
| Hydraulic Steel Pipes St 35.4 | 60 mm / 2.36 in | 4 mm / 0.16 in |
| Furniture Tubes | 60 mm / 2.36 in | 3 mm / 0.12 in |
| FE Boiler Pipes | 60 mm / 2.36 in | 4 mm / 0.16 in |
| Aluminium Pipes | 60 mm / 2.36 in | 8 mm / 0.31 in |
| Gas Pipes UNI 5745 | 60 mm / 2.36 in | standard |
| Square Tubes | 50 × 50 mm / 1.97 × 1.97 in | 4 mm / 0.16 in |
Special diameters and bending radii on request.
