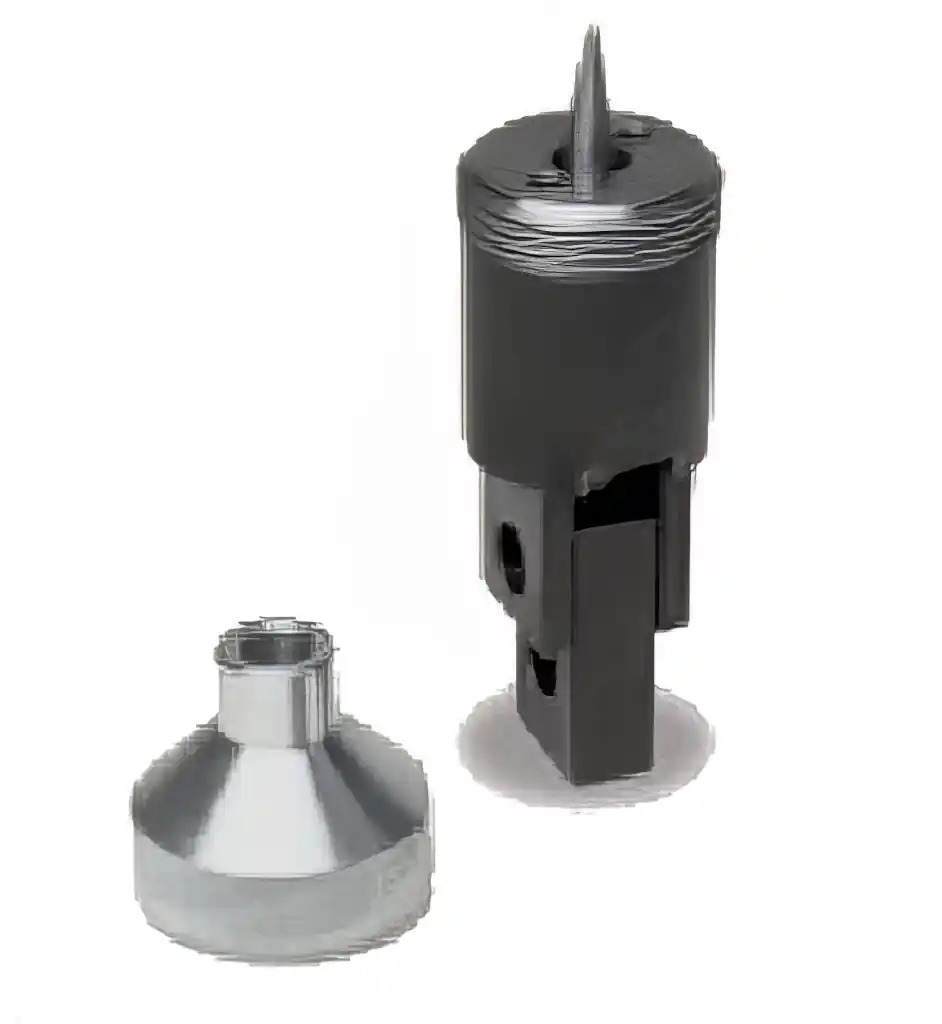

The CBC EP-Expander at a glance

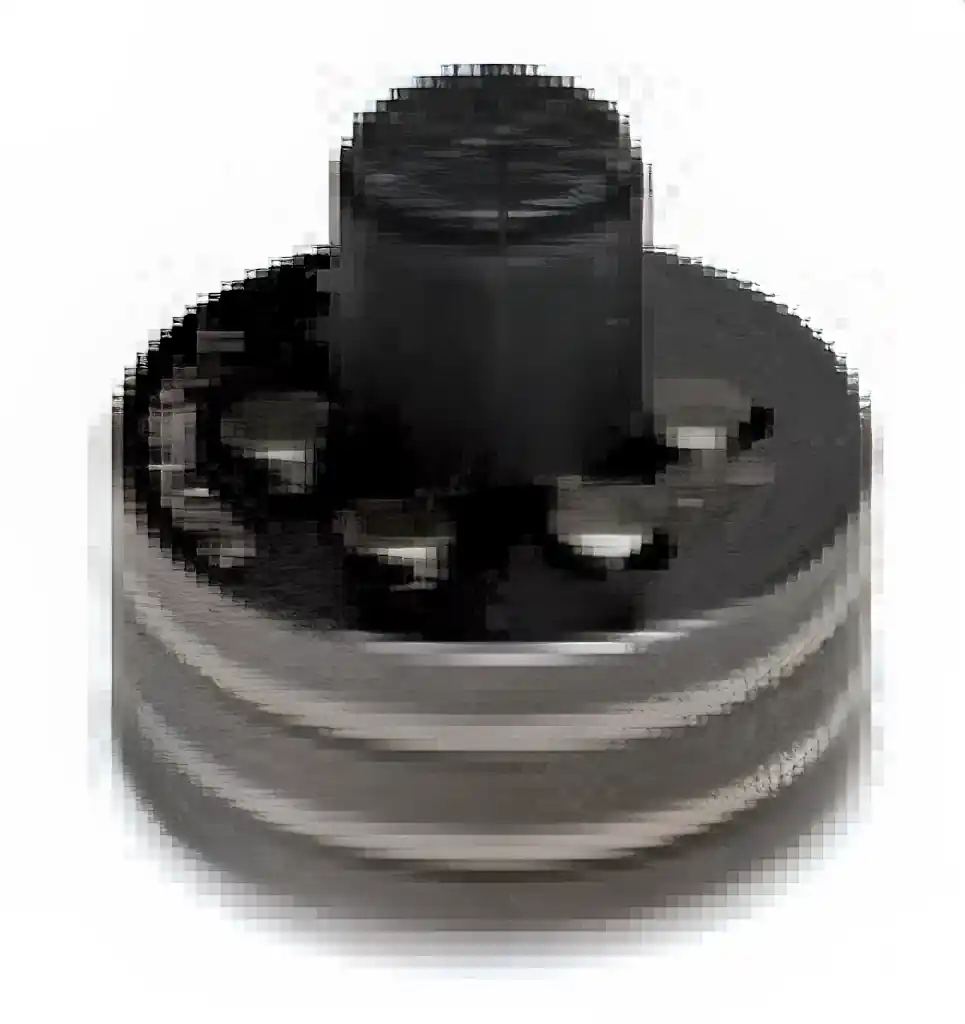

The EP-Expander is an accessory that CBC offers for its presses to expand annealed copper pipes. It works with expander bushings, one for each pipe size; CBC makes them for Ø 8 to 42 mm and for 3/8″ to 1 5/8″, each for a wall thickness of 1 mm.
The EUROPRESS 2001 and the EUROPRESS 98/B take the version 965001, the EP 3 the EP-Expander Mini 965011. The expander bushings are not included; please ask us for the sizes you need.
Technical Data
| Pipes | annealed copper, wall thickness 1 mm |
|---|---|
| Bushing sizes (metric) | Ø 8, 10, 12, 14, 15, 16, 18, 20, 22, 25, 28, 32, 35, 38, 40, 42 mm |
| Bushing sizes (inch) | 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 3/8″, 1 1/2″, 1 5/8″ |
| Scope of delivery | expander without bushings |
Versions of the CBC EP-Expander
| Version | Article no. | Suitable for |
|---|---|---|
| EP-Expander | 965001 | EUROPRESS 2001, EUROPRESS 98/B |
| EP-Expander Mini | 965011 | EP 3 |
Suitable CBC presses
The EP-Expander fits:
Manufacturer information
Manufacturer details in accordance with the EU General Product Safety Regulation (EU) 2023/988:
| Manufacturer | C.B.C. S.r.l. |
|---|---|
| Postal address | Via L. Einaudi, 3, 42016 Guastalla (RE), Italy |
| cbc@cbc.it |
