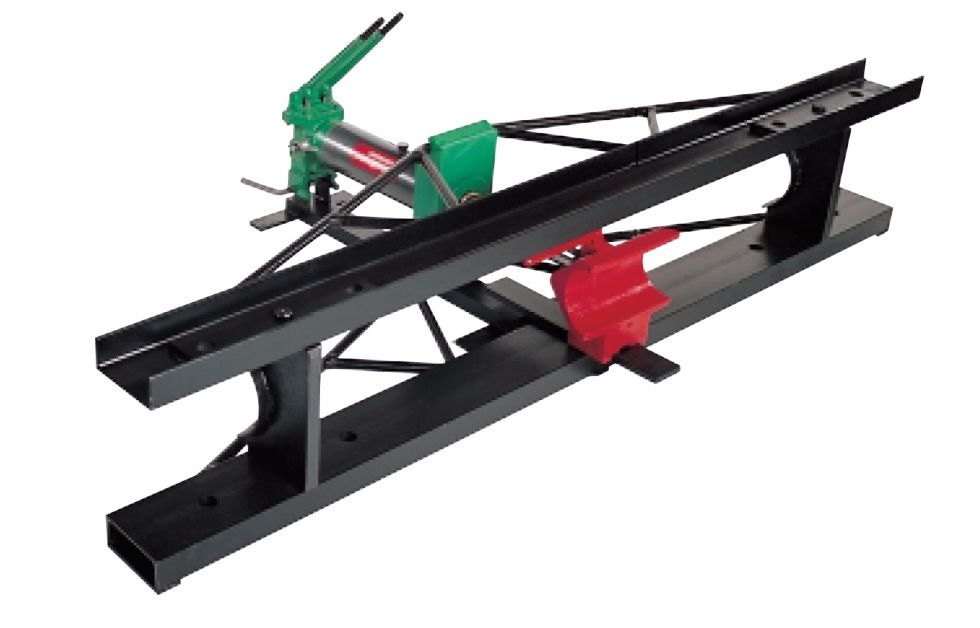

Mingori petroleum-type pipe benders at a glance
Mingori benders, designed for petroleum-type applications, are capable of pushing the bend of API and ASA pipes ranging from 4″ to 8″ (Ø 114.3 to 219 mm). These benders are also available with PE coating. A 30-ton double-acting cylinder works on a long frame, and the pipe runs on side rollers and forms. This setup allows for unlimited bending angles. The minimum bending radius is 2 m; there is no maximum.
Three models are available: the OB 50 P with a hand pump, the OBMP 150 with a 400-volt electric motor for workshops, and the OBMEP 150 with a gasoline engine for sites without power. The cylinder has two speeds: fast when advancing without a load and slow when under a load. An eccentric device releases the pipe after bending.
Technical Data
| Pipes | API and ASA, also PE-coated, 4″–8″ (Ø 114.3–219 mm) |
|---|---|
| Cylinder | double-acting, 30 t, two speeds |
| Bending angle / radius | no limit / at least 2 m |
| Max. section modulus | I/V 401 cm³ |
| Footprint | L 2.80 m × W 1.80 m × H 0.75 m |
| Forms | cast steel, 4″, 5″, 6″ and 8″ (not included) |
The three Mingori petroleum-type drives
| Version | Article no. | Drive | Weight | Wooden case |
|---|---|---|---|---|
| OB 50 P | 65 1811 | hand pump | 390 kg / 859.8 lb | 980 × 360 × 500 mm / 38.58 × 14.17 × 19.69 in |
| OBMP 150 | 65 1812 | electric motor 3000 W, 400 V | 475 kg / 1,047.2 lb | 440 × 760 × 1,200 mm / 17.32 × 29.92 × 47.24 in |
| OBMEP 150 | 65 1813 | petrol engine | 462 kg / 1,018.5 lb | 440 × 760 × 1,200 mm / 17.32 × 29.92 × 47.24 in |
Supplied with flange pair and stirrup support in a wooden case; the forms 4″ to 8″ for API/ASA or PE-coated pipes and a conversion kit for pipes 2″1/4 to 4″ are available separately. Weights as stated in the manufacturer's catalogue.
Other Mingori pipe benders for large pipes
From 2″ to 16″:
