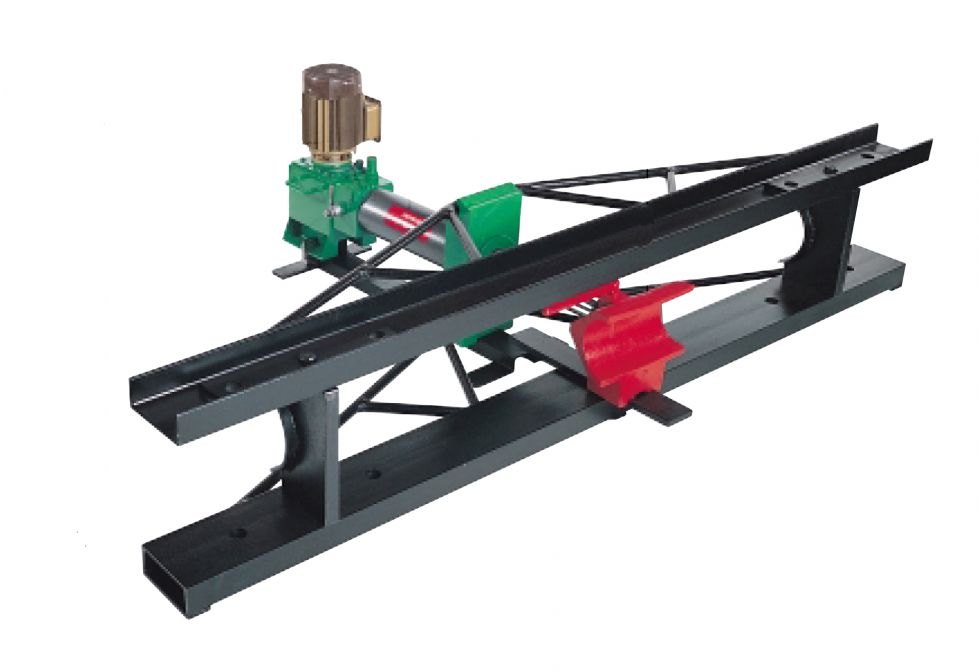

The Mingori SUPER MP 150 and SUPER MEP 150 at a glance
The SUPER MP 150 and SUPER MEP 150 are capable of bending pipes made of API and ASA materials ranging from 4″ to 16″ (Ø 114.3 to 406 mm). A double-acting hydraulic cylinder exerts 100 tons of force to press the cast-steel form into the pipe, which rests on side rollers. The bending angle is unlimited, and the minimum radius is 2 meters.
The SUPER MP 150 has a 400 V electric motor for use in workshops, while the SUPER MEP 150 has a gasoline engine and can be used on sites without a power supply. The drive automatically switches between a fast advance without load and a slow advance under load. Both machines require a footprint of 4.40 x 1.80 m.
Technical Data
| Pipes | API and ASA, 4″–16″ (Ø 114.3–406 mm) |
|---|---|
| Cylinder | double-acting hydraulic, 100 t, two speeds |
| Bending angle / radius | no limit / at least 2 m |
| Max. section modulus | I/V 1500 cm³ |
| Footprint | L 4.40 m × W 1.80 m × H 0.75 m |
| Forms | cast steel, 4″ to 16″ (not included) |
SUPER MP 150 and SUPER MEP 150
| Version | Article no. | Drive | Weight |
|---|---|---|---|
| SUPER MP 150 | 65 1814 | electric motor 3000 W, 400 V | 1,010 kg / 2,226.7 lb |
| SUPER MEP 150 | 65 1815 | petrol engine | 1,015 kg / 2,237.7 lb |
Supplied with flange pair and stirrup support in a wooden case (120 × 80 × 60 cm); forms 4″ to 16″ for API/ASA or PE-coated pipes separately. Weights as stated in the manufacturer's catalogue.
Mingori pipe benders up to 8″
For pipes from 2″ to 8″:
