The EUROPRESS 98/B at a glance

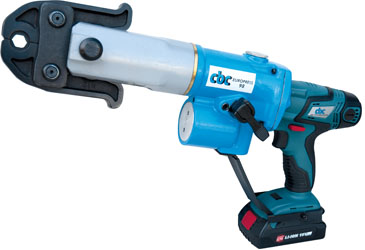

The CBC EUROPRESS 98/B can make press fitting joints without a power cord. An 18-volt lithium battery with a 2.0-ampere-hour capacity drives the hydraulic pump in the aluminum body. According to CBC, the battery lasts for about 140 pressings per charge. The battery and charger are included with every version.
The automatic press uses the same jaws as the EUROPRESS 2001, and CBC states that other available jaws fit it as well. The hardened steel jaws sit in a jaw head that rotates through 360° and are secured by a new locking pin. The machine weighs 6.3 kg.
Standard sets include the machine, the 008586 battery, the 008585 charger, three jaws of one profile, the EP-Control, and the 010098.1 PVC case. Without jaws, the machine is available with or without the case.
Technical Data
| Drive | battery motor 18 V |
|---|---|
| Battery | lithium 18 V / 2.0 Ah (008586) |
| Charger | 18 V (008585) |
| Pressings per charge | approx. 140 |
| Pump body | aluminium |
| Pressing jaws | hardened steel; jaw head rotates through 360° |
| Weight (machine) | 6.3 kg / 13.9 lb |
| Standard set | machine, battery, charger, 3 pressing jaws, EP-Control, PVC case |
Standard versions of the EUROPRESS 98/B
The 98/B sets correspond to the EUROPRESS 2001 sets; each 98/B set also includes a battery and charger. CBC does not assign a specific designation or weight to the SV sets 15-18-22 and 15-18-28.
| Version | Article no. | CBC set | Press fitting systems (CBC) | Total weight |
|---|---|---|---|---|
| G · 16, 20, 26 mm | 9670620.1 | G | Geberit Mepla | 15.1 kg / 33.3 lb |
| H · 16, 20, 26 mm | 9670730.1 | H | Roth, Valsir, Aquatechnik, Prandelli | 15.1 kg / 33.3 lb |
| H · 14, 17, 20 mm | 9670635.1 | H1 | Roth, Valsir, Aquatechnik, Prandelli | 14.5 kg / 32 lb |
| HA · 16, 20, 26 mm | 9670640.1 | HA | Velta, Polytherm, Welco-Flex, Biroduct | 15.1 kg / 33.3 lb |
| HA · 12, 16, 20 mm | 9670660.1 | HA1 | Velta, Polytherm, Welco-Flex, Biroduct | 14.6 kg / 32.2 lb |
| M · 15, 22, 28 mm | 9670680.1 | M | Mannesmann, Mapress, Chibro | 15.3 kg / 33.7 lb |
| SV · 15, 22, 28 mm | 9670700.1 | SV | Viega, Nussbaum, IBP, Frabo | 15.3 kg / 33.7 lb |
| SV · 18, 22, 28 mm | 9670710.1 | SV1 | Viega, Nussbaum, IBP, Frabo | 15.1 kg / 33.3 lb |
| SV · 15, 18, 22 mm | 9670705.1 | – | Viega, Nussbaum, IBP, Frabo | – |
| SV · 15, 18, 28 mm | 9670708.1 | – | Viega, Nussbaum, IBP, Frabo | – |
| TH · 16, 20, 26 mm | 9670760.1 | TH | Henco, Comap, Purmo, Gabotherm, Tiemme | 15.1 kg / 33.3 lb |
| TH · 16, 18, 20 mm | 9670770.1 | TH1 | Henco, Comap, Purmo, Gabotherm, Tiemme | 14.9 kg / 32.8 lb |
| U · 16, 18, 25 mm | 9670720.1 | U | Unicor, Wavin Tigris, Coes | 15.1 kg / 33.3 lb |
| U · 16, 20, 25 mm | 9670750.1 | U1 | Unicor, Wavin Tigris, Coes | 15.3 kg / 33.7 lb |
| U · 16, 20 mm + C · 26 mm | 9670740.1 | UC | U: Unicor, Wavin; C: Chemidro, Nupi | 15.1 kg / 33.3 lb |
| Machine with battery and charger | 9670600.1 | – | – | – |
| Machine with battery and charger, in case | 9670610.1 | – | – | – |
Accessories for the EUROPRESS 98/B
Matching accessories:
- CBC replacement battery 18 V / 2.0 Ah (lithium)
- CBC charger 18 V for the lithium battery
- CBC pressing jaws for the EUROPRESS with table of press fitting systems
- CBC metal cases for EUROPRESS pressing jaws
- CBC EP-Control calibration tester for the EUROPRESS
- CBC EP-Expander for annealed copper pipes
- CBC replacement PVC case 010098.1 for the EUROPRESS
Manufacturer information
Manufacturer details in accordance with the EU General Product Safety Regulation (EU) 2023/988:
| Manufacturer | C.B.C. S.r.l. |
|---|---|
| Postal address | Via L. Einaudi, 3, 42016 Guastalla (RE), Italy |
| cbc@cbc.it |
