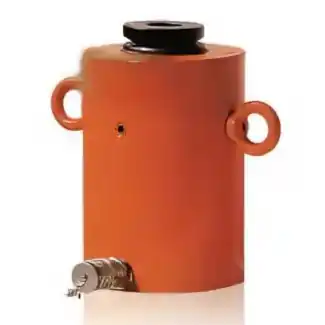

SSVH SR single-acting hydraulic cylinder with spring return, 9 to 160 t

Price on request

Cylinder model

This combination does not exist.

Single-acting cylinder with spring return – 700 bar

SSVH SR

9 to 160 t – 40 to 220 mm stroke – L or S version

SSVH SR at a glance

SSVH describes the SR range as its all-round single-acting cylinder: it combines a guide ring with a full-load stop and a return spring. The cylinders are used for lifting and pushing as well as in special machines. Nine sizes from 9 to 160 tonnes are available with strokes of 40 to 220 mm, so a suitable combination of force and stroke can be chosen for most jobs.

In the L version the piston is smooth; in the S version it is threaded and carries a safety nut that secures the load mechanically in position. The cylinder collar has an external thread (F), the base has four threaded fixing holes (E), and the oil enters through a 3/8 NPT port. The same sizes are available in light alloy as the SR.A, which weighs considerably less.

Technical Data

Operating pressure	700 bar
Force	9 to 160 t (88 to 1,589 kN)
Stroke	40 to 220 mm
Piston return	built-in spring
Versions	L: smooth piston; S: threaded piston with safety nut
Oil port	3/8 NPT
Weight	2.2 to 114 kg

Further information in our guides:

SSVH SR without safety nut (L)

Smooth piston; the closed height is the height with the piston fully retracted.

Version	Article no.	Force (kN)	Piston area (cm²)	Stroke (mm)	Oil volume (cm³)	Closed height (mm)	Weight
9 t, 40 mm	SR.9.40.L	88	12.57	40	59	117	2.2 kg / 4.9 lb
9 t, 100 mm	SR.9.100.L	88	12.57	100	140	195	3.6 kg / 7.9 lb
9 t, 160 mm	SR.9.160.L	88	12.57	160	229	260	4.8 kg / 10.6 lb
14 t, 40 mm	SR.14.40.L	137	19.63	40	93	128	3.4 kg / 7.5 lb
14 t, 100 mm	SR.14.100.L	137	19.63	100	224	193	5 kg / 11 lb
14 t, 160 mm	SR.14.160.L	137	19.63	160	355	258	6.6 kg / 14.6 lb
14 t, 200 mm	SR.14.200.L	137	19.63	200	442	303	7.8 kg / 17.2 lb
20 t, 40 mm	SR.20.40.L	198	28.27	40	150	138	5.2 kg / 11.5 lb
20 t, 100 mm	SR.20.100.L	198	28.27	100	344	202	7.4 kg / 16.3 lb
20 t, 160 mm	SR.20.160.L	198	28.27	160	538	262	9.5 kg / 20.9 lb
20 t, 220 mm	SR.20.220.L	198	28.27	220	733	322	11.6 kg / 25.6 lb
40 t, 40 mm	SR.40.40.L	397	56.74	40	293	144	10.3 kg / 22.7 lb
40 t, 100 mm	SR.40.100.L	397	56.74	100	684	211	14.6 kg / 32.2 lb
40 t, 160 mm	SR.40.160.L	397	56.74	160	1,070	271	18.4 kg / 40.6 lb
40 t, 220 mm	SR.40.220.L	397	56.74	220	1,455	331	22.2 kg / 48.9 lb
60 t, 40 mm	SR.60.40.L	606	86.59	40	476	151	16.9 kg / 37.3 lb
60 t, 100 mm	SR.60.100.L	606	86.59	100	1,090	218	24 kg / 52.9 lb
60 t, 160 mm	SR.60.160.L	606	86.59	160	1,693	278	30 kg / 66.1 lb
60 t, 220 mm	SR.60.220.L	606	86.59	220	2,295	338	36 kg / 79.4 lb
80 t, 40 mm	SR.80.40.L	792	113.1	40	623	161	23.1 kg / 50.9 lb
80 t, 100 mm	SR.80.100.L	792	113.1	100	1,413	226	31.4 kg / 69.2 lb
80 t, 160 mm	SR.80.160.L	792	113.1	160	2,180	286	38.9 kg / 85.8 lb
80 t, 220 mm	SR.80.220.L	792	113.1	220	2,966	351	47.2 kg / 104.1 lb
100 t, 40 mm	SR.100.40.L	1,077	153.9	40	890	172	31.5 kg / 69.4 lb
100 t, 100 mm	SR.100.100.L	1,077	153.9	100	2,000	232	41.5 kg / 91.5 lb
100 t, 160 mm	SR.100.160.L	1,077	153.9	160	3,030	292	51.5 kg / 113.5 lb
100 t, 220 mm	SR.100.220.L	1,077	153.9	220	4,150	362	63.5 kg / 140 lb
125 t, 40 mm	SR.125.40.L	1,237	176.7	40	979	175	37 kg / 81.6 lb
125 t, 100 mm	SR.125.100.L	1,237	176.7	100	2,193	235	49 kg / 108 lb
125 t, 160 mm	SR.125.160.L	1,237	176.7	160	3,406	295	61 kg / 134.5 lb
125 t, 220 mm	SR.125.220.L	1,237	176.7	220	4,645	365	75 kg / 165.3 lb
160 t, 40 mm	SR.160.40.L	1,589	227	40	1,369	184	50 kg / 110.2 lb
160 t, 100 mm	SR.160.100.L	1,589	227	100	2,936	244	65 kg / 143.3 lb
160 t, 160 mm	SR.160.160.L	1,589	227	160	4,504	304	80 kg / 176.4 lb
160 t, 220 mm	SR.160.220.L	1,589	227	220	6,105	374	98 kg / 216.1 lb

Data from the SSVH data sheet SR. Other forces and strokes on request.

SSVH SR with safety nut (S)

Threaded piston with safety nut; closed height including the nut.

Version	Article no.	Force (kN)	Piston area (cm²)	Stroke (mm)	Oil volume (cm³)	Closed height (mm)	Weight
9 t, 40 mm	SR.9.40.S	88	12.57	40	59	133	2.5 kg / 5.5 lb
9 t, 100 mm	SR.9.100.S	88	12.57	100	140	211	3.9 kg / 8.6 lb
9 t, 160 mm	SR.9.160.S	88	12.57	160	229	276	5.1 kg / 11.2 lb
14 t, 40 mm	SR.14.40.S	137	19.63	40	93	148	4 kg / 8.8 lb
14 t, 100 mm	SR.14.100.S	137	19.63	100	224	213	5.6 kg / 12.3 lb
14 t, 160 mm	SR.14.160.S	137	19.63	160	355	278	7.2 kg / 15.9 lb
14 t, 200 mm	SR.14.200.S	137	19.63	200	442	323	8.4 kg / 18.5 lb
20 t, 40 mm	SR.20.40.S	198	28.27	40	150	166	6.3 kg / 13.9 lb
20 t, 100 mm	SR.20.100.S	198	28.27	100	344	230	8.5 kg / 18.7 lb
20 t, 160 mm	SR.20.160.S	198	28.27	160	538	290	10.6 kg / 23.4 lb
20 t, 220 mm	SR.20.220.S	198	28.27	220	733	350	12.7 kg / 28 lb
40 t, 40 mm	SR.40.40.S	397	56.74	40	293	179	12.3 kg / 27.1 lb
40 t, 100 mm	SR.40.100.S	397	56.74	100	684	246	16.6 kg / 36.6 lb
40 t, 160 mm	SR.40.160.S	397	56.74	160	1,070	306	20.4 kg / 45 lb
40 t, 220 mm	SR.40.220.S	397	56.74	220	1,455	366	24.2 kg / 53.4 lb
60 t, 40 mm	SR.60.40.S	606	86.59	40	476	194	20.6 kg / 45.4 lb
60 t, 100 mm	SR.60.100.S	606	86.59	100	1,090	261	27.7 kg / 61.1 lb
60 t, 160 mm	SR.60.160.S	606	86.59	160	1,693	321	33.7 kg / 74.3 lb
60 t, 220 mm	SR.60.220.S	606	86.59	220	2,295	381	39.7 kg / 87.5 lb
80 t, 40 mm	SR.80.40.S	792	113.1	40	623	209	28.5 kg / 62.8 lb
80 t, 100 mm	SR.80.100.S	792	113.1	100	1,413	274	36.8 kg / 81.1 lb
80 t, 160 mm	SR.80.160.S	792	113.1	160	2,180	334	44.3 kg / 97.7 lb
80 t, 220 mm	SR.80.220.S	792	113.1	220	2,966	399	52.6 kg / 116 lb
100 t, 40 mm	SR.100.40.S	1,077	153.9	40	890	214	40.7 kg / 89.7 lb
100 t, 100 mm	SR.100.100.S	1,077	153.9	100	2,000	274	50.8 kg / 112 lb
100 t, 160 mm	SR.100.160.S	1,077	153.9	160	3,030	334	60.8 kg / 134 lb
100 t, 220 mm	SR.100.220.S	1,077	153.9	220	4,150	404	72.7 kg / 160.3 lb
125 t, 40 mm	SR.125.40.S	1,237	176.7	40	979	223	48.3 kg / 106.5 lb
125 t, 100 mm	SR.125.100.S	1,237	176.7	100	2,193	283	60.3 kg / 132.9 lb
125 t, 160 mm	SR.125.160.S	1,237	176.7	160	3,406	343	72.4 kg / 159.6 lb
125 t, 220 mm	SR.125.220.S	1,237	176.7	220	4,645	413	86.6 kg / 190.9 lb
160 t, 40 mm	SR.160.40.S	1,589	227	40	1,369	248	71 kg / 156.5 lb
160 t, 100 mm	SR.160.100.S	1,589	227	100	2,936	308	81 kg / 178.6 lb
160 t, 160 mm	SR.160.160.S	1,589	227	160	4,504	368	96 kg / 211.6 lb
160 t, 220 mm	SR.160.220.S	1,589	227	220	6,105	438	114 kg / 251.3 lb

Data from the SSVH data sheet SR. Other forces and strokes on request.

Dimensions of the SSVH SR (letters as in the SSVH dimension drawing, mm)

Size	A – piston Ø	B	C	D – piston thread	E – fixing holes in base	F – collar thread	G – oil port	I	K	M	N
9 t	40	58	35	M20 × 2	4 × M6, 9 deep, on Ø 48	M58 × 2	3/8 NPT	22	25	5	8
14 t	50	70	43	M20 × 2	4 × M8, 11 deep, on Ø 55	M70 × 2	3/8 NPT	22	28	8	8
20 t	60	83	53	M34 × 2	4 × M10, 14 deep, on Ø 65	M83 × 2	3/8 NPT	22	35	10	10
40 t	85	113	75	M44 × 2	4 × M10, 14 deep, on Ø 95	M113 × 2	3/8 NPT	22	40	10	10
60 t	105	142	95	M50 × 2	4 × M10, 14 deep, on Ø 115	M142 × 2	3/8 NPT	22	45	10	10
80 t	120	159	110	M55 × 2	4 × M12, 16 deep, on Ø 130	M159 × 3	3/8 NPT	28	55	12	10
100 t	140	186	127	M64 × 2	4 × M14, 16 deep, on Ø 160	M186 × 3	3/8 NPT	28	60	12	10
125 t	150	199	140	M74 × 2	4 × M14, 16 deep, on Ø 170	M199 × 3	3/8 NPT	28	60	14	12
160 t	170	226	155	M84 × 2	4 × M16, 19 deep, on Ø 190	M226 × 3	3/8 NPT	31	70	15	15
