The CBC 392-N at a glance

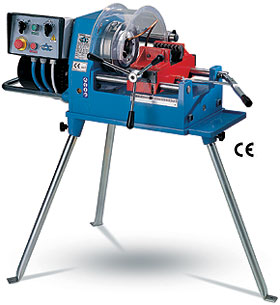

The CBC 392-N cuts threads on metal pipes and solid bars ranging from 1/4″ to 2″ GAS. It is equipped with a rotating head and a self-centering vise that clamps the pipe or bar. The vice slides on cylindrical guides and feeds the workpiece coaxially into the die head. Its stroke is 170 mm.
The lubrication and cooling systems operate in a closed circuit. The built-in tank has a double filter for the coolant-lubricant. The machine is fitted with a control panel and a protective screen. The die head has a 70 mm bore and turns at 25 rpm in first gear.
CBC supplies the 392-N with either a three-phase motor (400 V, two speeds) or a single-phase motor (230 V, one speed). Special motors are available upon request. The machine stands on its own 950-mm-high stand and weighs 95 kg. Complete versions include BSPT chasers for 1/2″–3/4″ and 1″–2″.
Technical Data
| Range | pipes and bars 1/4″ to 2″ GAS |
|---|---|
| Three-phase motor (400 V versions) | 400 V / 50 Hz, 2 speeds, 1.9/1.4 kW, 2830/1400 rpm |
| Single-phase motor (230 V versions) | 230 V / 50 Hz, 1 speed, 1.1 kW, 1435 rpm |
| Die head speed (1st gear) | 25 rpm |
| Die head bore | 70 mm / 2.76 in |
| Vice stroke | 170 mm / 6.69 in |
| Lubrication and cooling | closed circuit, built-in tank with double filter |
| Dimensions (L × W) | 880 × 330 mm / 34.65 × 12.99 in |
| Height without stand | 380 mm / 14.96 in |
| Height with stand | 950 mm / 37.4 in |
| Weight | 95 kg / 209.4 lb |
| Optional | trolley with cabinet; self-opening left-hand die head; dies BSPP, NPT, BSW, MA, HSS and left-hand |
Threading capacity of the CBC 392-N
| Thread | Min. Ø | Max. Ø |
|---|---|---|
| Gas tapered (BSPT) | 1/4″ | 2″ |
| Gas cylindrical (BSPP) | 1/4″ | 2″ |
| American tapered (NPT) | 1/4″ | 2″ |
| Whitworth (BSW) | 5/16″ | 1″1/2 |
| Metric (MA) | 6 mm | 39 mm |
Versions of the CBC 392-N
| Version | Article no. | Motor | Scope of delivery |
|---|---|---|---|
| 400 V with dies | 9400065.1 | 400 V three-phase, 2 speeds | BSPT dies 1/2″–2″ right-hand, stand, pump, screen |
| 230 V with dies | 9400075.1 | 230 V single-phase, 1 speed | BSPT dies 1/2″–2″ right-hand, stand, pump, screen |
| 400 V without dies | 9400060.1 | 400 V three-phase, 2 speeds | machine with pump and screen, without dies |
| 230 V without dies | 9400070.1 | 230 V single-phase, 1 speed | machine with pump and screen, without dies |
Accessories for the CBC 392-N
Matching accessories and related CBC machines:
