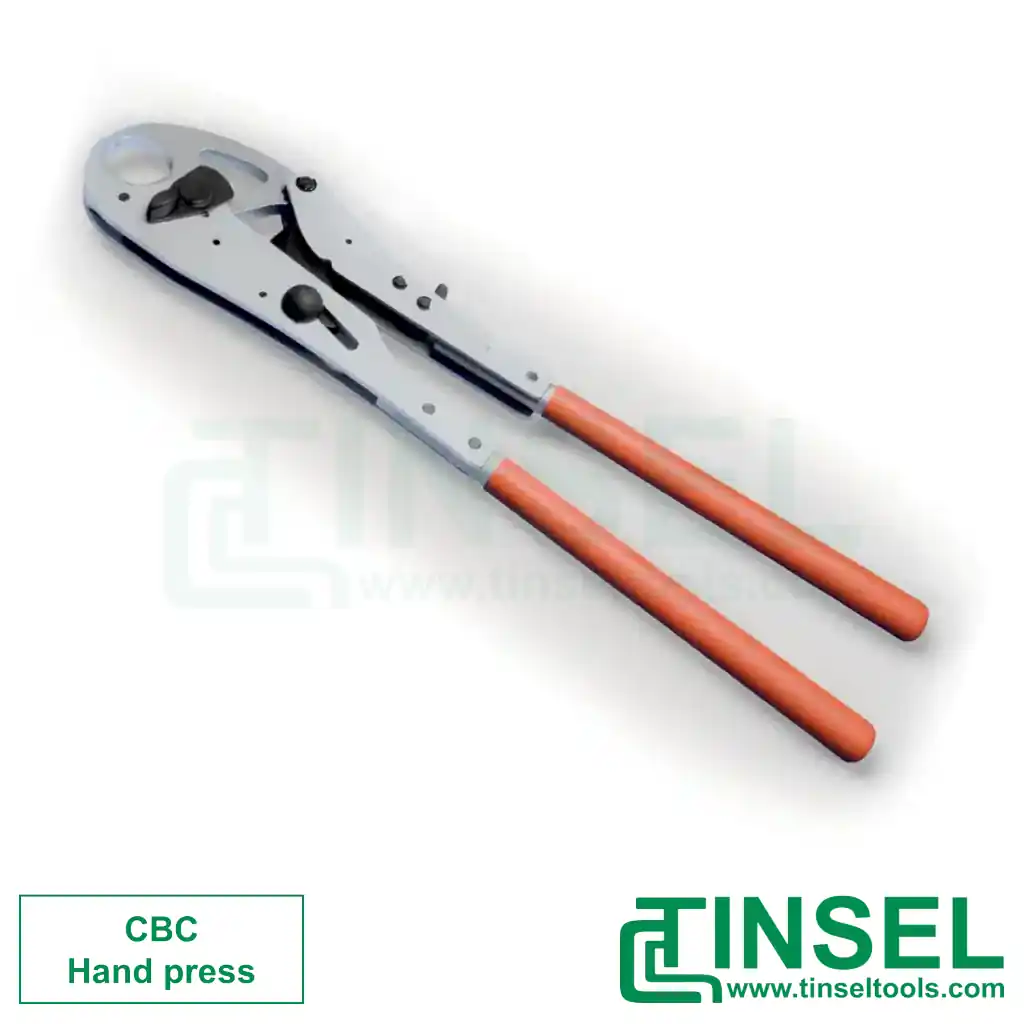

CBC hand press (H, TH, U)

https://tinseltools.com/web/image/product.template/263/image_1920?unique=281087b

Delivery Time: 5 -15 working days
 The delivery time may vary outside the EU.
For orders of more than 10 items, delivery times may be extended.
The price does not include shipping costs (will be added in the shopping cart)

1,183.41 € 1183.41 EUR 1,183.41 € VAT Included

Price on request

  • Inserts incl.

This combination does not exist.

Contact Us


Manual Press for Press Fittings

Hand Press

CBC logo

Up to Ø 26 mm – Profiles H, TH, U – Metal Case



The CBC hand press at a glanceStandard versions of the CBC hand pressAccessories for the CBC hand pressManufacturer information

The CBC hand press at a glance

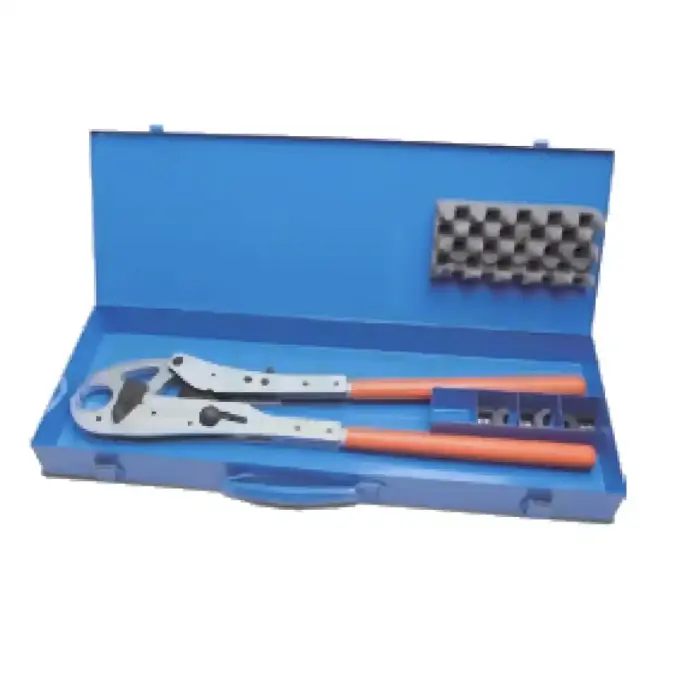

The CBC hand press makes press fitting joints purely by hand, without mains power or battery. Interchangeable insert pairs form the press contour, and the press handles fittings up to a pipe diameter of 26 mm. It is supplied in a metal case.

The press is offered in four standard sets with insert pairs of one profile – H, U or TH, the latter with five or three pairs. Single insert pairs for extending a set are available separately.

Technical Data

Max. pressing diameter26 mm / 1.02 in
Drivemanual
Insertsinterchangeable pairs, profiles H, TH, U
Casemetal case (010140)
Weight of the set3.8 kg (H, U); 4.0 kg (TH, 5 pairs)

Insert profiles and press fitting systems

ProfilePress fitting systems (CBC)Insert pairs Ø (mm)
HRoth H, Valsir, Aquatechnik, Prandelli16, 18, 20, 26
THHenco, Brasstech, Bucchi, Comap, Purmo Sitec Press, Gabotherm, Tiemme, Cobrapress, Comisa14, 16, 18, 20, 26

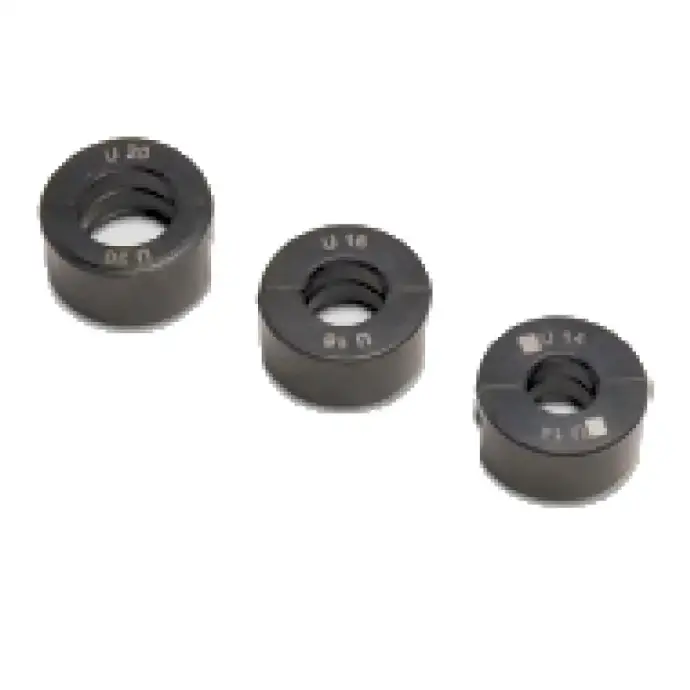

UUnicor Unipipe, Wavin Tigris, Coes14, 16, 20, 25

Standard versions of the CBC hand press

VersionArticle no.Insert pairs (mm)CaseWeight
Set H9640075H 16, 18, 20, 26metal case3.8 kg / 8.4 lb
Set TH, 5 pairs9640050TH 14, 16, 18, 20, 26metal case4 kg / 8.8 lb
Set TH, 3 pairs9640055TH 16, 20, 26metal case–
Set U9640025U 14, 16, 20, 25metal case3.8 kg / 8.4 lb

Accessories for the CBC hand press

Matching accessories:

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Manufacturer information

Manufacturer details in accordance with the EU General Product Safety Regulation (EU) 2023/988:

ManufacturerC.B.C. S.r.l.
Postal addressVia L. Einaudi, 3, 42016 Guastalla (RE), Italy
