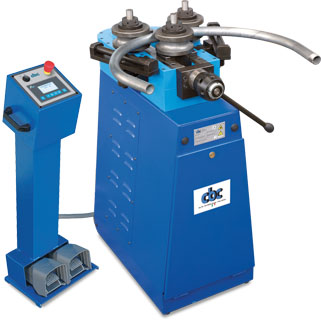

The UNI 60 COMBI-CAL at a glance
The CBC UNI 60 COMBI-CAL is a two-in-one machine. As a pipe bender, it can bend metal pipes without a mandrel from 0° to 180°. As a ring roller, it can roll pipes, profiles, and flat bars into arcs and rings. During the bending process, the geared motor turns the former on the output shaft clockwise by a programmable amount corresponding to the desired pipe angle.
A 1.5 kW asynchronous motor (230 V/50 Hz, 2,800 RPM; other voltages available upon request) with an electric brake drives the cast-iron machine on its steel base. The machine weighs 170 kg. In pipe bending mode, the multilingual touchscreen sets and controls the bending angle, compensates for springback, and stores up to 50 programs, each with up to nine sequential angles. The control board runs on 24 volts.
The following items are included for both jobs: a square interchangeable shaft (Ø 32), a quick guide positioning device, two ring rolling shafts (Ø 40), three universal rollers for profiles and flat bars, two lateral supports for setting the height of the workpiece, a foot pedal, and a base. Rollers for round pipes are available as accessories.
Technical Data
| Article no. | 9200445 |
|---|---|
| Drive | asynchronous motor 1.50 kW, 2,800 rpm |
| Power supply | 230 V / 50 Hz (other voltages on request) |
| Control | digital touchscreen control, multilingual; control board 24 V |
| Program memory (pipe bending) | 50 programs with up to 9 bending angles each |
| Brake | electric brake |
| Max. bending angle | 180° |
| Standard bending radii | 3D and 4D |
| Body | cast iron on steel base |
| Dimensions L × W × H | 780 × 430 × 1,000 mm / 30.71 × 16.93 × 39.37 in |
| Weight | 170 kg / 374.8 lb |
| Standard version | 230 V / 50 Hz, square interchangeable shaft Ø 32, quick guide positioning device, 2 ring rolling shafts Ø 40, 3 universal rollers, 2 lateral supports, foot pedal, base |
Ring rolling capacity of the UNI 60 COMBI-CAL
| Workpiece | Max. size | Max. wall / thickness |
|---|---|---|
| Gas pipe | 1"1/2 | 3.2 mm / 0.13 in |
| Square tube | 40 × 40 mm / 1.57 × 1.57 in | 2 mm / 0.08 in |
| Rectangular tube | 50 × 25 mm / 1.97 × 0.98 in | 2.5 mm / 0.1 in |
| Round bar | 20 mm / 0.79 in | – |
| Square bar | 20 mm / 0.79 in | – |
| Flat bar | 50 × 8 mm / 1.97 × 0.31 in | – |
| L profile | 40 × 40 mm / 1.57 × 1.57 in | 3 mm / 0.12 in |
| T profile | 40 × 40 mm / 1.57 × 1.57 in | 5 mm / 0.2 in |
| U profile | 30 × 15 mm / 1.18 × 0.59 in | 4 mm / 0.16 in |
Special diameters and radii on request.
Pipe bending capacity of the UNI 60 COMBI-CAL
The UNI 60 COMBI-CAL pipe bender can handle copper and aluminum pipes up to 54 mm, steel conduit up to 50 mm, and hydraulic, furniture, and boiler pipes up to 48 mm, as well as stainless steel up to 35 × 3 mm. It bends gas pipes up to 1 1/2″ and multilayer pipes up to 63 mm, each with a standard wall thickness.
Maximum bending angle: 180°, without mandrel.
Standard bending radii: 3D and 4D.
Bending capacity by pipe material
| Pipe material | Max. outside diameter | Max. wall thickness |
|---|---|---|
| Hard and Soft Copper Pipes, Annealed Brass Pipes | 54 mm / 2.13 in | 2 mm / 0.08 in |
| Steel Pipes for Electrical Installations | 50 mm / 1.97 in | 1.5 mm / 0.06 in |
| Stainless Steel AISI 304/316 Pipes | 35 mm / 1.38 in | 3 mm / 0.12 in |
| Hydraulic Steel Pipes St 35.4 | 48 mm / 1.89 in | 4 mm / 0.16 in |
| Furniture Tubes | 48 mm / 1.89 in | 3 mm / 0.12 in |
| FE Boiler Pipes | 48 mm / 1.89 in | 3 mm / 0.12 in |
| Aluminium Pipes | 54 mm / 2.13 in | 3 mm / 0.12 in |
| Gas Pipes UNI 5745 | 1"1/2 | standard |
| Multilayer Pipes (Double-Coated Aluminium) | 63 mm / 2.48 in | standard |
Special diameters and bending radii on request.
Further information in our guides:
- Pipe materials for tube bending – an overview
- The bending radius in tube bending – the ultimate guide
Accessories for the UNI 60 COMBI-CAL
Matching accessories:
- Cast iron formers type C (mm) for CBC UNI machines
- Counterformers and counter rollers of the UNI 60 – also for the COMBI-CAL
- Reduced shaft for bending radii below 30 mm
- Counterformer support reduction for small diameters
- Swivel arm with floor adjustment for the UNI 60 COMBI-CAL
- Ring rolling accessories for the UNI 60 COMBI-CAL
