Description
The FLEX 22 and FLEX 22V are compact, portable electric pipe bending machines designed for accurately bending copper, stainless steel, hydraulic steel, gas and plastic-coated tubes. Their lightweight aluminium construction makes them particularly suitable for installation, maintenance and repair work where pipes must be bent directly on site.
Both machines can produce bends of up to 180° and are equipped with a 400 W double-insulated electric motor. An included tube-expanding attachment also allows annealed soft copper tubes with diameters of up to 42 mm to be expanded using commonly available expander heads.
The FLEX 22V provides the same portable bending and expanding functionality as the FLEX 22, but adds an integrated digital bending-angle display. The display shows the current bending angle during operation, helping the operator reach the required angle more accurately and reproduce bends more consistently.
Portable pipe bending for installation, maintenance and workshop use
With a weight of only 7.5 kg for the FLEX 22 and 8 kg for the FLEX 22V, the machines can be transported easily between a workshop, construction site and installation location. Unlike large stationary pipe bending machines, the FLEX models are designed for applications where mobility, limited working space and fast setup are important.
The machines are suitable for professionals working with:
- Plumbing and sanitary installations
- Heating and building services
- Refrigeration and air-conditioning systems
- Hydraulic pipe installations
- Industrial maintenance
- Plant and machine construction
- Stainless steel tube installations
- Gas pipe installations
- Copper pipework
- On-site repair and modification work
The combination of electric bending and tube-end expansion makes the FLEX 22 and FLEX 22V particularly useful when pipe bends and expanded tube connections must be produced with a single portable machine.+
FLEX 22 or FLEX 22V: what is the difference?
The two versions have the same general bending capacity, motor power and tube-expanding capability. The primary difference is the bending-angle display fitted to the FLEX 22V.
| Feature | FLEX 22 | FLEX 22V |
|---|---|---|
| Portable electric pipe bending | Yes | Yes |
| Maximum bending angle | 180° | 180° |
| Motor power | 400 W | 400 W |
| No-load/load speed according to manufacturer | 0–650 rpm | 0–650 rpm |
| Aluminium body | Yes | Yes |
| Tube-expanding attachment | Included | Included |
| Expansion of annealed copper tube | Up to Ø 42 mm | Up to Ø 42 mm |
| Bending-angle display | No | Yes |
| Display power supply | – | Four 1.5 V batteries |
| Machine weight | 7.5 kg | 8 kg |

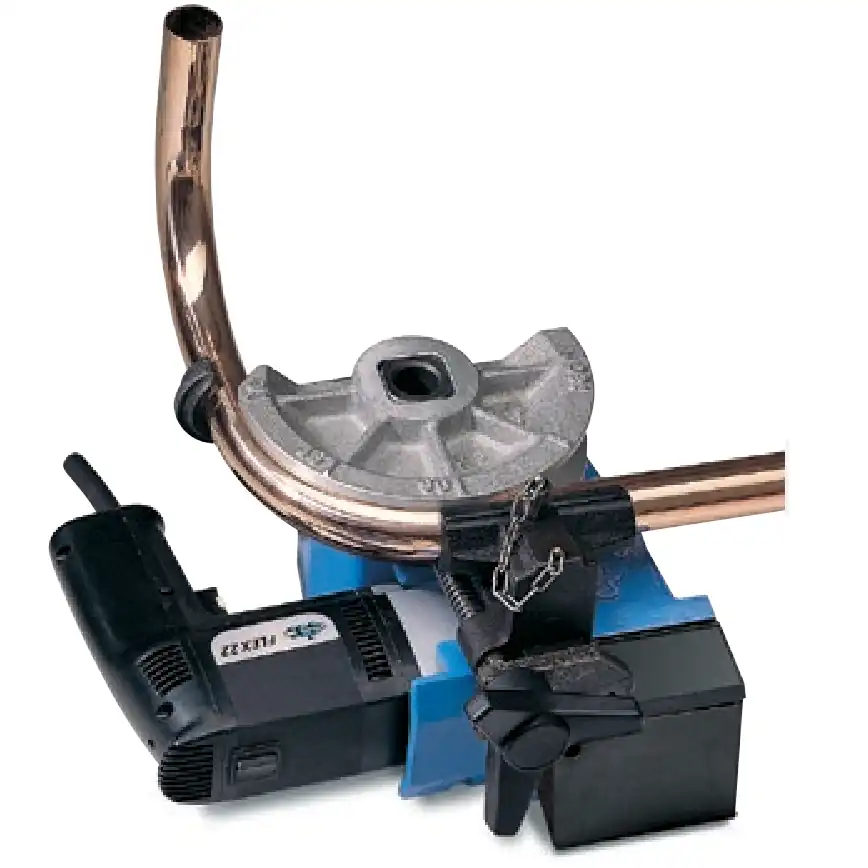

FLEX 22
The FLEX 22 portable pipe bender is the lighter and simpler version. It is intended for users who require a compact electric tube bending machine without an electronic angle indicator.
It is a practical choice when bends are controlled using the tooling, markings, templates or established working procedures and when the lowest possible machine weight is preferred.
FLEX 22V
The FLEX 22V portable pipe bending machine is equipped with a digital display that shows the bending angle while the bend is being produced.
This version is especially useful when:
- A specified bending angle must be reached accurately
- Several pipes must be bent to comparable angles
- Bends must be reproduced more consistently
- The bending process must be monitored directly
- Templates or separate angle-measuring tools should be reduced
The display is powered independently by four 1.5 V batteries.
Bending Capacity
Annealed copper tear
Diameter up to 22mm
Wall thickness up to 1.5mm
Aisi 304/316 stainless steel pipes
Diameter up to 22mm
Wall thickness up to 1.5 mm
Steel composite pipes ST. 35.4 for hydraulic systems
Diameter up to 25 mm*
Wall thickness up to 3mm
Gas pipelines UNI 5745
Diameter up to 3/4" *
Wall thickness up to standard
Encased pipes type Mannesmann (plastic rivet 1 mm)
Diameter up to 32mm
Wall thickness up to 1.5mm
* Without counter shape, only universal roller
Standard versions
Type A
Incl. Suitcase
Shapes: 12, 14, 16, 18, 22
Counterforms: 10, 12, 14, 16, 18, 22
Weight: 5.7 Kg.
Type B
Incl. Suitcase
Shapes: 12, 15, 18, 22
Counterforms: 12, 15, 18, 22
Weight: 5.7 Kg.
Type C
Incl. Suitcase
Shapes: 1/2", 5/8", 3/4", 7/8"
Counterforms: 1/2", 5/8", 3/4", 7/8"
Weight: 7.5 Kg.
