Tight radii with the reduced shaft

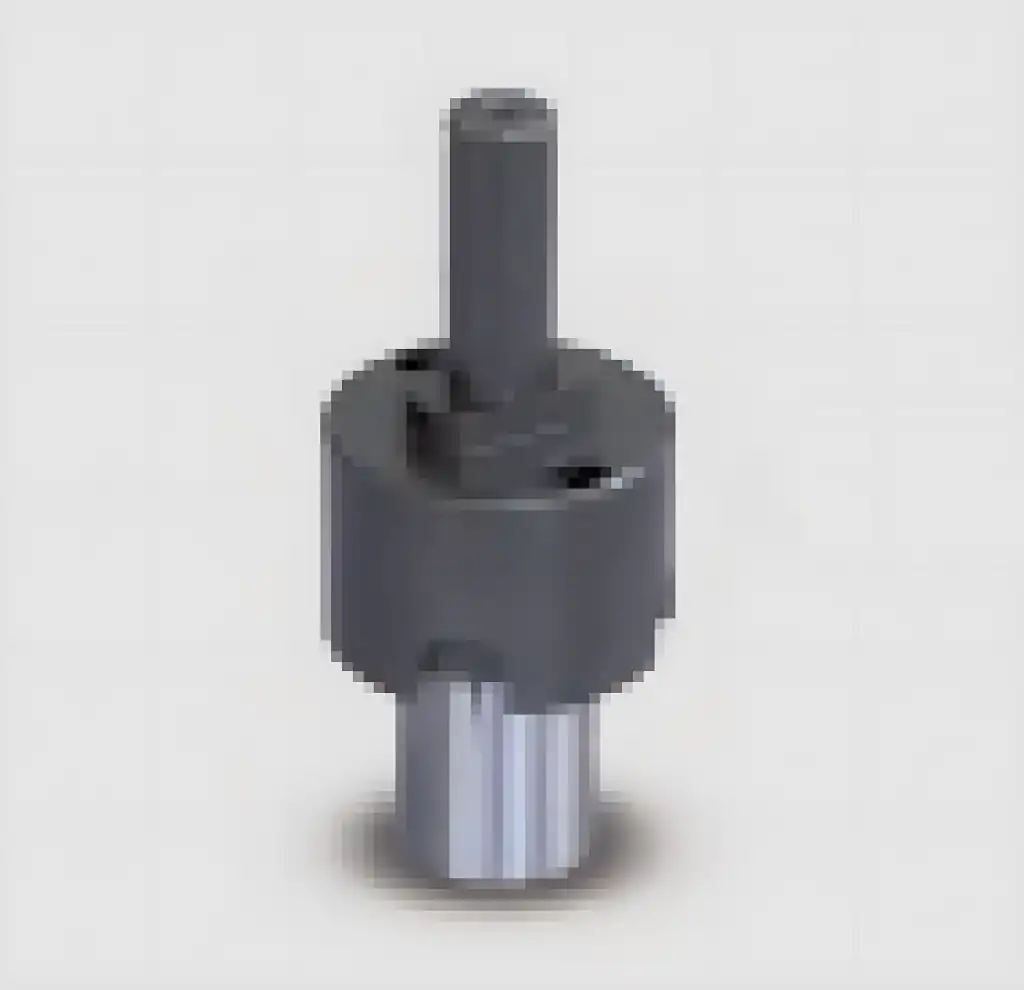

For standard radii, the UNI machines with interchangeable output shaft work with the Ø 32 mm square shaft 544455. When pipes are to be bent with radii below 30 mm, the reduced interchangeable shaft 544454 replaces it. It is used together with special formers and counterformers for the reduced shaft.
CBC supplies these formers with a ring, one per size, for pipes from Ø 6 to Ø 20 mm and the corresponding inch sizes. The shaft is intended for the UNI 60 with interchangeable shaft, the UNI 60 COMBI and the UNI 63; on the UNI 63 it is an option.
For the UNI 70/C and UNI 70/HC, the CBC price list contains a reduced shaft of its own (544500); CBC gives no further technical details for it.
Technical Data
| Application (544454) | bending radii below 30 mm, pipes Ø 6–20 mm and inch equivalents |
|---|---|
| Tooling (544454) | special formers with ring and counterformers for reduced shaft |
| Standard shaft (UNI 63) | Ø 32 mm square shaft 544455 |
Versions of the CBC reduced shaft
| Version | Article no. | Suitable for | Application |
|---|---|---|---|
| UNI 60 AI, COMBI, UNI 63 | 544454 | UNI 60 AI (interchangeable shaft), UNI 60 COMBI, UNI 63 | radii below 30 mm, pipes Ø 6–20 mm |
| UNI 70/C, UNI 70/HC | 544500 | UNI 70/C, UNI 70/HC | no details from CBC |
Suitable CBC pipe bending machines
The reduced shaft fits:
- CBC UNI 60 mobile pipe bending machine
- CBC UNI 63 digital pipe bending machine with mandrel
- CBC UNI 70/C three-phase pipe bending machine
- CBC UNI 63 digital pipe bending machine without mandrel (shaft as an option)
- CBC UNI 70/HC electro-hydraulic mandrel pipe bender
- CBC UNI 60 COMBI-CAL pipe and ring bending machine
